Flow control valves are like the traffic lights of the industrial world. Just as traffic lights control the flow of cars on busy streets, these valves control the flow of liquids, gases, and steam in pipes and systems. Whether you're pumping water, moving oil through pipelines, or controlling air pressure in machines, flow control valves make sure everything moves at just the right speed and pressure.

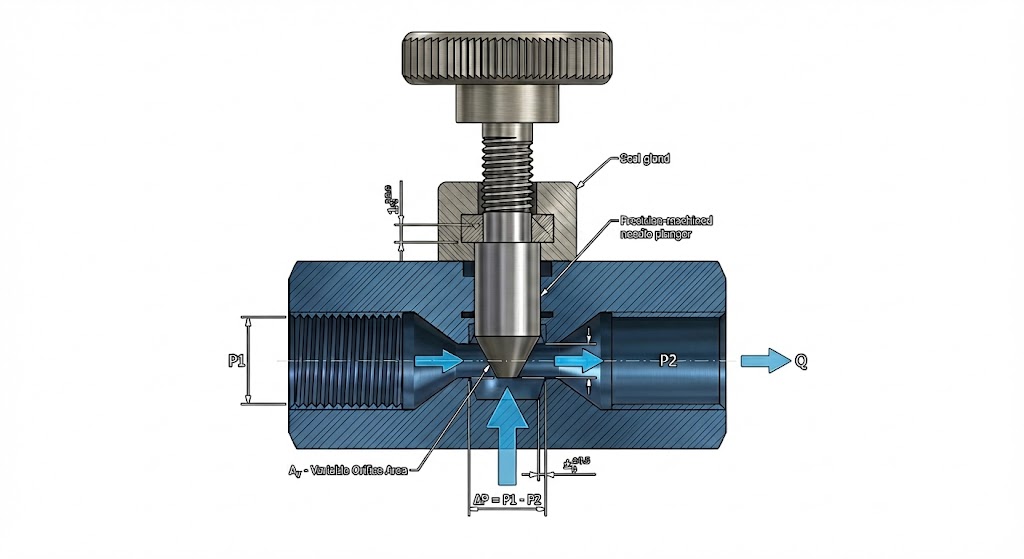

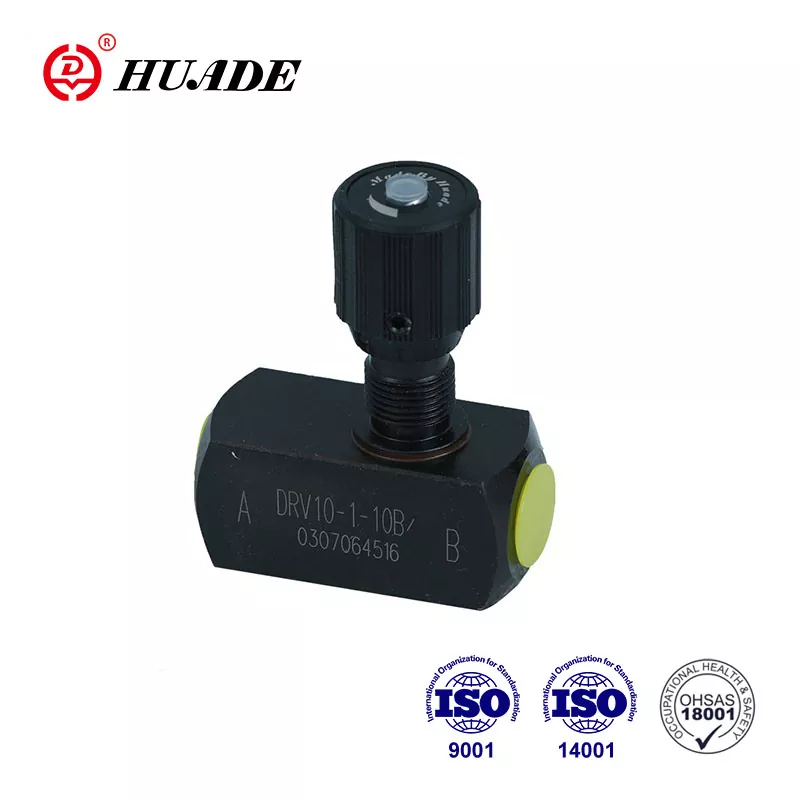

A flow control valve is a device that controls how much fluid flows through a pipe or system. Think of it like a faucet in your kitchen - you can turn it to let more or less water flow out. But flow control valves are much more precise and can work automatically without someone turning them by hand.
These valves have four main jobs:

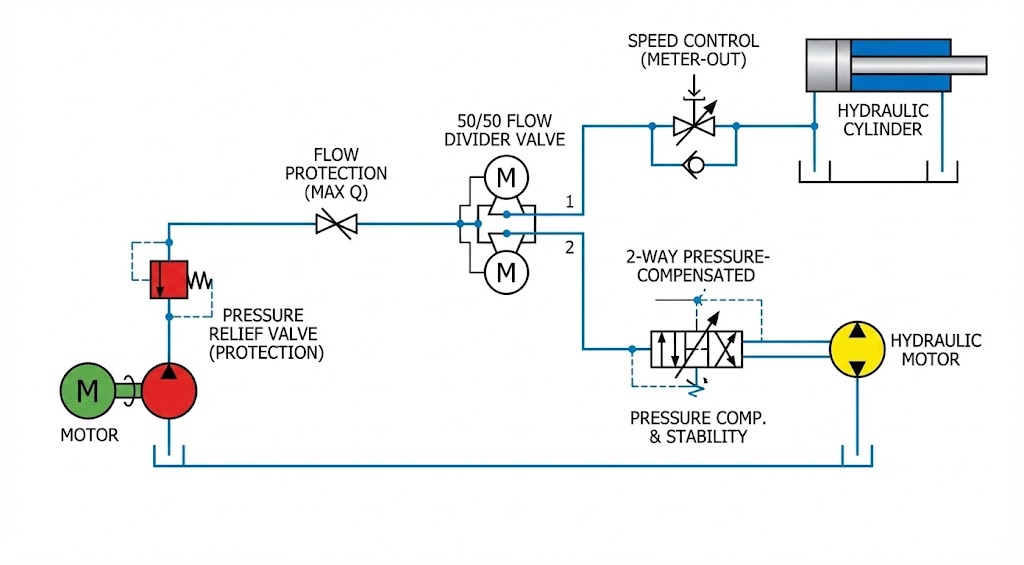

Speed Control: They control how fast things move in hydraulic systems, like the arms of construction equipment.
Flow Distribution: They split flow between different paths, like dividing water to different sprinkler zones in your yard.
Flow Protection: They prevent too much fluid from flowing, which could damage equipment.
Pressure Control: They keep the pressure in systems steady and safe.
The basic idea is simple: by making the opening smaller or larger, you can control how much fluid flows through. It's like putting your thumb over the end of a garden hose - the smaller the opening, the less water comes out (but it comes out faster).
Flow control valves work in several ways:
Fixed Opening: Some valves have a set opening size that doesn't change.
Variable Opening: Others can adjust their opening size based on conditions.
Pressure Compensation: Smart valves automatically adjust to keep flow steady even when pressure changes.
Electronic Control: Modern valves use computer signals to make very precise adjustments.
Non-Pressure Compensated Valves These are the simplest type. They have a fixed or adjustable opening, but the flow changes when pressure changes. They work best when system pressure stays fairly steady. They're cheap and simple but not very precise when conditions change.
Pressure Compensated Valves These valves are smarter. They have special parts that automatically adjust the opening to keep flow steady even when pressure changes. They're accurate to within 3-5% and work great when system pressure goes up and down a lot.
Pilot-Operated Valves These use a small "pilot" valve to control a larger main valve. They're very responsive and work well for high-flow applications where you need quick changes.
Ball Valves These have a ball with a hole through it. When you turn the ball, you can open or close the flow path. They're great for quick on/off control and seal very well. You'll find them in oil refineries and heating systems. However, they're not the best for fine flow control.
Butterfly Valves These have a disk that rotates to control flow. They're lightweight and create little pressure drop. They work well for large pipes and water systems. They're compact but don't seal perfectly at high pressures.
Needle Valves These have a pointed needle that fits into a cone-shaped seat. They give very precise control and are perfect for small, accurate adjustments. You'll see them in laboratories and analytical equipment. They're very precise but only handle small flows.
Globe Valves These are workhorses of flow control. They have good flow control ability and work in many applications like chemical plants, power plants, and oil refineries. They create more pressure drop but give excellent control.
Gate Valves These have a flat gate that slides up and down. When fully open, they create very little pressure drop. They're mainly used for on/off control, not flow control. You'll find them isolating sections of pipe systems.
Diaphragm Valves These use a flexible diaphragm to control flow. They seal perfectly and resist corrosion well. They're perfect for pharmaceutical and food processing where you can't have any leaks. They have pressure and temperature limits.
Pinch Valves These squeeze a flexible tube to control flow. They're economical and great for handling slurries with solid particles. Mining and wastewater treatment plants use them often. They're cheap but have pressure and temperature limits.
Pneumatic Actuators These use compressed air to operate the valve. They're reliable, fast, and economical. They work great where there's no electricity available and can cycle millions of times. However, they have limited power and shorter life than other types.
Electric Actuators These use electric motors (AC or DC) to operate valves. They're very efficient, clean, quiet, and precise. You can control them remotely and they save energy. They cost more initially and can overheat with frequent adjustments.
Hydraulic Actuators These use hydraulic fluid for power. They produce very high force and last a long time. They're perfect for heavy-duty applications but create complex systems with potential leak risks.
In construction equipment like excavators and bulldozers, flow control valves control how fast the arms and buckets move. They also distribute hydraulic power to different functions and keep system pressure safe.
In air-powered systems, these valves control how fast air cylinders extend and retract. They prevent jerky motion and reduce wear on equipment.
Oil and Gas: Control flow in pipelines, manage liquid levels in separation tanks, and regulate pressure throughout systems.
Water Treatment: Distribute water throughout cities, prevent overconsumption, and control treatment processes.
Chemical and Pharmaceutical: Precisely mix ingredients, control reaction rates, and maintain product quality.
Manufacturing: Control speeds in automated equipment, manage hydraulic presses, and coordinate multiple machine functions.
Food and Beverage: Control ingredient flows, manage temperatures, and maintain sanitary conditions.
Corrosive Environments: Use special materials like stainless steel to resist chemical attack.
Explosive Areas: Use explosion-proof designs certified for hazardous locations.
High Temperature/Pressure: Special designs handle extreme conditions safely.
Sanitary Applications: Meet strict cleanliness standards for food and drug production.
Choosing the right valve is like choosing the right tool for a job. You need to consider several factors:
Most valves have one of these flow patterns:
Linear: Flow increases steadily with valve opening - good for simple applications.
Equal Percentage: Flow increases exponentially - used in 90% of applications because it gives better control.
Quick Opening: Small movements create big flow changes - used for on/off applications.
Like any mechanical device, flow control valves need regular care to work properly.
Flow Issues
Leakage Problems
Performance Issues
Preventive Maintenance
Condition Monitoring
Troubleshooting Process
Technology is making flow control valves smarter and more efficient.
Smart Valve Technology
Internet of Things (IoT) Integration Modern valves include sensors for pressure, temperature, flow, and vibration. They collect data continuously and can be monitored remotely through smartphones or computers. Cloud-based systems analyze this data to provide optimization suggestions.
Artificial Intelligence Applications AI algorithms can predict when valves need maintenance before they fail. They automatically adjust valve settings based on changing conditions and can detect unusual operating patterns that might indicate problems.
Digital Twin Technology Engineers create virtual copies of physical valves that simulate performance and allow testing in virtual environments. This helps optimize designs and train operators without risking real equipment.
Industry 4.0 Integration
System Connectivity Modern valves communicate using industrial networks and process data locally for faster response. They integrate seamlessly with manufacturing execution systems and use standardized communication protocols.
Increased Automation Systems operate with minimal human intervention, coordinate multiple valves automatically, and optimize their own performance. They can even diagnose and recover from certain failures automatically.
Sustainability Trends
Energy Efficiency New designs recover energy from pressure differences, reduce system energy consumption through precise control, and optimize entire systems for maximum efficiency.
Environmental Requirements Stricter regulations demand lower emissions, sustainable materials, better recycling programs, and greener manufacturing processes.
Real-World Success Stories
Oil and Gas Industry
A major pipeline company installed smart flow control valves that eliminated manual maintenance for five years while maintaining precise control of multi-phase fluids.
Water Treatment
A city water system used 24-inch pressure-reducing valves to protect their distribution pipes while maintaining consistent water pressure throughout the city.
Manufacturing
An automotive assembly line improved production accuracy by 15% after installing pneumatic flow control valves that precisely controlled robot movements.
If you want to learn more about flow control valves, here are some great resources:
Online Learning
Professional Development
Hands-On Experience
Flow control valves are essential components that keep our modern world running smoothly. From the water coming out of your faucet to the fuel flowing through pipelines, these devices ensure everything moves at the right speed and pressure.
As technology advances, flow control valves are becoming smarter, more efficient, and more environmentally friendly. They're integrating with digital systems, predicting their own maintenance needs, and optimizing performance automatically.
Whether you're an engineer selecting valves for a new system, a technician maintaining existing equipment, or simply curious about how things work, understanding flow control valves helps you appreciate the complex systems that support our daily lives.
The future of flow control valves is bright, with innovations in smart technology, sustainability, and system integration continuing to improve performance while reducing environmental impact. By staying informed about these developments and following best practices for selection and maintenance, we can ensure these critical components continue to serve us well for years to come.
-
