Yes, butterfly valves can be used for flow control, but with important qualifications. While they're traditionally known as isolation devices, modern high-performance butterfly valves serve effectively as throttling valves in many industrial applications. The key is understanding their operational sweet spot—typically between 30° and 70° opening—and matching the valve design to your specific requirements.
Understanding Butterfly Valve Flow Characteristics
The fundamental question isn't whether butterfly valves can control flow, but rather how their flow characteristics compare to dedicated control valves like globe valves.
The Quick-Opening NatureButterfly valves exhibit "quick-opening" behavior. In the initial range (0°-30°), small angle changes produce large flow changes, making precise control difficult. Between 30° and 70°, the response stabilizes into a linear region effective for throttling. Beyond 70°, flow saturates with poor controllability.
Flow Coefficient (Cv) AdvantageA butterfly valve typically delivers 2-3 times the flow capacity of a globe valve of the same size. This allows using smaller valves (e.g., DN200 instead of DN300) to reduce costs.
| Valve Type | Typical Cv (Full Open) | Flow Characteristics |
|---|---|---|
| Globe Valve | ~400 | Linear, high pressure drop |
| V-Port Ball Valve | ~800 | Characterized, moderate drop |
| High Performance Butterfly | ~1350 | Quick-opening, minimal drop |
Mechanical Design Evolution for Control Applications
The suitability for control depends heavily on mechanical configuration:
- Concentric (Zero-Offset): Stem passes through disc center. Friction is continuous, causing hysteresis. Suitable only for coarse HVAC/water control.
- Double-Offset (High Performance): "Lift-off" cam action reduces friction in the 20°-80° range. ideal for general industrial throttling.
- Triple-Offset (TOV): Completely frictionless operation with metal-to-metal sealing. Handles extreme temperatures (500°C+) and pressures, competing with globe valves.

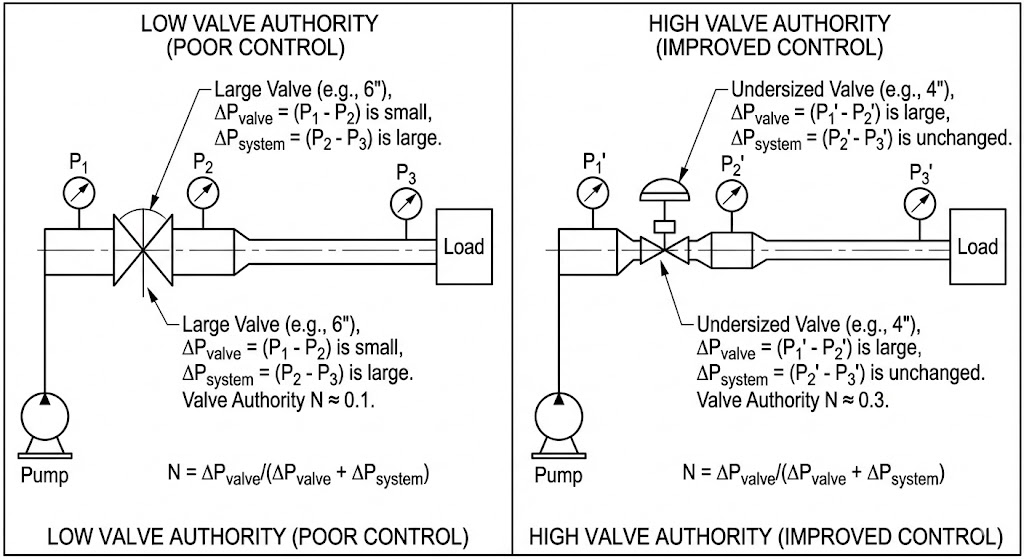

Critical Sizing Considerations for Throttling Service
Common mistakes stem from treating butterfly valves like isolation valves rather than control elements.
Valve authority ($N$) describes the valve's control influence: $$ N = \frac{\Delta P_{valve}}{\Delta P_{valve} + \Delta P_{system}} $$ Due to low pressure drop, butterfly valves often have authority < 0.1, distorting control characteristics. Solution: Undersize the valve (1-2 sizes smaller than pipe) to ensure authority > 0.3.
Cavitation and Choked Flow Risks
Butterfly valves are high-recovery valves ($F_L \approx 0.55-0.70$), making them vulnerable to cavitation. The cavitation index ($\sigma$) predicts severity:
$$ \sigma = \frac{P_1 - P_v}{P_1 - P_2} $$| Sigma (σ) Range | Condition | Action Required |
|---|---|---|
| > 2.0 | Safe zone | None |
| 1.5 – 2.0 | Incipient cavitation | Monitor operation |
| 1.0 – 1.5 | Critical cavitation | Reduce pressure drop or redesign |
| < 1.0 | Flashing regime | Valve unsuitable |
Dynamic Torque and Actuator Selection
Unlike isolation service, throttling requires overcoming dynamic fluid forces. Dynamic torque often peaks between 60° and 80° opening.
$$ T_d = C_t D^3 \Delta P $$Warning: Sizing actuators based only on seating torque leads to valve flutter and failure. Actuators must be sized for the complete torque envelope with a 1.3-1.5 safety factor.
Industry-Specific Applications
Water/Wastewater: Extensive use. Double-offset designs handle filter backwash. Watch for wire drawing at small openings.
HVAC: Concentric designs dominate. Must be undersized (reduced port) to achieve authority in low-velocity systems.
Power/Steam: Triple-offset valves excel in high-temp steam, replacing expensive gate valves.
Lifecycle Cost Analysis
For large valves (>DN150), butterfly valves offer massive TCO advantages.
| Criterion | Globe Valve | HP Butterfly Valve | Triple-Offset Butterfly |
|---|---|---|---|
| Initial Cost (DN150) | Very High | Low | Medium |
| Control Precision | Excellent | Good | Very Good |
| Energy Efficiency | Low | High | High |
Practical Implementation Guidelines
Respect the Operating Window: Size for max flow at 60°-70° opening. Never size based on pipe diameter alone.
Calculate Cavitation: If $\sigma < 1.5$, do not use standard butterfly valves.
Invest in Actuation: Undersized actuators ruin performance. Use stiff actuators with intelligent positioners.
When applied with engineering discipline, butterfly valves deliver outstanding control performance at a fraction of the cost of alternatives, making them essential for modern industrial systems.
