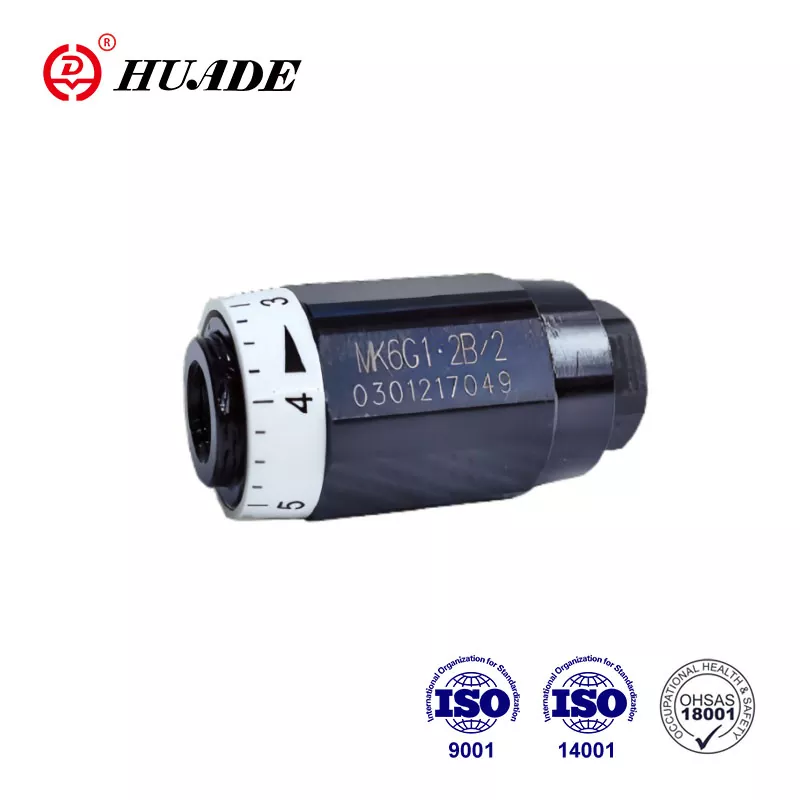

Huafilter specializes in supplying Huade® throttle check valve MK. This valve fully complies with international standards and is of high quality and low price. Huade® MK throttle check valve are more advanced in technology and more durable in this field due to introducing the technology from Rexroth. As the authorized distributor of Huade Hydraulic, we provide excellent customer service and technical support.
Valve types Mk is pressure and viscosity dependent throttle check valves. This valve produced by Huade Hydraulic is the most widely used flow valve. Huade® hydraulic flow valves have attracted many consumers. Huade is a well-known trademark in China.The factory has more than 750 machines imported from all over the world to strictly control product quality. Product packaging of MK throttle check valves can be customized, such as using standard cartons, vacuum packaging, or plywood boxes.
Product parameter of Throttle Check Valve MK
Technical data (for applications outside these parameters, please consult us!)
Size
6
8
10
15
20
25
30
Maximum flow (L/min)
15
30
50
140
200
300
400
Pressure (MPa)
up to 31.5
Cracking pressure (MPa)
0.05 (Type MK)
Pressure fluid
Mineral oil or Phosphate ester
Viscosity range(mm ²/s)
10 to 800
Pressure fluid temperature range(℃)
-30 to+80
Product Feature And Application of Throttle Check Valve MK
Features:
▶ Suitable for direct in-line mounting
▶ Pressure and viscosity dependent
Application:
This valve is a tubular throttle check valve directly installed on the pipeline. The throttle port of the valve adopts an axial triangular groove structure and has 7 specifications and two connection threads. The main function of throttle valve MK is to control the speed of the actuator.
Section and symbol of Throttle Check Valve MK
With flow passing through the valve in throttling direction, the spring and the fluid presses the poppet onto its seat, thus blocking the flow. Fluid flows via the side drilling to the throttling point, which is formed between the housing (2) and the adjustable sleeve (1).In the opposite direction, fluid pressure acts on the face of the poppet, thus lifting it from its seat and allowing fluid to flow freely, unthrottled, through the valve. At the same time, part of the fluid flowing through the annular clearance produces the desired self-cleaning effect.
