A cooling tower flow control valve is a mechanical device that regulates water flow within industrial and commercial cooling systems. It controls the volume, velocity, and direction of water moving through the cooling tower circuit to maintain optimal heat transfer efficiency while protecting equipment from hydraulic shocks, cavitation, and thermal stress. These valves function as the critical interface between heat rejection equipment and the broader hydraulic loop, directly influencing system stability, energy consumption, and operational safety.
The Role of Flow Control in Cooling Tower Systems
[Image of cooling tower system diagram showing water flow]Cooling towers operate on the principle of evaporative heat rejection. The cooling tower flow control valve ensures this process happens efficiently by maintaining the precise water flow rate needed for current thermal loads.
When flow rates are too high, fan energy is wasted and approach temperature increases. When flow is too low, distribution nozzles fail to create proper spray patterns, causing dry spots and scaling on fill media. Modern variable flow systems use modulating valves to match water delivery to instantaneous cooling demand.
- Isolation valves: Shut off specific cells for maintenance or staging.
- Control valves: Regulate flow based on temperature/pressure sensors.
- Bypass valves: Divert flow to the basin during startup/winter to prevent freezing or overcooling.
- Makeup/Blowdown valves: Maintain water level and chemical balance.

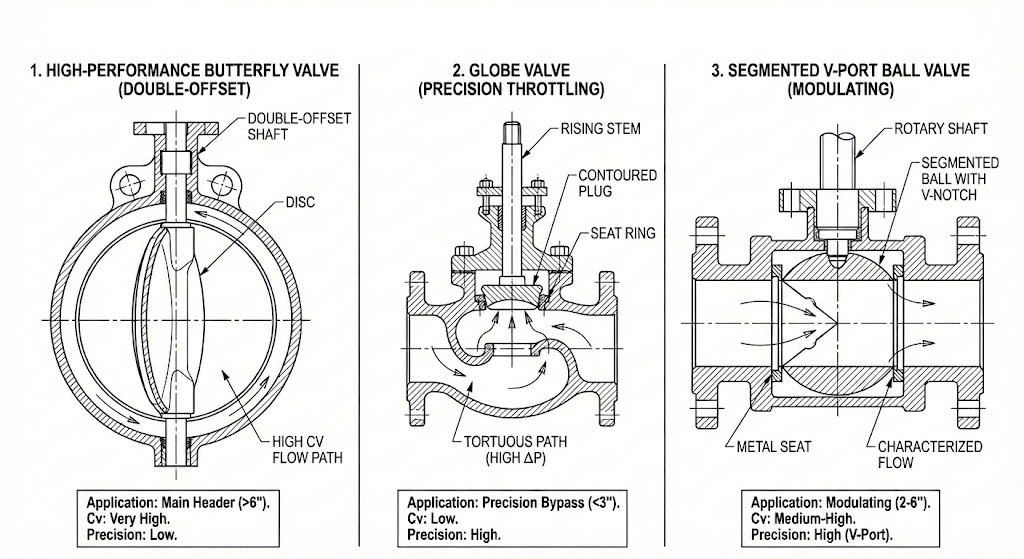

Common Valve Architectures for Cooling Applications
The choice of valve body design determines control authority, rangeability, and service life.
Butterfly ValvesThe industry standard for pipe sizes 3 inches and larger. High-performance (double-offset) designs are preferred over concentric types for throttling due to reduced friction and longer seat life. They offer high Cv but precise control is limited to 20-60% open.
Globe ValvesIdeal for precision throttling in bypass lines or makeup connections (<10 inches). Their high pressure drop provides excellent valve authority. Anti-cavitation trim is essential for high differential pressure applications.
Segmented Ball ValvesA hybrid solution for mid-size piping (3-6 inches). V-port designs offer equal percentage characteristics, high rangeability (300:1), and tolerance for suspended solids (debris/algae).
| Characteristic | Butterfly Valve | Globe Valve | Segmented Ball Valve |
|---|---|---|---|
| Primary Application | Main header (>6 inch) | Precision bypass (<3 inch) | Modulating control (2-6 inch) |
| Flow Coefficient ($C_v$) | Very High | Low | Medium-High |
| Control Precision | Low | High | High |
| Solids Tolerance | Moderate | Low | High |
Actuator Selection and Control Integration
Electric Actuators: Standard for commercial towers. High precision (1%), compatibility with BAS. Slower response time (30-60s).
Pneumatic Actuators: Common in industrial/hazardous sites. Fast response (<1s), reliable fail-safe (spring return).
Torque Matching: Add a 20-30% safety margin above rated torque to account for seal aging and scale buildup.
Hydraulic Sizing: Flow Coefficient and Valve Authority
Improper sizing (usually oversizing) is the leading cause of control failure.
Flow Coefficient ($C_v$) Calculation:
$$ C_v = Q \sqrt{\frac{SG}{\Delta P}} $$Where $Q$ is GPM, $SG$ is specific gravity, and $\Delta P$ is pressure drop (PSI).
For effective control, the valve must create a significant pressure drop relative to the system. Optimal Sizing: Select a valve size that positions it between 60% and 80% open at maximum design flow. This often means selecting a valve smaller than the pipe diameter.
Control Strategies and System Logic
Bypass Control Logic: During startup/winter, the bypass valve opens to route water to the basin (skipping the tower). As temperature rises, it throttles closed. Logic must prevent the bypass valve from fully closing until the tower isolation valve is fully open to avoid pump dead-heading.
Low Delta-T Syndrome: Caused by excessive flow or improper mixing. Smart valves monitor real-time energy transfer and restrict flow to force improved heat exchange efficiency.
Installation Best Practices
- Straight Pipe Requirements: Maintain 5-10D upstream and 3-5D downstream to ensure laminar flow and accurate control.
- Orientation: Mount butterfly valve stems horizontally in dirty water applications to prevent solids from accumulating in the bottom bearing.
- Freeze Protection: Ensure valves allow complete drainage during shutdown. Configure fail-open logic for bypass valves in cold climates.
The shift toward intelligent, data-driven valves represents the industry's future. However, successful implementation still rests on correct sizing, proper installation, and scientific maintenance strategies.
