Directional Valve Control: The Complete Guide to Understanding and Using These Essential Components

2025-09-07

Directional Valve Control Blog

Imagine turning a water faucet on and off, or switching the direction water flows through your garden hose. Directional valve control works similarly, but instead of water, it controls hydraulic oil or compressed air in machines.

A directional control valve (DCV) is like a traffic controller for fluids. It decides where the fluid goes, when it stops, and how fast it moves. These valves are the "brain" of hydraulic and pneumatic systems, making everything from construction equipment to factory machines work properly.

Why Are Directional Valves So Important?

Think about an excavator digging a hole. The operator moves a joystick, and the bucket moves exactly where they want it to go. This happens because directional valves control the hydraulic oil flowing to different parts of the machine.

Without proper directional valve control, machines would be like cars without steering wheels – completely uncontrollable. These valves make precise movement possible in:

Construction Equipment

Excavators, bulldozers, cranes

Factory Machines

Injection molding, presses, automation

Aircraft Systems

Landing gear, flight controls

Farm Equipment

Tractors, harvesters, implements

How Do Directional Valves Work?

The basic idea is simple: a moving part inside the valve (called a spool) slides back and forth to open and close different pathways for the fluid.

Three Main Types of Internal Design

Spool Valves

Most common type

The spool slides like a drawer to connect different ports

Can handle complex functions but has small leakage

Used in most industrial applications

Poppet Valves

Work like a cork in a bottle

Almost zero leakage when closed

Perfect for holding heavy loads in place

Limited to simple on/off functions

Rotary Valves

The spool rotates instead of sliding

Compact design

Often used for manual controls

Understanding Valve Symbols and Numbers

Directional valves are described using numbers like "4/2" or "5/3." Here's what these mean:

First number: How many ports (connections) the valve has
Second number: How many positions the valve can be in

Common Valve Types

2/2 Valve: 2 ports, 2 positions (simple on/off)

Like a light switch for fluid flow
Used to start or stop flow completely

4/2 Valve: 4 ports, 2 positions

Controls double-acting cylinders (pistons that can push and pull)
Can make a cylinder extend or retract

4/3 Valve: 4 ports, 3 positions

Has a center position where different things can happen:

Closed center: Locks the cylinder in place
Open center: Lets the pump rest (saves energy)
Float center: Allows free movement

Types of Directional Valve Control

1. On-Off Control (Bang-Bang)

This is the simplest type – like a light switch that's either on or off.

Good For:

Basic start/stop functions
Simple hydraulic circuits
Safety shutoffs

Not Good For:

Smooth, precise control
Variable speed applications
Sensitive positioning

2. Proportional Control

This is like a dimmer switch for lights – you can adjust how much flow you want.

How it works

The valve opening changes based on an electrical signal

Best for

Controlling speed and force smoothly

Cost

Medium price range

Used in

Construction equipment, industrial machines

3. Servo Control

This is the Ferrari of valve control – extremely precise and fast.

How it works

Uses advanced feedback systems to make tiny adjustments

Best for

Ultra-precise positioning and high-speed operations

Cost

Expensive but worth it for critical applications

Used in

Aircraft, precision manufacturing, robotics

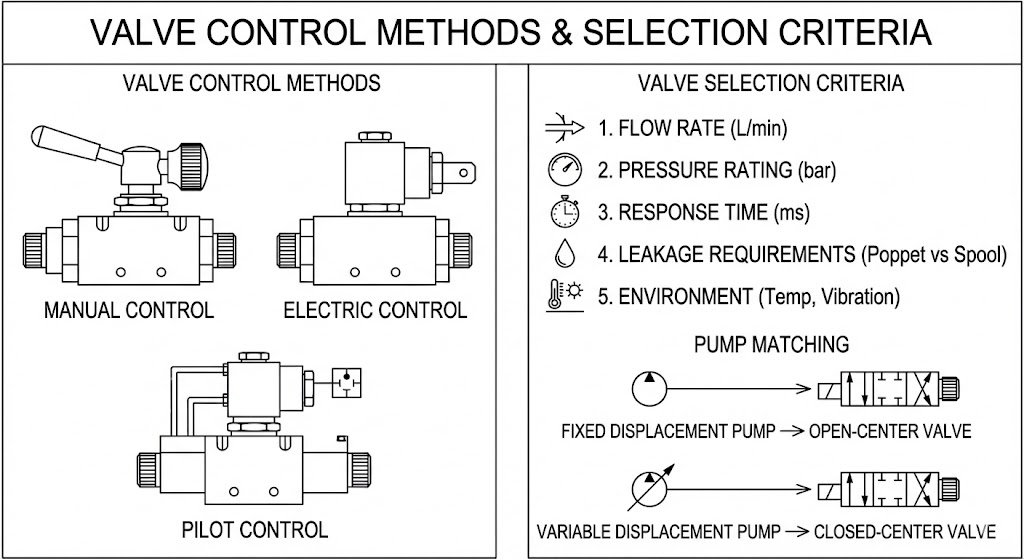

How Valves Are Controlled

Manual Control

Operated by hand levers or knobs

Simple and reliable

Used when automation isn't needed

Electric Control

Controlled by electrical signals

Fast response (milliseconds)

Easy to connect to computers

Pilot Control

Uses hydraulic or air pressure

Good for very large valves

Slightly slower than electric

New Technologies: Shape memory alloys (metals that change shape when heated), digital communication systems, and smart sensors built into the valve are becoming more common.

Choosing the Right Valve

Key Things to Consider

1. Flow Rate

How much fluid needs to pass through per minute. Bigger applications need valves that can handle more flow.

2. Pressure Rating

Maximum pressure the valve can safely handle. Always choose a valve rated higher than your system pressure.

3. Response Time

How fast the valve needs to switch. Critical for safety systems and precision applications.

4. Leakage Requirements

Some applications can't tolerate any leakage. Poppet valves are best for zero-leakage applications.

5. Environment

Temperature extremes, vibration, corrosive chemicals. Some valves are built for harsh conditions.

Matching Valves to Pumps

The valve's center position must work well with your pump type:

Fixed displacement pumps: Need open-center valves to rest when not working
Variable displacement pumps: Work well with closed-center valves for energy savings

Common Applications

Construction Equipment

Excavators

Use multiple proportional valves to control:

Boom movement (up/down)
Stick movement (in/out)
Bucket rotation
Track movement

The operator's joystick movements are converted to electrical signals that control these valves precisely.

Bulldozers

Use directional valves to control:

Blade angle and height
Track speed and direction
Ripper operation

Industrial Manufacturing

Injection Molding Machines

Use servo valves for:

Precise plastic injection speed
Mold closing force
Part ejection timing

Hydraulic Presses

Use directional valves to:

Control pressing force
Hold pressure during forming
Quick return stroke for productivity

Aircraft Systems

Landing Gear

Uses multiple valves with safety interlocks:

Gear extension/retraction
Gear door operation
Emergency backup systems

Maintenance and Troubleshooting

Common Problems

1. Valve Sticking

Cause: Dirty oil, worn parts, or contamination

Solution: Clean the system, replace filters, check for proper oil grade

2. Internal Leakage

Cause: Worn valve parts or damaged seals

Symptoms: Slow or drifting movement, overheating

Solution: Rebuild or replace the valve

3. External Leakage

Cause: Damaged seals or loose connections

Solution: Replace seals, check torque on fittings

Preventive Maintenance


				Keep It Clean: Use proper filtration and change filters regularly

				Keep It Cool: Monitor temperature and use coolers if needed

				Keep It Dry: Prevent water contamination

				Monitor Performance: Watch for changes in speed or response

Future Trends in Directional Valve Control

Smart Valves

Modern valves are getting smarter with:

Built-in sensors that monitor performance
Self-diagnostic capabilities
Automatic adjustment for optimal performance
Wireless communication with control systems

Energy Efficiency

New designs focus on:

Reducing pressure losses
Recovering energy from moving loads
Variable flow control to match demand
Better insulation and cooling

Digital Integration

IoT Connectivity: Valves that connect to the internet for remote monitoring
Predictive Maintenance: AI systems that predict when maintenance is needed
Digital Twins: Computer models that simulate valve behavior

Market Trends and Industry Growth

The global directional valve control market is growing rapidly, expected to reach $15.5 billion by 2032. This growth is driven by:

Industrial Automation: More factories using automated systems
Construction Boom: Infrastructure projects worldwide
Renewable Energy: Wind turbines and solar tracking systems
Agricultural Mechanization: Advanced farming equipment

Key Players

Major manufacturers include: Bosch Rexroth, Parker Hannifin, Eaton, Danfoss, Moog, and ATOS.

Valve Selection Checklist

Determine flow requirements
Check pressure ratings
Consider response time needs
Evaluate environmental conditions
Match center position to pump type
Budget for control electronics
Plan for maintenance access

Common Specifications to Request

Flow coefficient (Cv)
Maximum operating pressure
Response time
Leakage rates
Temperature range
Mounting configuration
Control voltage requirements

Conclusion

Directional valve control is essential for making machines work smoothly and efficiently. Whether you're operating construction equipment, running a factory, or flying an airplane, these valves are working behind the scenes to make precise control possible.

Understanding the basics helps you:

Choose the right valve for your application
Maintain systems properly
Troubleshoot problems quickly
Make informed purchasing decisions

As technology advances, directional valves are becoming smarter, more efficient, and easier to maintain. The future promises even better control, lower costs, and improved reliability.

Remember: the right directional valve control system can make the difference between a machine that barely works and one that performs flawlessly for years. Take time to understand your needs, choose quality components, and maintain them properly – your equipment will thank you with reliable, efficient operation.

Understanding directional valve control doesn't have to be complicated. Start with the basics, understand your application needs, and choose components that match your requirements and budget. With proper selection and maintenance, these essential components will provide years of reliable service.
