Ball Check Valve Diagrams

When fluid flow control demands reliable one-way protection with minimal maintenance, the ball check valve stands as an elegant engineering solution. Unlike complex multi-component designs, this valve relies on a simple yet brilliant principle: a spherical element that moves with fluid pressure to permit forward flow and seats firmly to block reverse flow. However, understanding its operation requires more than surface-level observation—engineers, technicians, and system designers must interpret detailed ball check valve diagrams to grasp the precise interaction between geometry, gravity, and hydraulic forces that make this device function reliably across demanding applications from wastewater treatment to chemical metering systems.

Core Components in Ball Check Valve Cross-Sectional Diagrams

A properly annotated ball check valve diagram reveals the critical relationship between each component. The valve body is not merely a pressure vessel but a carefully contoured flow director that creates specific hydraulic conditions for ball movement.

The most common industrial ball check valves employ a Y-pattern body configuration. When examining cross-sectional diagrams, you'll notice the valve body creates an offset chamber—the ball retention cavity—positioned at an angle to the main flow axis. This geometric arrangement serves a dual purpose: when fluid flows forward with sufficient velocity, the ball is pushed into this lateral chamber, clearing the primary flow path and minimizing obstruction.

The flow must navigate around the displaced ball, creating a curved streamline pattern. Some advanced designs incorporate venturi effects in the downstream section to reduce flow velocity and increase static pressure, helping stabilize the ball and reducing "chattering."

The Spherical Obturator: Ball Design and Material Selection

The ball itself appears as a simple circle in two-dimensional diagrams, but its physical properties determine valve performance. Ball density relative to the process fluid is the critical design parameter that dictates valve orientation requirements.

In most liquid applications, the ball must have greater density than the fluid. This creates a natural closing force through gravitational acceleration:

For high-viscosity fluids, engineers specify balls with metal cores encased in elastomeric coatings to provide sufficient mass to penetrate viscous layers.

Ball check valve diagrams cannot show motion, but understanding the ball's rotational behavior is essential. As fluid flows past the spherical surface, asymmetric pressure distribution creates torque that causes continuous rotation. This distributes wear evenly and prevents fiber wrapping—the secret behind its non-clogging operation in sewage.

The seat appears as a conical restriction at the inlet. The cone angle (typically 45-60 degrees) serves as a self-centering mechanism, guiding the ball to the precise center axis regardless of turbulence.

• Soft seats (EPDM, Viton) achieve bubble-tight shutoff but have temperature limits (<300°F).
• Hard seats (metal-to-metal) tolerate high heat (>800°F) and abrasion but may have minor leakage (ANSI Class IV).

When present, a helical compression spring adds a constant closing force governed by Hooke's Law ($F_{spring} = k \cdot x$). This increases cracking pressure but serves critical functions:

• Water hammer suppression: Forces immediate closure before flow reversal accelerates.
• Vertical downflow compatibility: The only way to make a ball check valve work against gravity.

A typical PVC ball check valve explodes into: Valve body, Inlet seat, Ball, Spring (optional), Ball guide/stop, O-ring, Access cover. Understanding this sequence is essential for inventory management—balls and seats experience the highest wear.

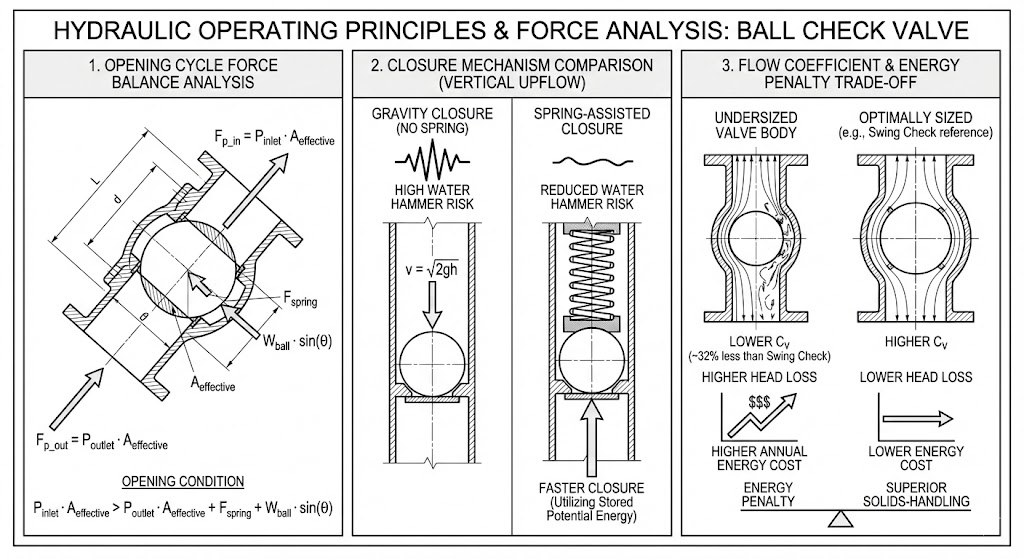

Hydraulic Operating Principles and Force Analysis

The ball check valve operates through passive response to differential pressure. It is a self-actuating device governed entirely by fluid dynamics.

Valve opening occurs when forward pressure overcomes resistive forces:

Once cracking pressure is exceeded, the ball lifts. Unlike swing checks, the ball remains in the flow stream, creating wake turbulence responsible for higher head loss.

In vertical upflow without springs, closure relies on gravity ($v = \sqrt{2gh}$). Spring-assisted designs close 40-60% faster, significantly reducing water hammer risk by utilizing stored potential energy to drive the ball to the seat.

Undersizing valve bodies saves cost but kills efficiency. A 32% reduction in Cv (compared to swing check) can cost hundreds of dollars annually in electricity per valve. Engineers must balance this energy penalty against the superior solids-handling capability.

Interpreting Ball Check Valve Symbols in P&ID Diagrams

Misreading P&ID symbols can lead to catastrophic design errors.

• Ball Check Valve Symbol: Single directional indicator (arrow/triangle) with a small circle representing the ball. Crucially, no operator symbol (handle/motor) is present.
• Ball Valve Symbol: Two opposing triangles (bowtie) with a circle center, plus a handle or actuator symbol. This is for isolation, not backflow prevention.

Installation Orientation Requirements from Diagram Analysis

Ball check valves demand respect for gravitational force vectors.

Fluid enters from below. Gravity aligns perfectly with closing force, and the ball self-centers. This is the optimal setup for pump discharge lines.

Gravity pulls the ball away from the seat. Standard valves fail completely here. You must use a heavy-duty spring where:

Even then, static head can cause leakage. Silent check valves are often preferred for downflow.

Must be installed with the access cover (bonnet) upward. If inverted, gravity traps the ball in the cavity, disabling the valve.

Turbulence causes violent ball motion. Engineering best practice mandates 5-10 pipe diameters of straight run upstream to stabilize flow velocity profiles.

Material Selection Strategy

Specific Applications

Common Failure Modes and Diagnostic Approach

• Chattering (Clicking Noise): Valve oversized (insufficient flow to hold ball open) or excessive turbulence. Solution: Downsize valve or add straight pipe.
• Backflow (Leaking): Debris on seat or incorrect orientation (inverted horizontal). Solution: Clean seat, check installation arrow.
• Water Hammer: Ball closes too slowly. Solution: Install spring-assisted version or reduce ball weight.

Conclusion

A ball check valve diagram is more than a parts illustration—it encodes the fundamental physics governing valve operation. The simple representation of a sphere resting on a conical seat represents a carefully engineered balance of gravitational force, fluid pressure, and geometric constraints.

Understanding these diagrams transforms technical illustrations into operational intelligence. It clarifies why vertical upflow is critical, why material density matters, and how to troubleshoot failures effectively. This depth of understanding separates adequate specification from optimal system design.
