Single Direction Valve: The Complete Guide You Need to Know

2025-09-07

Single Direction Valve Guide

Have you ever wondered how water flows in only one direction through pipes? Or how your car's engine prevents oil from flowing backward? The answer lies in a simple but clever device called a single direction valve.

What Is a Single Direction Valve?

A single direction valve is a special type of valve that lets fluid flow in only one direction. Think of it like a door that only opens one way – you can push it open from one side, but it won't open when pushed from the other side.

These valves go by many names:

Check valve (most common technical name)
One-way valve (describes what it does)
Non-return valve (emphasizes stopping backflow)
Backflow preventer (used in water systems)

No matter what you call it, they all do the same job: keep fluids moving in the right direction.

Why Do We Need Single Direction Valves?

Imagine what would happen if water in your home's pipes could flow backward. Dirty water from your toilet might end up in your kitchen sink! That's exactly why we need these valves.

Safety First

They prevent contaminated water from mixing with clean water. This keeps our drinking water safe.

Equipment Protection

Pumps and other machines can break if fluid flows backward through them. Single direction valves act like bodyguards for this equipment.

System Efficiency

They help maintain proper pressure and flow in pipes, making everything work better.

Cost Savings

By preventing damage and maintaining efficiency, these valves save money on repairs and energy costs.

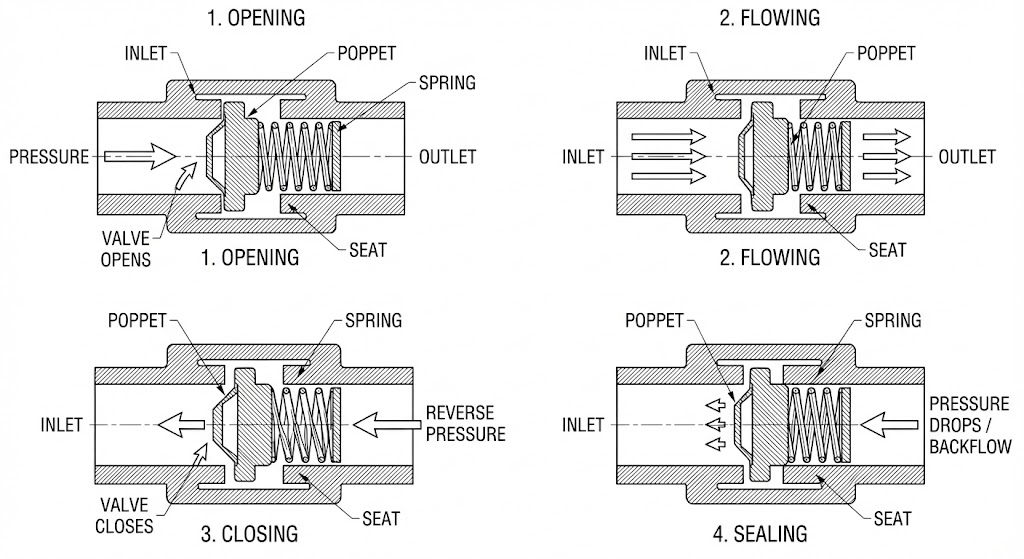

How Does a Single Direction Valve Work?

The beauty of single direction valves is their simplicity. They work without electricity or any external power source. Here's the basic process:

Opening: When water pressure pushes from the correct direction, the valve opens automatically

Flowing: Water flows through freely with minimal resistance

Closing: When pressure drops or tries to flow backward, the valve snaps shut

Sealing: The valve creates a tight seal to prevent any reverse flow

It's like having an automatic door that knows which direction is right!

Types of Single Direction Valves

Just like there are different types of doors, there are different types of single direction valves. Each works best in certain situations.

Swing Check Valves

These have a flap (called a disc) that swings open like a door. When water flows forward, it pushes the flap open. When water tries to flow backward, the flap swings shut.

Best for: Large pipes with steady flow

Not great for: Systems with frequent flow changes

Ball Check Valves

These use a ball that rolls away from the opening when water flows forward. When flow stops or reverses, the ball rolls back to block the opening.

Best for: Dirty water with particles

Why: The ball naturally cleans itself as it moves

Lift Check Valves

In these valves, a disc lifts straight up when water flows forward. When flow stops, gravity pulls the disc back down to seal the opening.

Best for: High-pressure systems

Downside: Creates more resistance to flow

Dual Plate Check Valves

These have two half-circle plates that fold open like butterfly wings. They're compact and close quickly to prevent water hammer (sudden pressure surges).

Best for: Tight spaces where quick closing is important

Not suitable for: Dirty water (particles can jam the plates)

Diaphragm Check Valves

These use a flexible rubber sheet that bends to let water through. They're gentle and work well with sensitive fluids.

Best for: Medical equipment and food processing

Why: Easy to clean and very reliable

Duckbill Check Valves

Named for their shape, these valves look like a duck's bill. They're made of flexible rubber and work great with dirty water.

Best for: Sewage systems and storm drains

Advantage: Almost impossible to clog

Where Are Single Direction Valves Used?

These versatile valves show up in more places than you might think:

Home and Buildings

Water heaters: Prevent hot water from flowing back into cold lines
Sump pumps: Keep water from flowing back into basements
Dishwashers: Stop dirty water from contaminating clean water supply

Municipal Systems

Water treatment plants: Ensure clean water stays clean
Sewage systems: Keep waste flowing in the right direction
Fire sprinkler systems: Maintain proper pressure

Industrial Applications

Chemical plants: Prevent dangerous mixing of chemicals
Oil refineries: Control flow in complex piping systems
Power plants: Protect expensive equipment

Transportation

Cars: Keep oil and coolant flowing correctly
Airplanes: Critical for fuel and hydraulic systems
Ships: Essential for ballast and fuel systems

Medical Equipment

IV drips: Prevent blood from flowing back into medicine bags
Breathing machines: Control air flow in ventilators
Dialysis machines: Ensure proper blood flow direction

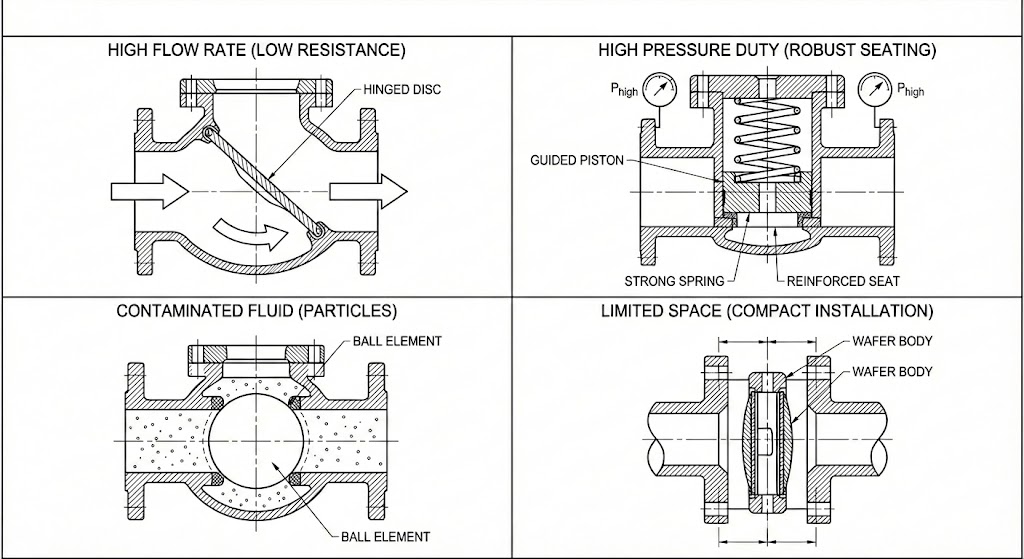

Choosing the Right Single Direction Valve

Selecting the right valve isn't just about pipe size. Here are the key factors to consider:

Flow Rate

How much water needs to flow through? Large flows need valves with low resistance (like swing check valves).

Pressure

High-pressure systems need stronger valves that can handle the force (like lift check valves).

Fluid Type

Clean water: Most valve types work well
Dirty water with particles: Ball or duckbill valves are better
Chemicals: Special materials may be needed
Food or medicine: Sanitary diaphragm valves are preferred

Space Available

Tight spaces might need compact dual plate valves, while open areas can accommodate larger swing check valves.

Maintenance Needs

Some valves need more cleaning and replacement parts than others. Consider long-term costs, not just initial price.

Common Problems and Solutions

Like any mechanical device, single direction valves can have issues. Here are the most common problems and what to do about them:

Valve Won't Close (Leakage)

Symptoms: Water flows backward

Causes: Debris stuck in the valve, worn out sealing parts, wrong valve size or type

Solutions: Clean the valve and remove debris, replace worn seals or the entire valve, check if the valve is properly sized for the application

Valve Won't Open

Symptoms: No flow or very low flow

Causes: Valve stuck shut, not enough pressure to open, debris blocking the opening mechanism

Solutions: Clean or replace the valve, check if system pressure is adequate, verify correct valve orientation

Noise and Vibration (Chatter)

Symptoms: Rattling or banging sounds

Causes: Flow rate too low for valve size, unstable flow conditions, valve closing too quickly (water hammer)

Solutions: Use smaller valve or different type, install flow stabilizers, add surge tanks or different valve design

Frequent Failure

Symptoms: Valve needs frequent replacement

Causes: Wrong valve type for application, poor water quality, system pressure too high

Solutions: Consult with valve expert for proper selection, install filters upstream, add pressure relief valves

Materials Matter

Single direction valves are made from various materials, each with pros and cons:

Stainless Steel

Pros: Strong, resists rust, lasts long

Cons: More expensive

Best for: Clean water, chemicals, high pressure

Brass

Pros: Affordable, easy to work with

Cons: Can corrode in some conditions

Best for: Home plumbing, low pressure

PVC (Plastic)

Pros: Cheap, won't rust, lightweight

Cons: Not as strong, temperature limits

Best for: Pool systems, low pressure water

Cast Iron

Pros: Very strong, handles high pressure

Cons: Can rust, heavy

Best for: Large municipal water systems

Installation Tips for Success

Proper installation is crucial for valve performance:

Orientation Matters

Most valves must be installed in the correct direction. Look for flow arrows on the valve body – these show which way fluid should flow.

Pipe Support

Valves add weight to pipes. Make sure pipes are properly supported to prevent stress on the valve.

Accessibility

Install valves where they can be easily inspected and maintained. Don't bury them where you can't reach them later.

Upstream Strainer

Consider installing a strainer before the valve to catch debris that could cause problems.

The Future of Single Direction Valves

Technology is making these simple devices even better:

Smart Valves

New valves can connect to the internet and report their status. This helps maintenance teams know when service is needed before problems occur.

Better Materials

Scientists are developing new materials that last longer and resist more types of chemicals.

3D Printing

Custom valves can now be printed for special applications, making unique solutions more affordable.

Energy Efficiency

New designs reduce energy loss, helping save money on pumping costs.

Market Trends and Growth

The single direction valve market is growing steadily. Here's why:

Infrastructure Growth: More buildings and cities need water systems
Environmental Concerns: Better valves help prevent pollution
Industrial Expansion: More factories need reliable flow control
Aging Infrastructure: Old valves need replacement with better designs

The market was worth $4.43 billion in 2023 and is expected to reach $6.5 billion by 2035.

Maintenance Best Practices

Taking care of single direction valves extends their life:

Regular Inspections

Check valves every 6-12 months for:

Signs of leakage
Unusual noises
Corrosion or damage
Proper operation

Cleaning

Remove debris and buildup that could interfere with operation. This is especially important in dirty water applications.

Record Keeping

Track when valves were installed, serviced, and replaced. This helps predict when future maintenance will be needed.

Professional Service: For critical applications, have qualified technicians inspect and service valves regularly.

Cost Considerations

When budgeting for single direction valves, consider:

Initial Cost

Prices range from $20 for simple plastic valves to thousands for large industrial units.

Installation Cost

Professional installation ensures proper operation and may be required by local codes.

Operating Cost

Energy losses from pressure drop can add up over time, especially in large systems.

Maintenance Cost

Factor in cleaning, repairs, and eventual replacement when calculating total cost of ownership.

Safety and Regulations

Single direction valves play crucial roles in safety:

Drinking Water Protection: Many jurisdictions require backflow preventers to protect public water supplies.
Industrial Safety: In chemical plants, proper valve selection and installation can prevent dangerous situations.
Building Codes: Local building codes often specify where and what types of valves must be used.
Professional Standards: Industry organizations like ASME and API publish standards that ensure valves meet safety and performance requirements.

Conclusion: Why Single Direction Valves Matter

Single direction valves may seem simple, but they're essential for modern life. They keep our water clean, protect expensive equipment, and ensure systems work efficiently and safely.

Whether you're a homeowner dealing with a sump pump, an engineer designing a water treatment plant, or a maintenance technician keeping systems running, understanding these valves helps you make better decisions.

The key takeaways are:

Choose the right valve type for your specific application
Pay attention to materials and sizing
Install correctly and maintain regularly
Consider long-term costs, not just initial price
Stay informed about new technologies and materials

As technology advances, single direction valves will become even more important in our increasingly connected and automated world. By understanding how they work and how to use them properly, we can build better, safer, and more efficient systems for everyone.

Remember: when in doubt, consult with professionals. Proper valve selection and installation is an investment in safety, reliability, and peace of mind.
