What is the purpose of a check valve?

Check valves are like one-way doors for liquids and gases. They're everywhere around us, quietly doing their job to keep our systems safe and working properly. In this guide, we'll explore what check valves are, why they're so important, and how they work in different situations.

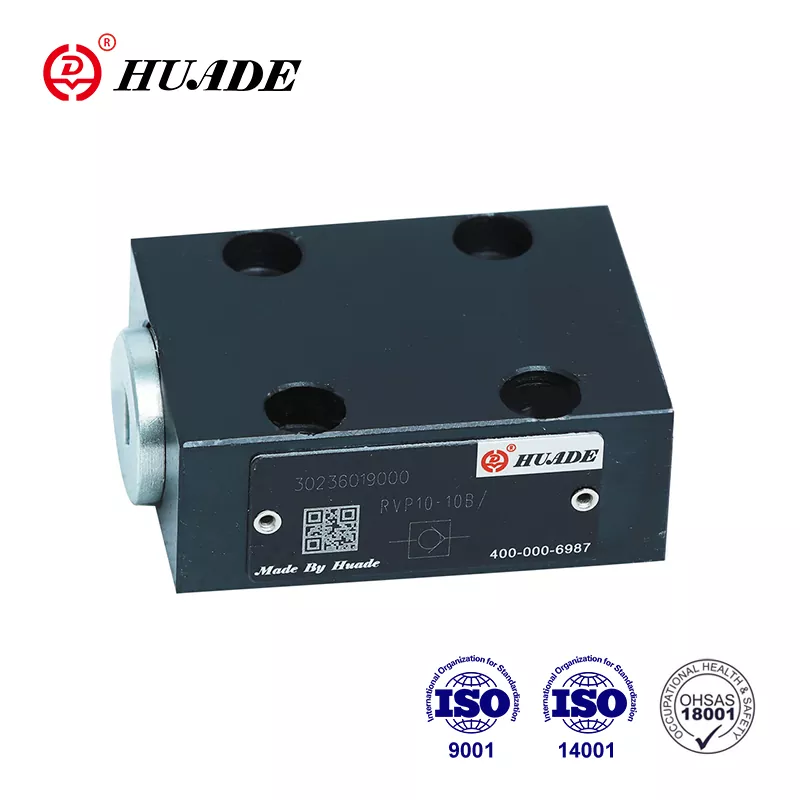

What is a Check Valve?

A check valve is a special type of valve that only allows fluid (liquids or gases) to flow in one direction. Think of it like a turnstile at a subway station – people can only go through one way.

People also call check valves by other names like "one-way valves" or "non-return valves." No matter what you call them, they all do the same basic job: prevent backflow.

Why Do We Need Check Valves? The Main Purposes

1. Prevent Contamination

The most important job of a check valve is keeping clean and dirty fluids separate. For example:

• In your home's water system, they stop dirty water from mixing with drinking water
• In hospitals, they prevent blood from flowing back into IV tubes
• In food processing plants, they keep ingredients from mixing incorrectly

2. Protect Equipment

Check valves act like bodyguards for expensive equipment:

• They stop pumps from spinning backward, which could damage them
• They prevent pressure from building up in the wrong places
• They keep air compressors from losing their stored pressure

3. Reduce Water Hammer

Water hammer is the loud banging noise you sometimes hear in pipes when water suddenly stops or changes direction. Check valves help reduce this problem by:

• Closing quickly to stop sudden flow changes
• Using special designs that close more gently
• Preventing pressure spikes that damage pipes

4. Save Energy

Check valves help systems work more efficiently by:

• Keeping pumps from having to restart constantly
• Preventing air from entering water lines
• Maintaining steady pressure in systems

5. Improve Safety

In dangerous situations, check valves provide crucial safety:

• They prevent explosive gases from flowing backward
• They stop toxic chemicals from going where they shouldn't
• They help maintain safe pressure levels

How Do Check Valves Work?

Check valves work using a simple but smart principle: pressure difference. Here's how:

The Opening Process

1. Fluid flows toward the valve from the upstream side
2. When pressure builds up enough, it pushes open a movable part inside (called a disc or ball)
3. Fluid can now flow through the open valve
4. The valve stays open as long as pressure keeps pushing in the right direction

The Closing Process

1. When forward pressure stops or backward pressure starts
2. The disc or ball quickly moves back to block the opening
3. The valve seals shut, preventing any backward flow
4. It stays closed until proper forward pressure returns

Types of Check Valves and Their Uses

Different situations need different types of check valves. Here are the most common ones:

Swing Check Valves

• How they work: A hinged disc swings open and closed
• Best for: Large water pipes, sewage systems
• Pros: Low pressure loss, handles high flow rates
• Cons: Can slam shut and cause water hammer

Ball Check Valves

• How they work: A ball moves up and down to open/close
• Best for: Vertical pipes, dirty water with particles
• Pros: Simple design, works with thick fluids
• Cons: Higher pressure loss than other types

Spring-Loaded Check Valves

• How they work: A spring helps push the disc closed
• Best for: Systems that need quick closing
• Pros: Fast response, works in any position
• Cons: Slightly higher opening pressure needed

Wafer Check Valves

• How they work: Thin disc that fits between pipe flanges
• Best for: Tight spaces, water treatment plants
• Pros: Saves space, reduces water hammer
• Cons: May not seal as tightly as other types

Duck Bill Check Valves

• How they work: Flexible rubber "lips" that open and close
• Best for: Sewage, storm drains, medical devices
• Pros: Self-cleaning, very low opening pressure
• Cons: Rubber can wear out over time

Silent Check Valves

• How they work: Special spring design for quiet operation
• Best for: Buildings, quiet environments
• Pros: No water hammer noise, smooth operation
• Cons: More complex, higher cost

Where Are Check Valves Used?

Check valves are found in many industries and applications:

Water and Wastewater Systems

• City water supplies to prevent contamination
• Sewage treatment plants to control flow direction
• Home plumbing to protect drinking water
• Swimming pool systems to prevent backflow

Oil and Gas Industry

• Pipelines to prevent dangerous backflow
• Refineries to protect expensive equipment
• Gas stations to prevent fuel from flowing backward
• Offshore drilling platforms for safety

HVAC Systems (Heating and Cooling)

• Air conditioning units to control refrigerant flow
• Heating systems to prevent gravity-fed backflow
• Ventilation systems to maintain proper air direction

Medical and Pharmaceutical

• IV drips to prevent blood backflow
• Medication pumps for accurate dosing
• Laboratory equipment to prevent contamination
• Dialysis machines for patient safety

Industrial Manufacturing

• Chemical plants to prevent dangerous mixing
• Food processing to maintain product quality
• Power plants to protect turbine systems
• Mining operations for slurry control

Everyday Applications

• Car engines (fuel systems, oil circuits)
• Air compressors and pneumatic tools
• Aquariums and fish tanks
• Garden irrigation systems
• Bicycle and car tire valves

Benefits of Using Check Valves

Limitations and Challenges

While check valves are very useful, they do have some limitations:

Can't See If They're Working

• No external indicator of valve position
• Hard to tell if they're stuck open or closed
• May need special monitoring equipment
• Problems might not be noticed until it's too late

Sensitive to Flow Conditions

• Low flow rates can cause chattering (rapid opening/closing)
• Pulsating flow can cause premature wear
• Very thick fluids might not provide enough pressure to open
• Air bubbles can interfere with proper operation

Installation Requirements

• Must be installed in the correct direction
• Some types only work in certain positions (horizontal/vertical)
• Need proper pipe support to prevent stress
• Require access for maintenance

Potential Failure Modes

• Debris can get stuck in the valve
• Seals can wear out over time
• Moving parts can corrode or jam
• Improper sizing can cause problems

How to Choose the Right Check Valve

Selecting the correct check valve involves several important factors:

System Pressure

• Operating pressure: Normal working pressure
• Maximum pressure: Highest pressure the system might see
• Pressure drop: How much pressure is lost through the valve
• Surge pressure: Sudden pressure spikes

Flow Requirements

• Flow rate: How much fluid needs to pass through
• Fluid type: Water, oil, gas, chemicals, etc.
• Temperature: Hot or cold operating conditions
• Viscosity: Thick or thin fluids

Physical Constraints

• Pipe size and connection type
• Available space for installation
• Weight limitations
• Access for maintenance

Performance Needs

• Cracking pressure requirements
• Sealing tightness needed
• Response time (how fast it closes)
• Expected service life

Environmental Factors

• Corrosive chemicals present
• Temperature extremes
• Vibration or shock conditions
• Indoor or outdoor installation

Installation and Maintenance Tips

Proper Installation

• Install with flow direction arrow pointing the right way
• Provide adequate support for heavy valves
• Leave space for maintenance access
• Follow manufacturer's orientation requirements

Regular Maintenance

• Inspect for external signs of leakage
• Check for unusual noises during operation
• Monitor system performance for signs of valve problems
• Replace worn seals before they fail completely

Troubleshooting Common Problems

• Valve won't open: Check for debris, insufficient pressure, or wrong installation
• Valve won't close: Look for stuck particles, worn seals, or damage
• Noisy operation: May indicate chattering, water hammer, or worn parts
• Leakage: Usually means damaged seals or debris on sealing surfaces

Industry Standards and Quality

Check valves must meet various industry standards to ensure safety and reliability:

Important Standards

• API 594: Design and testing requirements for check valves
• ASME B16.34: Pressure and temperature ratings
• ISO 5208: Leakage testing procedures
• ISO 15761: Requirements for steel check valves

Quality Certifications

• CE marking: European safety compliance
• API certification: American Petroleum Institute approval
• ISO 9001: Quality management systems
• Third-party testing: Independent verification of performance

The Future of Check Valve Technology

Check valve technology continues to improve with new innovations:

Smart Monitoring

• Sensors that detect valve position
• Wireless monitoring systems
• Predictive maintenance capabilities
• Integration with control systems

Advanced Materials

• Better corrosion resistance
• Longer-lasting seals
• Lightweight but strong designs
• Self-lubricating components

Improved Designs

• Reduced pressure loss
• Quieter operation
• Faster response times
• Better resistance to debris
