Have you ever wondered how water flows in only one direction through pipes? Or why air doesn't flow backward in certain systems? The answer lies in a simple but brilliant device called a check valve. Let's explore what check valves are, how they work, and why they're so important in our daily lives.
A check valve is a mechanical device that allows fluids (like water, air, or oil) to flow in only one direction. Think of it like a one-way door for liquids and gases. Just as a door with a spring closes automatically after you walk through it, a check valve closes automatically when fluid tries to flow backward.
Check valves are also known by other names:
These valves are designed to protect equipment, keep systems running smoothly, and prevent dangerous situations from happening.
Check valves serve several critical purposes:
Check valves work on a simple principle called pressure differential. Here's how it works:
Forward Flow (Normal Operation)
When fluid pressure from upstream (the inlet side) is strong enough, it pushes against a movable part inside the valve called the sealing element. This could be a disc, ball, or piston. When the pressure reaches a certain level (called the cracking pressure), the sealing element moves away from the valve seat, allowing fluid to flow through.
Reverse Flow Prevention
When the upstream pressure drops or reverse pressure builds up, the sealing element automatically returns to the valve seat, blocking any backward flow. This happens through:
Key Components
Every check valve has these main parts:

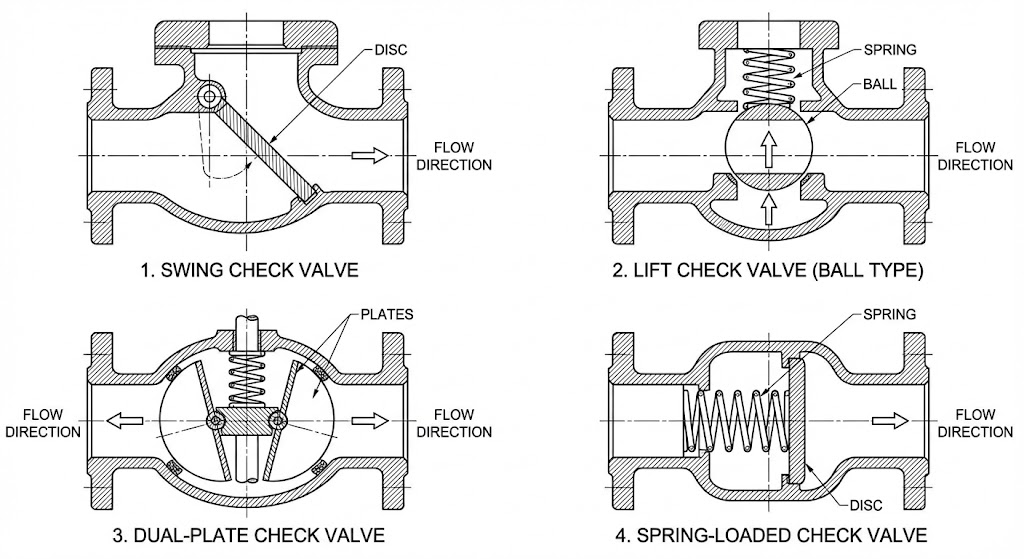

There are several types of check valves, each designed for specific applications. Let's look at the most common ones:
1. Swing Check Valve
How it works: A hinged disc swings open when fluid flows forward and swings closed when flow stops or reverses.
Advantages:
Disadvantages:
Common uses: Water treatment plants, oil pipelines, large industrial systems
2. Lift Check Valve
How it works: A disc or piston lifts straight up off the seat when fluid flows forward and drops back down when flow stops.
Subtypes:
Advantages:
Disadvantages:
Common uses: Steam systems, high-pressure water lines, hydraulic equipment
3. Dual-Plate (Butterfly) Check Valve
How it works: Two semicircular plates are hinged at the center. They open outward with forward flow and close together with reverse flow or springs.
Advantages:
Disadvantages:
Common uses: HVAC systems, water supply systems, tight spaces where size matters
4. Other Important Types
Stop Check Valve: Combines a check valve with a manual shut-off valve. You can manually close it for maintenance or emergency situations.
Spring-Loaded Check Valve: Uses a spring to help close the valve quickly. Works in any installation position and responds fast to flow changes.
Wafer Check Valve: Very thin design that fits between pipe flanges. Reduces water hammer and saves space.
Diaphragm Check Valve: Uses a flexible rubber or plastic diaphragm instead of a rigid disc. Eliminates water hammer completely and works well in low-pressure systems.
Check valves are used everywhere, from massive industrial plants to your home appliances. Let's explore where you might find them:
Oil and Gas Industry
In oil and gas operations, check valves prevent dangerous backflow in:
These valves protect expensive equipment and prevent environmental disasters like oil spills.
Water and Wastewater Treatment
Municipal water systems use check valves to:
HVAC Systems
In heating, ventilation, and air conditioning systems, check valves:
Power Plants and Boilers
Power generation facilities use check valves to:
Everyday Applications
You probably have check valves in your home right now:
Selecting the right check valve depends on several important factors:
1. Fluid Characteristics
Type of fluid: Is it water, oil, gas, steam, or something with particles?
Temperature: Make sure the valve materials can handle your fluid temperature
Corrosiveness: Choose materials that won't be damaged by your fluid
2. Operating Conditions
Pressure: Match the valve's pressure rating to your system
Flow rate: Consider how much fluid needs to flow
Pulsating flow: If your system has changing flow patterns
3. Installation Requirements
Space available: How much room do you have?
Installation position: Can you install it horizontally or vertically?
Pipe connections: How will it connect to your pipes?
4. Cost and Maintenance
Initial cost: Different types have different price ranges
Maintenance requirements: How often will you need to service it?
Lifecycle cost: Think about the total cost over time
Proper installation is crucial for check valve performance and longevity. Here are the key steps:
Before Installation
During Installation
After Installation
Regular maintenance keeps check valves working properly and extends their life.
Create a maintenance schedule based on:
Typical schedule: Annual inspections for most applications, more frequent for critical systems.
Leakage:
Sticking or failure to open:
Water hammer:
Repair when:
Replace when:
Safety During Maintenance
Check valves must meet strict industry standards to ensure safety and reliability.
Key Standards Organizations
API (American Petroleum Institute):
ASME (American Society of Mechanical Engineers):
ISO (International Organization for Standardization):
What Standards Mean for You
These standards ensure that:
Check valve technology continues to evolve with new materials and smart features:
Advanced Materials
Smart Valve Technology
Design Improvements
Environmental Focus
Check valves are simple but essential devices that keep our world running safely and efficiently. From protecting your home's plumbing to ensuring safe operation of massive industrial plants, these "one-way doors" for fluids play a crucial role in modern life.
Understanding the different types of check valves, how to select the right one, and how to install and maintain them properly can save money, prevent problems, and ensure safe operation. Whether you're a homeowner dealing with a sump pump or an engineer designing a new facility, the principles remain the same: choose the right valve for your application, install it correctly, and maintain it regularly.
As technology advances, check valves will become even smarter and more efficient, but their basic purpose will remain unchanged: allowing flow in one direction while preventing dangerous and costly backflow. The next time you turn on a faucet or see a large industrial pipe, remember that somewhere in that system, a check valve is quietly doing its job to keep everything flowing in the right direction.
Q: Can I install a check valve in any position? A: Not all check valves work in every position. Swing and lift check valves are sensitive to installation orientation, while spring-loaded and wafer check valves can typically be installed in any position.
Q: How do I know if my check valve is working properly? A: Signs of a working check valve include no backflow when the system shuts off, proper pressure maintenance, and no unusual noises. If you notice backflow, pressure loss, or chattering sounds, the valve may need attention.
Q: What's the difference between cracking pressure and full-open pressure? A: Cracking pressure is the minimum pressure needed to start opening the valve. Full-open pressure is the pressure needed to completely open the valve for maximum flow.
Q: How often should I replace my check valves? A: This depends on the application, fluid type, operating conditions, and valve type. Some valves last decades with proper maintenance, while others in harsh conditions may need replacement every few years. Follow manufacturer recommendations and monitor performance.
Q: Can check valves prevent water hammer? A: Some types can help reduce water hammer, particularly tilting disc, wafer, and diaphragm check valves. However, traditional swing check valves may actually contribute to water hammer if they close too quickly.
