When you're designing a piping system or troubleshooting a valve failure, the first thing you reach for is a diagram. Check valve diagrams serve three distinct purposes in industrial applications: they show the internal mechanical structure through cross-sectional views, communicate design intent through standardized P&ID symbols, and predict dynamic behavior through performance curves.
This guide breaks down each type of diagram, explains what the visual elements actually mean, and shows you how to apply this information in real-world valve selection and installation.
Internal Structure: Reading Cross-Sectional Diagrams
A cross-sectional diagram cuts through the valve body to reveal the relationship between the disc (or obturator), the seat, and the return mechanism. Understanding these diagrams requires recognizing how pressure differentials create force balance.
The Force Balance Equation
Every check valve diagram illustrates a fundamental principle: the valve opens when upstream pressure overcomes downstream backpressure plus mechanical resistance. The opening condition is expressed as:
Where $A$ represents the effective disc area, $F_{spring}$ is spring preload (if present), and $\theta$ is the installation angle relative to vertical. This equation explains why the same valve performs differently when installed horizontally versus vertically.
Swing vs. Lift MechanismsIn a typical swing check diagram, you'll see the disc hanging from a top-mounted hinge pin. The key feature is the long arc the disc travels, which creates both low pressure drop when fully open and high slam potential when closing rapidly.
Lift check diagrams look similar to globe valves, with an S-shaped flow path. The disc moves vertically within a guide cage. These diagrams show why lift checks create higher pressure drop but offer better resistance to vibration—critical in high-pressure steam applications.
Dual Plate Wafer ConfigurationModern dual plate diagrams show a dramatically shorter body length. Two semicircular discs rotate around a central vertical pin. The diagram shows the spring position both in the open and closed state, illustrating how the mechanical energy stored during opening assists rapid closure. This design reduces water hammer risk by up to 70%.
Nozzle and Axial Flow TypesNozzle check diagrams display a streamlined Venturi-shaped body. The key dimension is stroke length, typically marked as 0.25D to 0.3D. This short stroke, combined with a heavy compression spring, enables closure in milliseconds.
| Valve Type | Stroke Length | Pressure Drop | Slam Potential | Typical Application |
|---|---|---|---|---|
| Swing | Long (90° rotation) | Low (0.5-1.0) | Very High | Municipal water, low-velocity systems |
| Lift | Medium (vertical) | High (5-10) | Medium | High-pressure steam |
| Dual Plate | Short (45° rotation) | Medium (2-4) | Low | Space-limited installations |
| Nozzle/Axial | Very short (0.25D) | Low-Medium (1-3) | Minimal | Pump discharge protection |
P&ID Symbols: The Engineering Language Standard
P&ID symbols communicate valve type, operating principle, and installation requirements without text descriptions.
ANSI/ISA Symbols
The most common ANSI symbol shows a circle with an internal diagonal line or arrow pointing in the flow direction. The arrow tip has a perpendicular bar, representing the blocking function. This mirrors the electronic diode symbol.
- Zigzag Line Modifier: Indicates spring loading. This matters because spring-loaded valves can operate in any orientation, unlike gravity-dependent types.
- Stop-Check Valves: Combine a globe valve icon (T-handle) with the check arrow, indicating manual shutoff capability.
ISO and DIN Variations
ISO 10628 symbols tend toward geometric simplicity (e.g., opposing triangles). Every P&ID includes a legend sheet—always consult it before interpreting symbols, especially on international projects.
Installation Orientation Diagrams: Gravity Vector Analysis
Check valve failures often result from incorrect installation rather than mechanical defects. Diagrams show the relationship between flow, gravity, and components.
Vertical Upflow vs. DownflowUpflow: Gravity assists closure. Works for swing, lift, and dual plate types.
Downflow: A design trap. Gravity pulls the disc open. Diagrams must specify spring-loaded axial or nozzle types where spring force exceeds disc weight.
Horizontal Installationdiagrams include dimension callouts showing required straight pipe lengths (typically 5D upstream). Without this straight run, turbulent flow causes chattering, which destroys hinge pins.
Dynamic Performance Curves: Predicting Water Hammer
These curves plot system deceleration rate against maximum reverse velocity at closure.
Understanding the Curve Axes
- X-axis: System deceleration (m/s²). Depends on pump trip speed.
- Y-axis: Maximum reverse velocity (m/s). Higher velocity = more severe water hammer.
The Joukowsky equation above shows that even small reverse velocity ($\Delta v$) can generate massive pressure spikes ($\Delta H$).
Pressure Drop and Flow Coefficient Curves
Steady-state performance follows this equation:
Critical Detail: Look for the "knee" in the curve indicating minimum velocity. Below this threshold, the disc flutters, causing noise and wear.
| Valve Type | Cv as % of Pipe | Minimum Stable Velocity |
|---|---|---|
| Swing Check | 85-90% | 0.5-0.8 m/s |
| Lift Check | 40-50% | 1.0-1.5 m/s |
| Dual Plate | 70-80% | 0.6-1.0 m/s |
| Nozzle/Axial | 75-85% | 0.8-1.2 m/s |
Exploded View Diagrams for Maintenance
Exploded views separate all components along a common axis, essential for maintenance planning.
Material CalloutsDiagrams include ASTM codes (e.g., "ASTM A216 WCB" for body). These specifications guide replacement part ordering. If a valve in slurry service shows seat erosion, the diagram might reveal a standard bronze seat where Stellite hardface is needed.

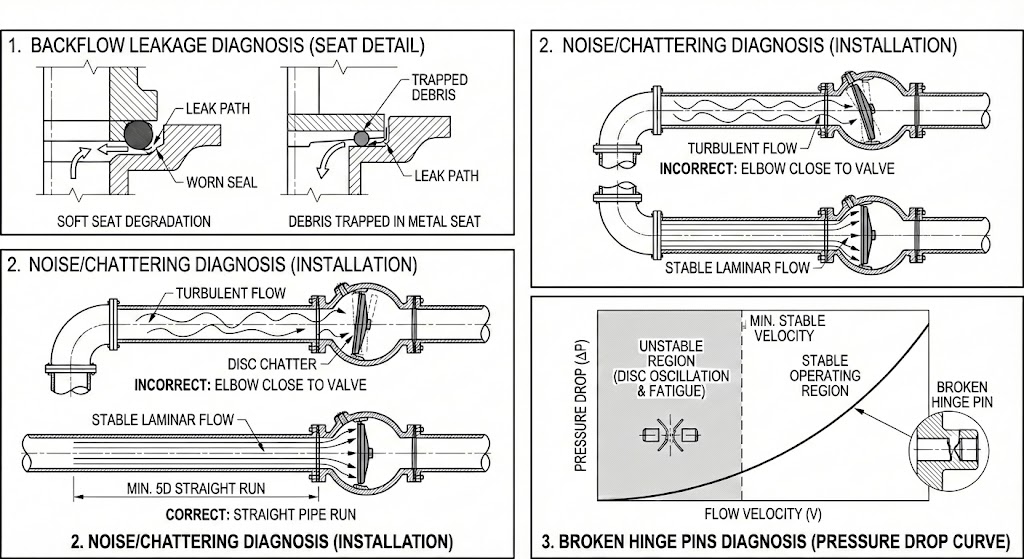

Fault Diagnosis Using Valve Diagrams
- Backflow Leakage: Consult the seat detail on the cross-section. Soft seats may have degraded; metal seats may have trapped debris.
- Noise/Chattering: Check installation diagrams for straight pipe requirements. Turbulent flow from elbows often causes instability.
- Broken Hinge Pins: Check the pressure drop curve. If operating velocity is below the minimum stable velocity, the disc oscillates until fatigue failure.
Applying Diagram Knowledge to Valve Selection
Effective selection synthesizes information from all diagram types:
- P&ID: Identify operating conditions (pressure, temp, fluid).
- Dynamic Curves: Calculate system deceleration and select a valve with low reverse velocity to prevent water hammer.
- Pressure Drop Curves: Ensure adequate $C_v$ and confirm velocity is above the minimum stable threshold.
- Orientation Diagrams: Verify piping layout provides required straight runs.
This systematic approach prevents the most common failures: undersizing, oversizing, wrong type selection, and improper orientation.
