In the world of industrial piping, you essentially have two choices for shutting off flow: you can use a linear motion valve (like a Gate or Globe), or you can use a Quarter-Turn (Rotary) valve. The Butterfly Valve is the king of the rotary family.
If you are dealing with large pipe diameters (DN 50 / 2 inches and up), the butterfly valve is likely your best friend. Why? Because a 12-inch Ball Valve is massive, heavy, and expensive. A 12-inch Butterfly Valve fits between two flanges, weighs a fraction of the amount, and costs significantly less. But they aren't just "cheap alternatives." From basic water lines to critical high-pressure steam, choosing the right geometry is critical.
The Anatomy: How It Works
At its core, the design is deceptively simple. A disc rotates 90 degrees to block the flow. However, the engineering magic lies in the sealing mechanism.
- The Body: Fits between pipe flanges.
- The Disc: The "gate" that stops the flow. Unlike a ball valve, the disc is always present in the flow stream, which creates a slight pressure drop.
- The Stem: Connects the actuator (handle, gear, or pneumatic) to the disc.
- The Seat: The interior lining that the disc presses against to create a seal.
The most common failure point isn't the body; it's the Seat. If you choose an EPDM seat for an oil application, it will swell and seize the valve within hours. Always check your chemical compatibility chart.
The "Big Three": Understanding Offset Geometries
This is the most technical part of selection, and where most mistakes happen. We categorize butterfly valves by how the stem is positioned relative to the disc.
1. Zero Offset (Concentric) - The "General Purpose" WorkhorseThe stem passes directly through the center of the disc and the center of the seat. The disc physically squeezes the rubber seat to seal (interference fit). Ideally suited for water, air, and low-pressure applications (up to Class 150).
2. Double Offset (High Performance) - The "Friction Reducer"Also known as HPBFV. The stem axis is moved slightly away from the disc center and the pipe center. This creates a "Cam Effect," lifting the disc off the seat immediately upon opening, eliminating friction during 90% of travel. Best for chemical processing and higher pressures.
3. Triple Offset (TOV) - The "Zero Leakage" BeastFor high-pressure steam (600 psi+) or abrasive slurries. The "Third Offset" is a complex geometric angle machined into the seat, allowing for Metal-to-Metal torque seating rather than position seating. Capable of extreme temperatures (-196°C to +500°C).

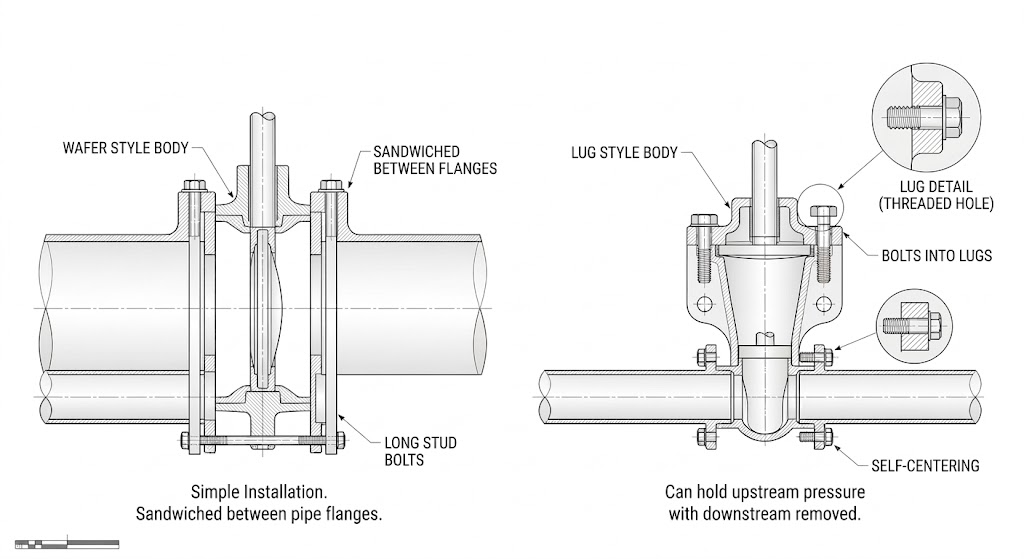

Wafer vs. Lug Style: Which One to Buy?
This is the most common question from procurement. Both function the same internally, but the installation is totally different.
| Feature | Wafer Style | Lug Style |
|---|---|---|
| Installation | Sandwiched between flanges using long stud bolts. | Bolted into threaded inserts (lugs) from both sides. |
| End-of-Line Service | NO. Valve falls out if downstream pipe is removed. | YES. Can hold pressure upstream (Dead-end service). |
| Weight & Cost | Lighter and cheaper. | Heavier and slightly more expensive. |
| Centering | Tricky alignment. | Self-centering (bolts guide alignment). |
Butterfly Valve vs. Ball Valve
Why not just use a Ball Valve everywhere? The answer is Weight and Space. A 12" Ball Valve can weigh over 300 kg, while a 12" Butterfly Valve weighs roughly 50-70 kg.
Use Ball Valves for small diameters (< 2 inches) or when you need zero flow restriction (high flow coefficient \( C_v \)).
Use Butterfly Valves for large diameters (> 4 inches) to save space, weight, and budget.
Trust Anchors: Standards You Must Know
- API 609: The governing standard for design and dimensions for Lug and Wafer valves.
- API 598: The testing protocol (defines allowed leakage).
- ISO 5211: Defines the top flange mounting for actuators. Critical for automation.
Troubleshooting: 2 Common Issues
1. Water Hammer (The Big Bang)If a pneumatic actuator slams a large valve shut in 0.5 seconds, the fluid momentum causes a pressure spike. Fix: Install a speed control valve to slow closing time to 2-3 seconds.
2. Leaking from the StemUsually caused by stem packing loosening due to thermal cycling. Fix: Tighten the packing gland bolts. If it's a maintenance-free O-ring design, a rebuild is likely needed.
For standard water loops, a Concentric Wafer Butterfly Valve with an EPDM seat is the industry standard. But for High Pressure, Steam, or Dirty Fluids, move up to a Double or Triple Offset design. The upfront cost prevents the nightmare of unplanned shutdowns.
