Pneumatic Flow Control Valve Guide

When a pneumatic cylinder moves too fast or struggles with stick-slip motion, the solution usually lies in proper flow control valve selection and installation. A pneumatic flow control valve regulates compressed air flow to control actuator speed, making it essential for any automated system requiring precise motion timing. Unlike their hydraulic counterparts, these valves must handle compressible fluid dynamics where pressure ratios and sonic flow conditions fundamentally change the control characteristics.

How Pneumatic Flow Control Valves Work

The basic function involves creating a variable restriction in the air path. As compressed air passes through the narrowed orifice, pressure energy converts to kinetic energy, producing a pressure drop that reduces downstream flow rate. But compressed air behaves differently than incompressible liquids, introducing complexities that affect control stability.

Compressible Flow Characteristics

When air flows through a restriction, the relationship between upstream pressure ($P_1$) and downstream pressure ($P_2$) determines the flow regime. At moderate pressure drops, flow increases proportionally with the pressure differential. However, once the pressure ratio $P_2/P_1$ drops below a critical value (typically around 0.528 for air), the flow velocity at the throat reaches local sonic speed. This condition, called choked flow or sonic flow, represents a fundamental limit.

In choked flow, further reducing downstream pressure no longer increases mass flow rate. The flow has effectively "maxed out" at the speed of sound through that orifice size. This physical phenomenon provides inherent stability in pneumatic systems.

ISO 6358 Flow Rating Standard

Traditional hydraulic Cv values fall short for pneumatic applications because they're based on incompressible water flow. The ISO 6358 standard addresses this with two parameters:

• Sonic conductance (C): Maximum flow capacity under choked conditions, expressed in dm³/(s·bar).
• Critical pressure ratio (b): The transition point between subsonic and sonic flow (typically 0.2 to 0.5).

The flow equations based on these parameters are:

For choked flow when $P_2/P_1 \le b$:

$$ Q = C \cdot P_1 \cdot K_t $$

For subsonic flow when $P_2/P_1 > b$:

$$ Q = C \cdot P_1 \cdot K_t \cdot \sqrt{1 - \left(\frac{\frac{P_2}{P_1} - b}{1 - b}\right)^2} $$

Where $K_t$ is the temperature correction factor.

Internal Construction and Components

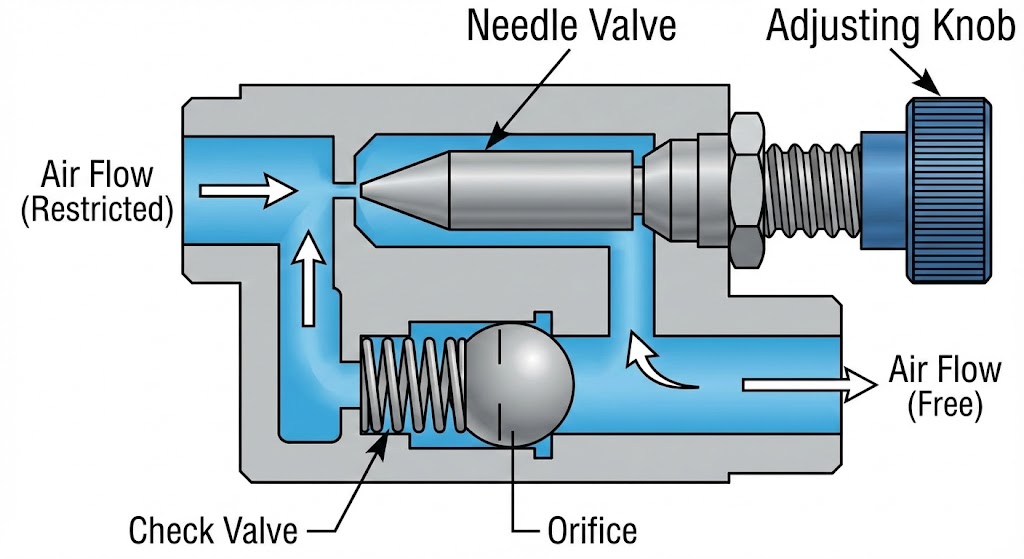

A typical speed controller combines two functions in one compact body: throttling and directional check valve.

Valve Body Materials: Selection depends on the environment. Brass with nickel plating serves general factory needs, while anodized aluminum reduces weight. Stainless steel (304/316) is essential for washdown areas, and engineering plastics (PBT) offer cost-effective lightweight solutions.

Needle Valve Design: High-quality designs use fine-pitch threads (10-15 rotations) for precise control in the 10-50 mm/s range. Taper angle affects the characteristic curve—linear tapers provide proportional changes, while equal percentage tapers offer finer control at low openings.

Check Valve Configuration: The integrated check valve permits free flow in reverse. Lip seal types are compact but may leak at low pressure; ball or poppet types provide tighter shutoff but require more space.

Meter-In vs Meter-Out Control Strategies

Installation position fundamentally affects system behavior. This distinction causes more field problems than any other aspect of pneumatic flow control.

Meter-Out Control (Exhaust Restriction)

In this configuration, the check valve allows free flow into the cylinder while the needle restricts exhaust air leaving the opposite chamber. The working principle creates a pressure cushion. As the piston moves, exhaust air creates back-pressure, improving stiffness and preventing stick-slip.

Meter-In Control (Supply Restriction)

Here the needle restricts incoming air while exhaust vents freely. This often leads to unstable motion ("jerking") because the supply chamber pressure drops when volume increases, causing the piston to stall until pressure rebuilds.

Comparison of Control Characteristics

Characteristic	Meter-Out (Exhaust)	Meter-In (Supply)
Motion Smoothness	Excellent (prevents stick-slip)	Poor (prone to jerking)
Load Handling	Good damping for overrunning loads	Risk of runaway with gravity loads
Speed Stability	High (cushion effect)	Variable (depends on supply)
Best Applications	Double-acting cylinders	Single-acting cylinders

Valve Selection and Sizing Process

Proper sizing prevents undersized valves that limit actuator force and oversized valves that sacrifice speed control resolution.

Start by calculating required flow based on cylinder specifications:

$$ Q = \frac{A \cdot L \cdot 60}{t} $$

Where $A$ is piston area (cm²), $L$ is stroke length (cm), and $t$ is stroke time (seconds).

Pressure Drop: Limit pressure drop across the valve to 0.5-1.0 bar at rated flow. Higher drops waste energy; extremely low drops indicate an oversized valve with poor resolution.

Installation and Troubleshooting

Install the flow control valve as close to the cylinder port as practical. Long tubing runs create compressible volume acting as an air spring, degrading response.

Initial Adjustment: Begin with the needle 3-4 turns open. If stick-slip occurs, verify meter-out control. If motion is too fast, close gradually in quarter-turn increments.

Common Troubleshooting Scenarios

Symptom	Probable Cause	Solution
Jerky motion (stick-slip)	Meter-in control on double-acting cylinder	Reconfigure to meter-out
Speed changes mid-stroke	Supply pressure fluctuation	Install dedicated regulator
No speed control	Contamination or broken needle	Inspect filter; replace valve
Cylinder drifts after stop	Check valve internal leakage	Replace valve; check contamination

Maintenance and Service Life

Pneumatic flow control valves qualify as low-maintenance components, but regular inspection prevents unexpected failures.

As industrial systems evolve, pneumatic flow control adapts by incorporating sensors and network connectivity. While emerging electric actuators offer precision, pneumatics remain superior for high-speed, short-stroke applications, explosive atmospheres, and washdown environments where robust overload tolerance is required.
