With deep insight into customer needs and technological innovation, Huade Hydraulic has successfully developed customized hydraulic valve for high-load conditions of construction machinery.
HD-BLV16-1X balancing valves are used in the field of engineering machinery, especially in the hydraulic system of lifting equipment. Whether it is the precise movement, placement and maintenance of high-load conditions, or the maintenance of the position of the working platform and high-pressure bearing, this hydraulic valve can provide a good solution.
This series of balancing valves can avoid the phenomenon of insufficient oil supply due to actuator stalling, and the product integrates load holding function and safety valve function.

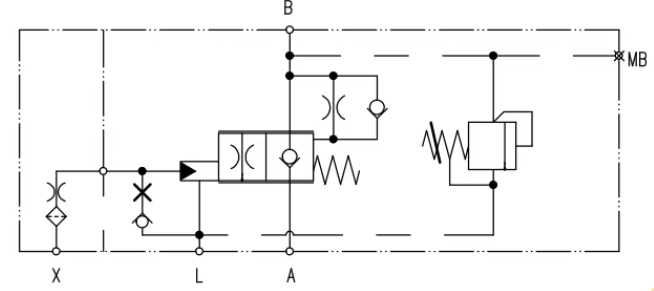

Internal structure diagram of Hydraulic Valve HD-BLV16-1X
Parameter of Hydraulic Valve HD-BLV16-1XSizeHD-BLV16-1X
| Size | HD-BLV16-1X | |
| Maximum working pressure | 420bar | |
| Maximum pressure at A port (inlet/return oil) | 420bar | |
| Maximum pressure at port B (actuator/load) | 420bar | |
| Maximum pilot pressure at port X | 420bar | |
| Maximum flow | 250L/min | |
| Flow direction | A→B, free flow through non-return valve | |
| B→A, controlled flow | ||
| Control method | Hydraulic control ratio | |
| Open ratio | 113:1 | |
| Oil temperature(℃） | -20~80℃ | |
| Size | SAE3/4''6000psi | |
| Oil port size | A、B | SAE3/4'' 6000psi |
| X、L、L1、MB | G1/4'' | |
As a distributor of Huade hydraulic, we supply Huade brand hydraulic directionla valves, pressure valves, folw valves, proportional valves and pumps with a good price.
If you have any interested in our hydraulic valves, please feel free to contact us.
