In the field of industrial automation, hydraulic and pneumatic systems are like the blood vessels and respiratory system of the human body, and the directional control valve is a precision switch that controls the flow direction of these "lifelines". Whether it is the movement of the bucket of an excavator or the flipping of the robotic arm on the automated production line, this seemingly simple but crucial component is indispensable.
1. The "ID card" of the directional control valve

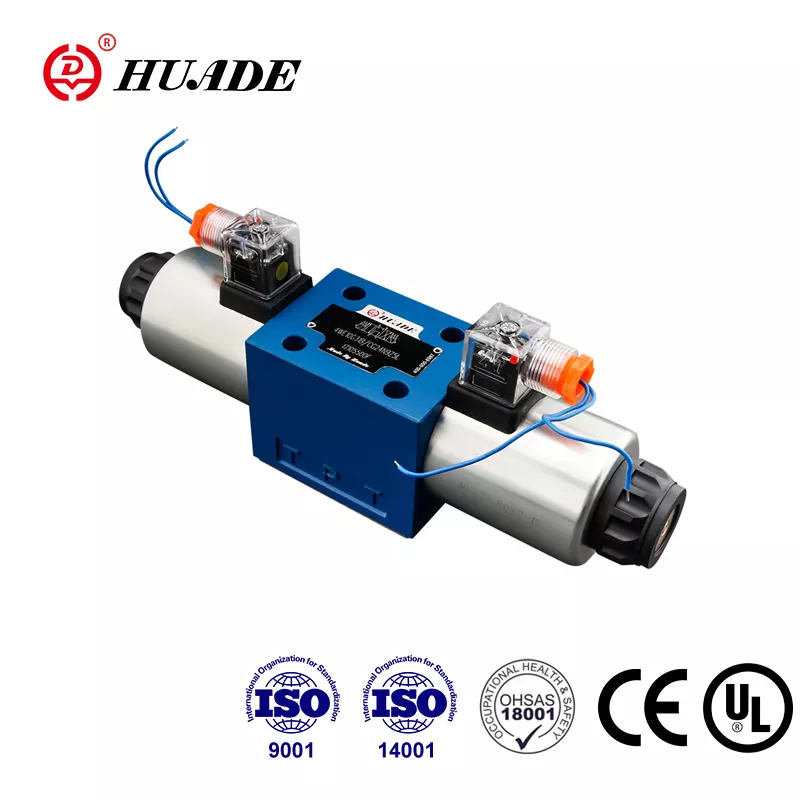

The English abbreviation of the directional control valve DCV, known as the "reversing valve" in the world, its core task is to direct the flow path of oil or gas like a traffic policeman by changing the position of the valve core. For example, when the electromagnet is energized, the valve core will slide to the left with a "clang" sound, and the hydraulic oil will go straight from port A to port B; after the power is off, the valve core will reset, and the oil circuit will switch direction instantly. This design allows the actuator to flexibly combine various actions like Lego blocks.
2. Hydraulic VS Pneumatic: Same family, different fates
Although both control the direction of fluid, hydraulic valves and pneumatic valves are like heavy trucks and sports cars - the former has to withstand high pressure (usually 21MPa), and the valve core must be made of steel to be hardcore enough; the latter has a working pressure of only about 0.6MPa, and the aluminum alloy valve body can easily handle it. I remember that during the last workshop commissioning, the worker mistakenly installed the pneumatic valve into the hydraulic system, and the valve core was directly deformed by the high-pressure oil. The scene was comparable to the explosion of a popcorn machine.
3. Neutral function: hidden "trap"
Improper selection of the neutral function of the three-position reversing valve can turn the equipment into a "drawing" scene in minutes. For example, if the injection molding machine that needs to maintain pressure is selected with the O-type neutral position (fully enclosed), a slight wear of the valve core will cause the mold pressure to leak; and the Y-type neutral position (unloading) will cause the system pressure to plummet. Last year, a machine tool in our factory frequently alarmed because of this. Later, it was discovered that the purchase drawing mislabeled the H-type neutral position as the Y-type. This pit made the maintenance worker change the drawing overnight.
4. "Flip" and "rescue" in actual combat
Solenoid valve stuck: dusty environment can cause the valve core to get stuck. At this time, don't rush to replace the new valve. Use a cleaning agent to flush the valve body first, which can often save thousands of yuan.
Sealing ring aging: rubber sealing rings harden in half a year under high temperature conditions, and the life span is doubled by switching to fluororubber.
Hydraulic shock: The "water hammer effect" caused by sudden reversal can crack the pipeline, and adding an accumulator can gently resolve it.
5. Future trend: intelligent crossroads
Now there are intelligent valves that can self-diagnose faults, monitor flow and pressure in real time through built-in sensors, and even predict valve core wear. However, the cost is still too high at this stage, and our small factory cannot afford it for the time being, but it is estimated that it will become standard within five years.
Conclusion
Directional control valves are like "traffic lights" for industrial equipment. When selecting, you can't just look at the price, but you have to combine the "road conditions" such as system pressure, response speed, and ambient temperature. Next time when you see the hydraulic cylinder gracefully retracting, don't forget the "traffic commander" who is silently directing behind it.
