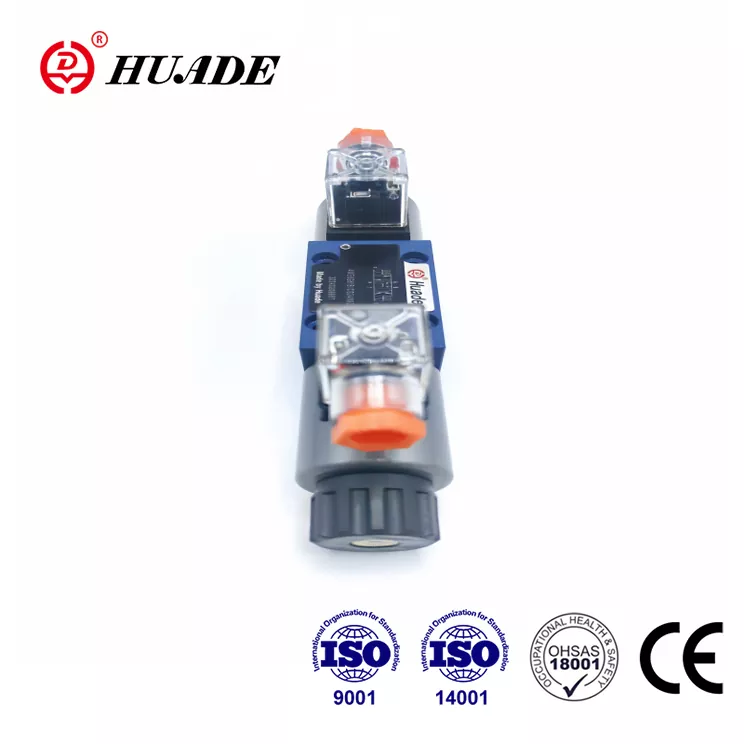

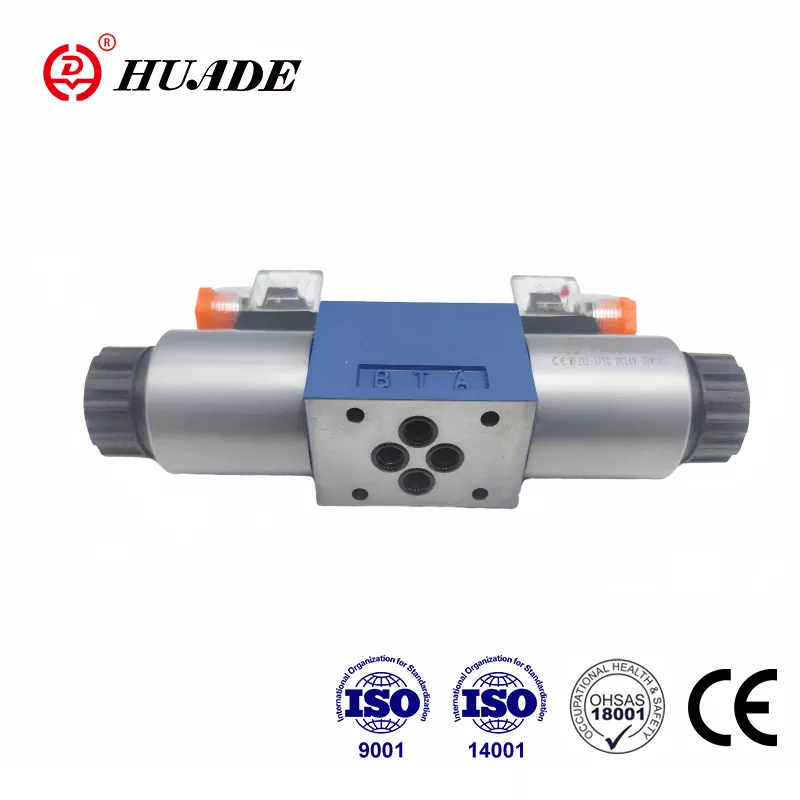

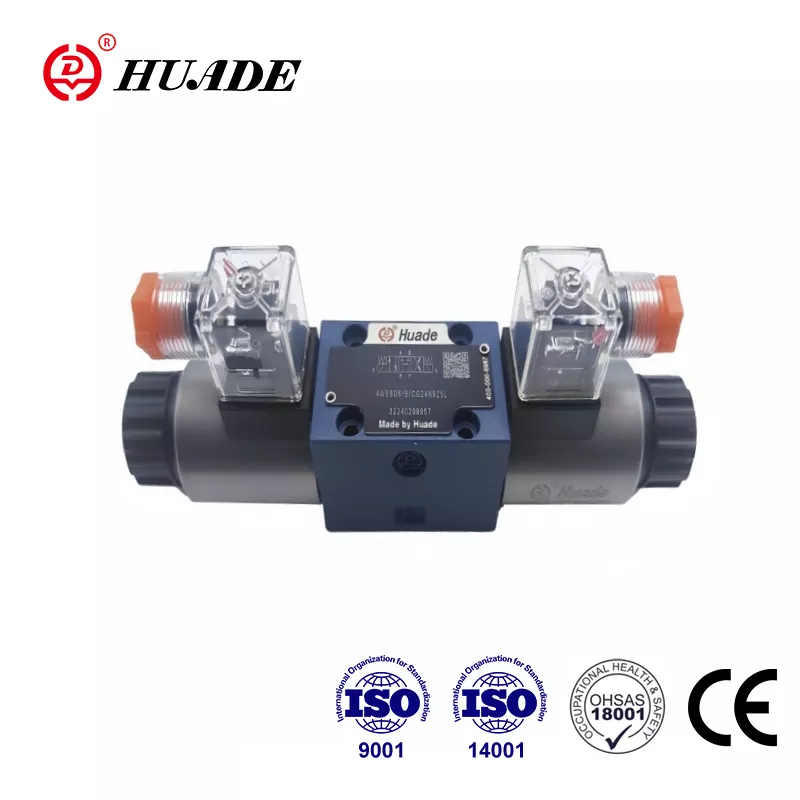

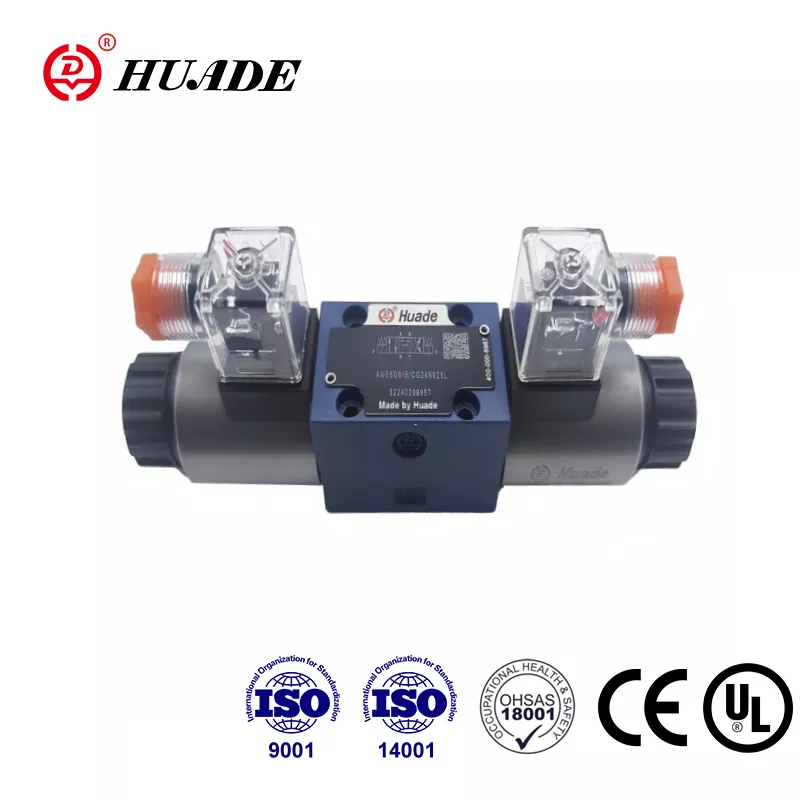

Huade Hydraulics' 4WE6 series uses the same production standards as Rexroth, which can replace Rexroth directional valve 4WE6 series. Huade’s 4WE6 series is a solenoid-operated, 4-way/3-position directional control valve designed as a direct replacement for Rexroth's equivalent series. With identical porting dimensions and performance parameters, directional valve 4WE6 ensures seamless integration into existing hydraulic systems while offering 20-30% cost savings.
| Hydraulic | |||
| Max.operating pressure Ports A, B, P (Mpa) | up to 35.0 | ||
| Port T (㎫) | 21(-);16(～) | ||
| with symbols A and B, port T must be used as a drain port if the operating pressure is above the permitted tank pressure. | |||
| Max.flow (L/min) | 80(-);60(～) | ||
| Pressure fluid | Mineral Oils or Phosphate Ester | ||
| Viscosity range (mm2/s) | 2.8~500 | ||
| Pressure fluid temperature range （℃） | -30～+80 | ||
| Degree of contamination | Maximum permissible degree of contamination of hydraulic fluid to NAS 1638 class9. We therefore recommend a filter with a minimum retention rate of β10≥75 | ||
| Electrical | |||
| Voltage type | DC | AC 50/60Hz | |
| Available voltages (V) | 12, 24, 42, 60, 96 | 42, 110, 120, 230 | |
| 110, 180, 205, 220 | 50/60Hz | ||
| Power consumption (W) | 30 | ||
| Holding power (VA) | - | 50 | |
| Switch-on power (VA) | - | 220 | |
| Duty | continuous | ||
| Switching time to IS0 6403 | ON (ms) | 25 to 45 | 10 to 20 |
| OFF (ms) | 10 to 25 | 15 to 40 | |
| Protection to DIN | IP 65 | ||
| Switching frequency (cycles/h) | up to 15000 | up to 7200 | |
▶Type: Solenoid-actuated, spool-type directional valve
▶Positions/Ports: 4-way, 3-position
▶Pressure Rating: Up to 315 bar
▶Flow Capacity: up to 80 L/min
▶Voltage Options: 24V DC / 110V AC / 220V AC
▶Port Size: NG6
▶Seal Materials: NBR/FKM
Advantages vs. Rexroth
✔Huade's directional valves 4WE6 can fully interchangeable with the same series offered by Rexroth, such as matching mounting dimensions, porting, and electrical connectors.
✔ Huade's directional valves 4WE6 are more cost-efficient in terms of localized production reduces lead time and pricing.
✔ Huade has strict QC inspection system, which every products will be 100% tested for leakage, pressure stability, and cycle life.
Typical Applications
Huade's diectional control vaves 4WE6 are wildly used in mobile hydraulics,industrial machinery and renewable energy systems ect.

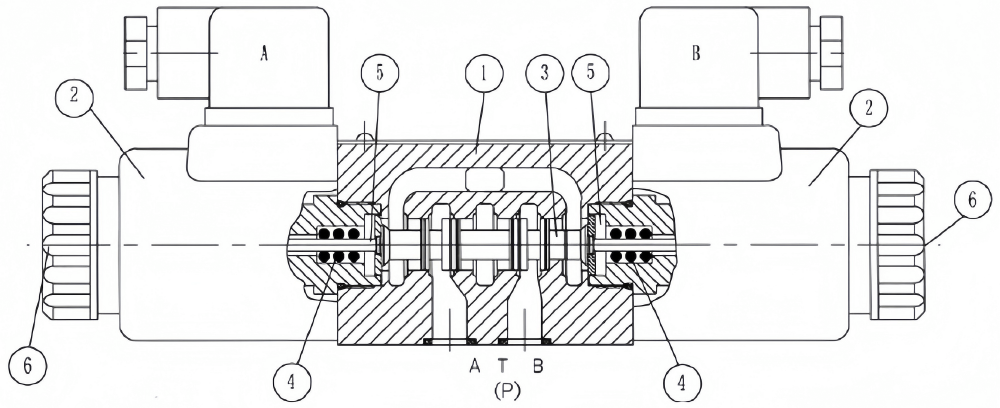

Structure diagram of 4WE6 61B

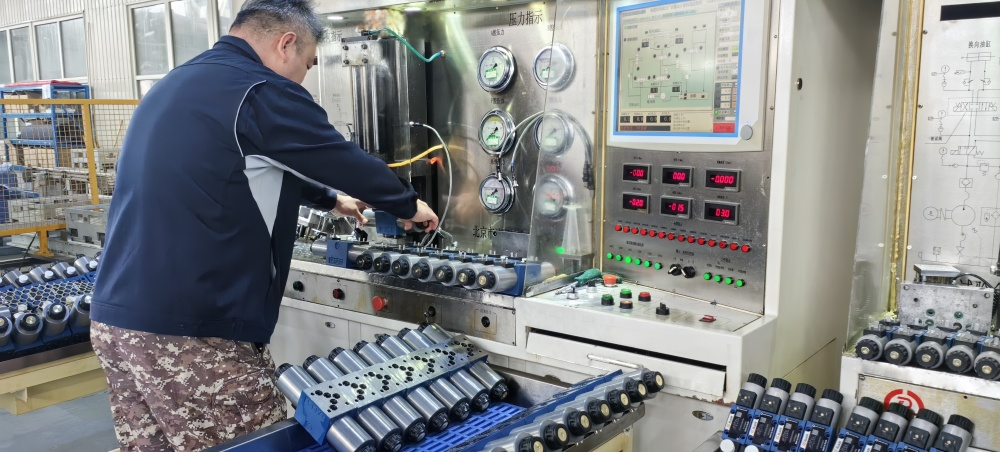

Stress testing

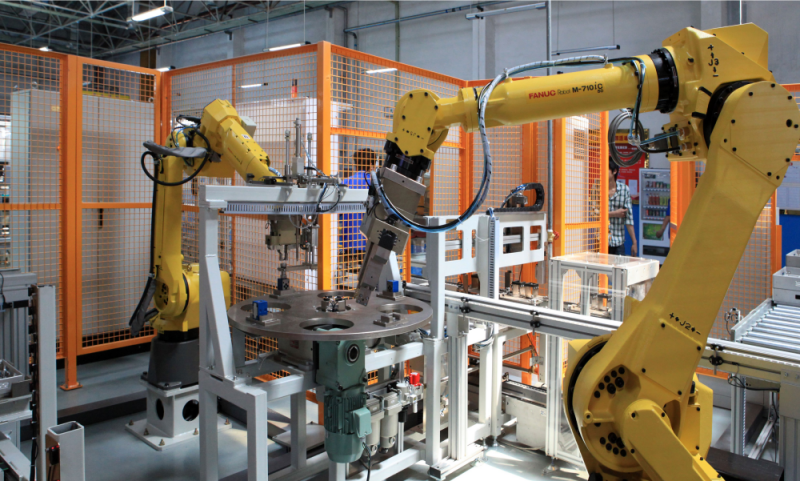

Automatic manipulator
