If the hydraulic pump is the heart of your system, the Directional Control Valve (DCV) is the brain. I remember explaining this to an apprentice on a muddy construction site years ago. He thought the valve just "opened" the pipe. It’s not that simple. Think of a DCV like a railway switchyard. It doesn't just start and stop trains (fluid); it physically diverts them onto different tracks to determine where the energy goes.
But here is the engineering reality: A DCV is technically a variable orifice. When you shift that lever, you are managing energy state changes. We use the Bernoulli principle here. As fluid passes through the valve restrictions, pressure energy transforms into kinetic energy and heat.
$$ \Delta P = K \cdot \frac{\rho \cdot Q^2}{2 \cdot A^2} $$Where \( \Delta P \) is the pressure drop and \( Q \) is the flow rate. Why does this formula matter to you? Because if you undersize your DCV, that \( \Delta P \) skyrockets, your oil overheats, and your seals bake.
Spool vs. Poppet: Choosing Your Mechanism
In my 20 years of designing circuits, I’ve seen expensive failures simply because the wrong type of valve interior was chosen.
Imagine a cylindrical metal bar (the spool) sliding inside a sleeve. It has "lands" (high spots) and "grooves."
- Pros: Incredible logic flexibility. One spool can switch between 4 or 5 different ports easily.
- The "Gotcha": To slide, it needs clearance (usually 2–10 microns). This means internal leakage is inevitable. A spool valve will never hold a heavy load up indefinitely; the cylinder will drift.
Think of a cone plugging a hole.
- Pros: Zero leakage. The higher the pressure, the tighter it seals.
- The "Gotcha": They are clunky for complex logic. We usually use them for simple on/off tasks or as "Logic Cartridges" in massive hydraulic presses.
Decoding the "Centers": ISO 1219 Symbols Explained
When you look at a hydraulic schematic, the "Middle" box of the valve symbol (the Neutral Position) tells you everything about how that machine behaves when the operator lets go of the joystick. Selecting the wrong center is the #1 cause of overheating I see in retrofits.
1. The Open Center (Type H or M)
What it does: All ports (P, T, A, B) or just P and T are connected.
Engineering Logic: It creates a path of least resistance. The pump flow dumps straight back to the tank at low pressure.
Best For: Fixed displacement pumps (Gear pumps). It keeps the system cool when idling.
What it does: All ports are blocked. P is a dead end.
Engineering Logic: It traps oil in the cylinder (holding the load) and blocks the pump.
Best For: Variable displacement piston pumps or systems with an accumulator. Warning: If you put this on a fixed gear pump without a relief valve, you will blow a hose or stall the engine in seconds.
What it does: Pressure is blocked, but A and B connect to the Tank.
Real World Application: This is essential for Hydraulic Motors. If you stop a spinning motor by blocking the ports (Closed Center), the inertia creates a "water hammer" effect that destroys seals. A Float Center allows the motor to coast to a stop, sucking oil from the tank to prevent cavitation.
Troubleshooting Cheat Sheet: Why Is My Valve Acting Up?
When a machine goes down, you don't have time for theory. You need diagnostics. Most valve failures aren't the valve's fault—it's the oil. If your ISO 4406 cleanliness code creeps above 19/17/14, you are inviting "silting," where fine particles jam the spool against the bore.
| Symptom | Technical Root Cause | Field Verification & Fix |
|---|---|---|
| Cylinder Drifts (Sinks) | Excessive Spool Clearance: Radial wear allows oil to bypass lands (Internal Leakage > 50cc/min). |
|
| Solenoid Buzzing / Burnout | Armature Stiction: Contaminants prevent armature seating. AC coils draw massive inrush current indefinitely. |
|
| "Morning Sickness" | Varnish / Sludge: Oxidation byproducts create sticky residue when cold. |
|
| Sluggish Shifting | Pilot Pressure Too Low: On Electro-Hydraulic valves, pilot pressure is below minimum (10-12 bar). |
|

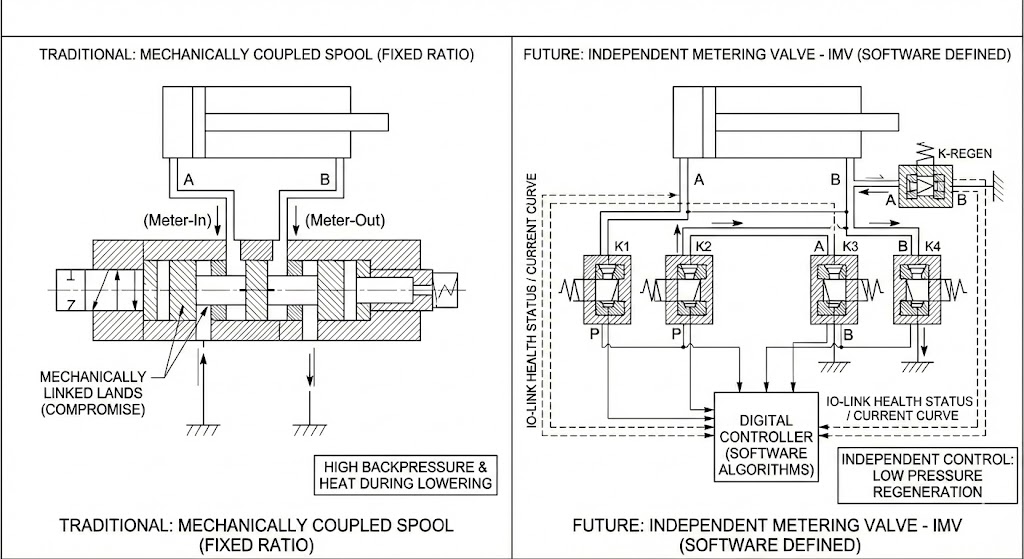

The Future: Intelligent Valves & Independent Metering
If you are still designing systems using only standard 4-way valves, you are missing the biggest shift in our industry: Software-Defined Hydraulics.
Traditional valves mechanically couple the "Meter-in" (flow to cylinder) and "Meter-out" (flow to tank) edges. It's a compromise. If you want to lower a heavy load smoothly, you have to choke the return flow, which generates massive backpressure and heat.
Instead of one spool, we use four high-speed robotic poppet valves managed by a controller. The software decides exactly how much to open the intake vs. the exhaust.
The Result: We can use gravity to lower loads without running the pump at high pressure (Regeneration). Modern smart valves (like those with IO-Link) broadcast their own health status, telling you before the solenoid burns out by monitoring the current curve.
