Flow control valves are critical components in industrial systems, HVAC applications, and various fluid handling processes. These devices regulate the flow rate of liquids, gases, or steam through pipelines, ensuring optimal system performance and efficiency. When a flow control valve begins to malfunction, it can significantly impact the entire system's operation, leading to reduced efficiency, increased energy costs, and potential equipment damage.
Understanding the symptoms of a failing flow control valve is essential for maintenance professionals, engineers, and facility managers. Early detection of these issues can prevent costly downtime, extend equipment life, and maintain system safety. This comprehensive guide explores the key indicators that signal a flow control valve may be deteriorating or failing.
One of the most obvious signs of a malfunctioning flow control valve is irregular flow patterns throughout the system. When operating correctly, a flow control valve maintains consistent flow rates according to its settings. However, a failing valve may exhibit erratic behavior, causing flow rates to fluctuate unpredictably.
These irregular patterns often manifest as sudden surges or drops in flow rate, even when system demand remains constant. You might notice that the flow meter readings vary significantly over short periods, or that downstream equipment receives inconsistent supply volumes. This inconsistency can be particularly problematic in processes requiring precise flow control, such as chemical manufacturing or water treatment facilities.
The irregular flow patterns typically worsen over time as the valve's internal components continue to deteriorate. What might start as minor fluctuations can eventually develop into complete flow interruptions or dangerous pressure spikes that threaten system integrity.
Flow control valves directly impact system pressure, so pressure-related symptoms are common indicators of valve problems. A failing valve may cause unexpected pressure drops across the system, particularly downstream of the valve location. These pressure drops occur when the valve fails to maintain its proper opening position or when internal components become obstructed.
Conversely, some valve failures result in excessive pressure buildup, especially when the valve becomes stuck in a partially closed position. This condition forces the system to work harder to maintain desired flow rates, leading to increased energy consumption and potential damage to pumps, compressors, or other pressure-generating equipment.
Pressure fluctuations are another telltale sign of valve problems. These variations often correspond with the irregular flow patterns mentioned earlier, as the valve struggles to maintain consistent performance. Monitoring pressure gauges both upstream and downstream of the valve can provide valuable diagnostic information about valve condition.
A properly functioning flow control valve operates relatively quietly, producing only minimal sound from normal fluid flow. When valves begin to fail, they often generate distinctive noises that can help identify the specific problem. These acoustic symptoms are particularly useful because they're often noticeable before other symptoms become apparent.
Cavitation noise is one of the most common sounds associated with failing flow control valves. This phenomenon occurs when rapid pressure changes cause vapor bubbles to form and collapse within the fluid stream. The resulting sound is typically described as crackling, popping, or grinding, similar to gravel flowing through the pipe. Cavitation not only creates noise but also causes significant damage to valve components through erosion and vibration.
Whistling or screeching sounds often indicate that the valve seat or disc has become damaged or warped, creating irregular flow paths that generate turbulence. These high-pitched noises usually intensify as flow rates increase and can be accompanied by vibrations that transmit through the piping system.
Chattering or hammering sounds suggest that the valve components are loose or that the actuator is struggling to maintain proper valve position. This condition often develops when internal springs weaken or when the valve stem becomes worn, allowing excessive movement of internal components.
External leakage is perhaps the most immediately obvious symptom of flow control valve failure. This leakage can occur at various points around the valve assembly, each indicating different types of internal problems. Stem leakage, visible around the valve stem where it exits the valve body, typically indicates worn packing or seal failure.
Body leakage, appearing as fluid seepage from the valve body itself, suggests more serious internal damage or corrosion. This type of leakage often indicates that the valve body has developed cracks or that internal components have failed catastrophically. Body leakage is particularly concerning because it can rapidly worsen and potentially lead to complete valve failure.
Seat leakage, while not always visible externally, can sometimes be detected through system performance monitoring. This internal leakage occurs when the valve fails to close completely, allowing fluid to continue flowing even when the valve is supposedly in the closed position. Seat leakage often manifests as difficulty maintaining system pressure or unexpected flow readings when the valve should be closed.
Modern flow control valves often incorporate electronic or pneumatic actuators that respond to control signals from automated systems. When these valves begin to fail, they frequently exhibit problems with control response that can significantly impact system performance.
Sluggish response is a common early symptom, where the valve takes longer than normal to respond to control signals. This delay can disrupt process control loops and lead to system instability. The sluggish response often results from worn actuator components, contaminated control air systems, or increased friction in the valve mechanism.
Overshooting is another control-related symptom where the valve moves beyond its intended position before settling. This behavior can cause system oscillations and make it difficult to maintain stable operating conditions. Overshooting often indicates problems with the valve's feedback mechanism or wear in the positioning system.
Complete loss of control response represents a more severe failure mode where the valve fails to respond to control signals entirely. This condition usually requires immediate attention, as it can leave the system unable to regulate flow effectively.
Flow control valve problems often manifest as overall system efficiency losses that may not be immediately obvious. These efficiency reductions typically develop gradually, making them easy to overlook until they become significant enough to impact operating costs or system performance.
Increased energy consumption is a common indicator of valve problems. When valves fail to maintain proper flow control, pumps and compressors must work harder to maintain desired system performance. This increased workload translates directly into higher energy bills and accelerated wear on these critical system components.
Temperature variations throughout the system can also indicate valve problems, particularly in HVAC applications. Failing flow control valves may allow too much or too little fluid flow to heat exchangers, resulting in inadequate heating or cooling performance and increased energy consumption to maintain desired temperatures.

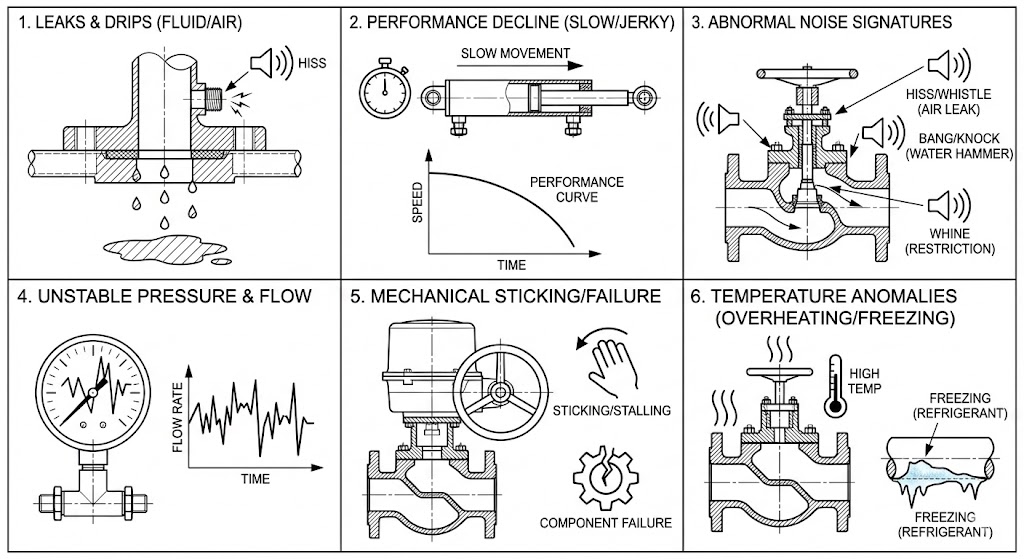

Recognizing the symptoms of a failing flow control valve is crucial for maintaining system reliability and efficiency. The signs discussed in this article – irregular flow patterns, pressure anomalies, unusual noises, visible leakage, control response issues, and reduced system efficiency – often appear in combination as valve condition deteriorates.
Early detection of these symptoms allows for planned maintenance interventions that can prevent more serious problems and reduce overall maintenance costs. Regular monitoring of system performance parameters, combined with visual and auditory inspections, provides the best approach for identifying valve problems before they cause system failures.
When multiple symptoms appear simultaneously, it's often more cost-effective to replace the entire valve rather than attempting repairs. Modern flow control valves offer improved reliability and efficiency compared to older designs, making replacement a worthwhile investment in many cases. By staying alert to these warning signs and implementing appropriate maintenance strategies, facility managers can ensure their flow control systems continue to operate safely and efficiently for years to come.
