You are staring at a hydraulic schematic. It’s covered in lines and squares, and right in the middle is a symbol that looks like a maze inside a box. You need to order a replacement, but the part number is worn off. Is it a "Motor Spool"? Is it "Closed Center"?
If you guess wrong, your system overheats, or worse—the load drops unexpectedly. I’ve spent 20 years troubleshooting hydraulic circuits, from injection molding machines to mobile excavators. I’ve seen thousand-dollar pumps destroyed because someone installed a Closed Center valve on a fixed-displacement system.
This guide will help you decode ISO symbols, understand the difference between Spool and Poppet architecture, and select the right Directional Control Valve (DCV) for your application.
1. The Internal Architecture: Spool vs. Poppet
Before we look at the "ways" and "positions," you need to decide on the physical construction. This is the most common fork in the road for system designers.
Spool Valves (The Sliding Seal)Most standard valves (NFPA D03 / ISO 4401-03) are spool valves. A cylindrical spool slides inside a machined bore.
- The Reality: They rely on a microscopic clearance to move, meaning they always leak a tiny amount internally ("quiescent flow").
- The Risk: If oil is dirty (ISO 4406 > 19/17/14), silt trapped in the gap causes sticking or solenoid burnout.
Think of these like car engine valves. A cone or ball presses against a seat.
- The Reality: Zero Leak (bubble-tight). The higher the pressure, the harder they seal.
- The Application: Essential for load-holding functions where a cylinder cannot drift.
| Feature | Spool Valve (Sliding) | Poppet Valve (Seating) |
|---|---|---|
| Leakage | Small internal leakage | Zero Leakage (Bubble-tight) |
| Pressure Limit | Up to 350 Bar | Up to 700 Bar+ |
| Contamination Sensitivity | High (Prone to Silting) | Low (Self-cleaning) |
| Response Time | Moderate (20-50ms) | Fast (<15ms) |
| Best Use Case | Complex logic (4-way) | Load holding & Safety |
2. Decoding the Numbers: Ports (Ways) vs. Positions
When you see "4/3 Directional Valve," it’s just a fraction.
- Top Number (Ways/Ports): How many pipes connect to the valve? (P, T, A, B).
- Bottom Number (Positions): How many "states" can the valve switch to?
- 2/2 Way: On/Off switch. Used as a safety "Dump Valve".
- 3/2 Way: Primarily for Single-Acting Cylinders (gravity/spring return).
- 4/2 Way: For Double-Acting Cylinders. Note: No "Stop" button; cylinder is always moving if pump is on.
- 4/3 Way: The industry standard. Has Extend, Retract, and a Center Neutral position.
3. Center Types: The Critical Choice for 4/3 Valves
This is where most field mistakes happen. Your choice here dictates heat generation and machine safety.
A. Open Center (Motor Spool)
Function: All ports connected to Tank. Actuator floats.
Why? To stop hydraulic motors gently ("coast") to avoid pressure shock.
Function: All ports blocked. Everything stops dead.
Warning: Requires Variable Displacement Pump. Using with a fixed pump causes massive overheating as flow blows over the relief valve.
Function: Cylinder locked (A/B blocked), Pump dumps to Tank (P to T).
Why? Standard for Fixed Displacement Gear Pumps. Keeps oil cool at idle while holding load.
Function: P blocked. A/B connect to T.
Why? Snowplows/loaders where the bucket must contour to the ground.
| Center Type | Pump Compatibility | Actuator Status | Typical Application |
|---|---|---|---|
| Open Center | Fixed Displacement | Free (Coasting) | Hydraulic Motors |
| Closed Center | Variable (Pressure Comp) | Held (Locked) | CNC, Multi-actuator |
| Tandem Center | Fixed Displacement | Held (Locked) | Log splitters |
| Float Center | Variable | Free (Floating) | Snowplows |

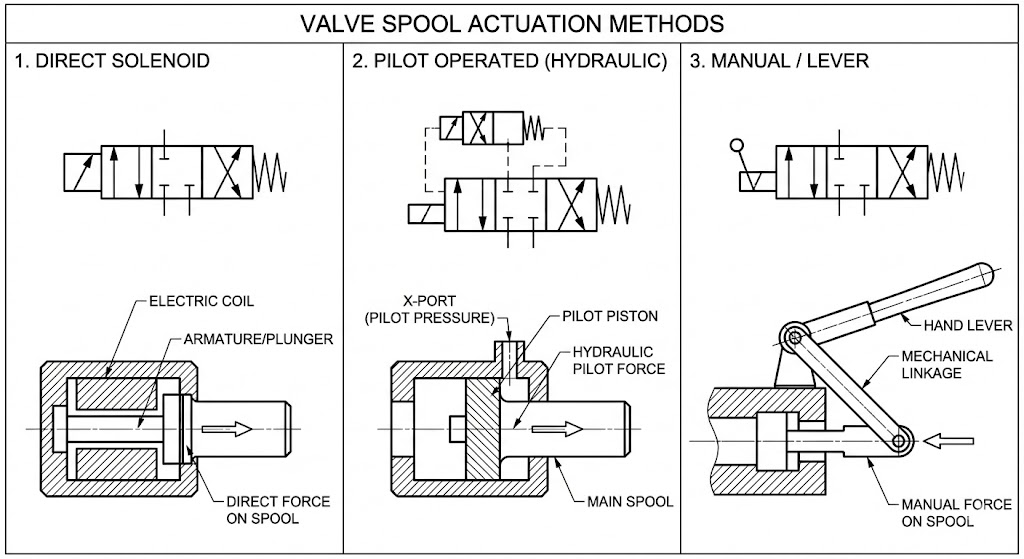

4. Actuation: How Do We Move the Spool?
- Solenoid (Direct): Electric coil. Limited to D03/D05 sizes due to flow forces.
- Pilot Operated: Uses a small valve to hydraulically shift a larger spool. Pro Tip: Check pilot pressure in Open Center systems!
- Manual/Lever: Simple and tactile. King for mobile equipment to "feather" flow.
5. The Hidden Trap: Pneumatic vs. Hydraulic DCVs
Hydraulics (4 Ports): P, T, A, B. Returns oil to a single tank header.
Pneumatics (5 Ports): 1, 2, 4, 3, 5. Why? Because air is compressible. Dual exhausts (3 & 5) allow independent speed control for extend vs. retract strokes using flow control mufflers.
6. Summary: Your Selection Checklist
Before selecting a part number, verify:
- Flow Rate: Check Cv/flow curve, not just port size.
- Actuator Type: Single Acting (3/2) vs Double Acting (4/3).
- Pump Type: Fixed (Tandem) vs Variable (Closed).
- Mounting: ISO 4401-03 (D03) vs ISO 4401-05 (D05).
