Flow control valves are essential components in countless industrial, commercial, and residential applications, serving as the gatekeepers that regulate the movement of fluids through piping systems. From water distribution networks to complex chemical processing plants, these devices ensure that liquids and gases flow at precisely the right rates to maintain optimal system performance. Understanding the most common types of flow control valves and their applications is crucial for engineers, technicians, and anyone involved in fluid system design and maintenance.
When discussing the most common type of flow control valve, the globe valve consistently emerges as the clear winner. Globe valves have earned their reputation as the go-to choice for flow control applications across numerous industries due to their exceptional versatility, reliability, and precise control capabilities. Their distinctive spherical body shape, from which they derive their name, houses a movable disk that can be positioned to regulate flow with remarkable accuracy.
The prevalence of globe valves in flow control applications stems from their fundamental design advantages. Unlike other valve types that are primarily designed for on/off service, globe valves excel at throttling applications where precise flow modulation is required. Their linear motion stem allows for fine adjustments, making them ideal for applications where operators need to achieve specific flow rates or maintain consistent pressure differentials.

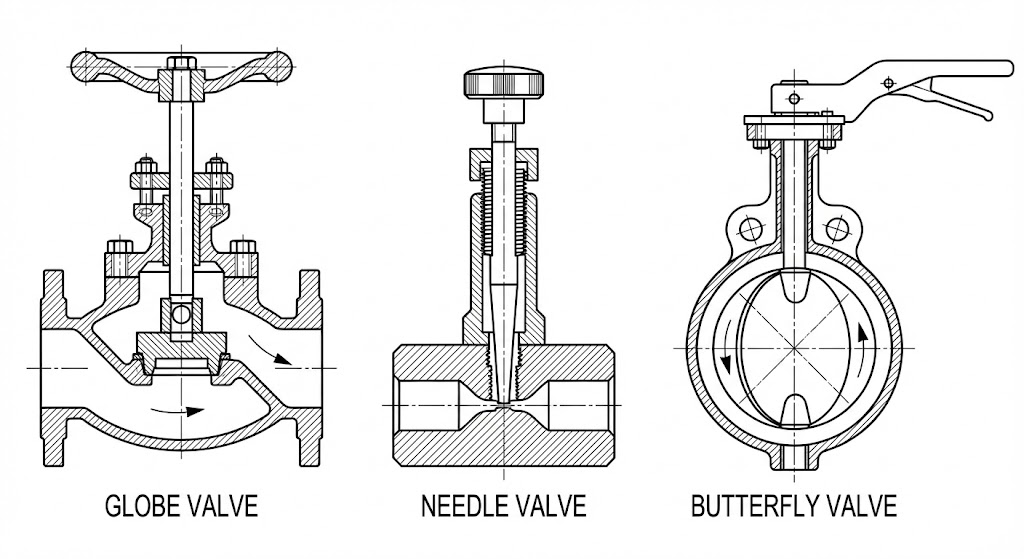

Globe valves operate on a simple yet effective principle. The valve body contains a baffle or seat that divides the internal cavity, creating a tortuous flow path. A movable disk, connected to a stem that extends through the valve bonnet, can be raised or lowered to control the opening size between the disk and seat. This design creates what engineers call a "variable orifice," allowing for precise flow control across a wide range of conditions.
The disk movement in globe valves is perpendicular to the pipe centerline, which distinguishes them from other valve types like gate valves where the disk moves parallel to the flow. This perpendicular motion enables excellent throttling characteristics because the disk can be positioned at any point between fully open and fully closed, providing infinite positioning capability within its travel range.
Modern globe valves incorporate various disk designs to optimize performance for specific applications. Flat disks provide tight shutoff but may experience higher pressure drops, while contoured or parabolic disks offer improved flow characteristics with reduced turbulence. Some designs feature composition disks that combine metal and soft materials to achieve both durability and sealing effectiveness.
The versatility of globe valves has made them indispensable across virtually every industry that handles fluid systems. In power generation facilities, globe valves control steam flow to turbines, regulate cooling water systems, and manage fuel delivery to boilers. Their ability to handle high-pressure, high-temperature conditions makes them particularly valuable in these demanding environments.
Chemical processing plants rely heavily on globe valves for their precise control capabilities. These facilities often require exact flow rates to maintain proper chemical reactions, and globe valves provide the accuracy needed to achieve optimal process conditions. Their robust construction also withstands the corrosive nature of many chemical compounds when properly selected and maintained.
Water treatment facilities utilize globe valves throughout their distribution systems, from raw water intake to finished water delivery. Municipal water systems depend on these valves to regulate pressure and flow rates, ensuring consistent service to residential and commercial customers. The reliability of globe valves in continuous service makes them ideal for these critical infrastructure applications.
HVAC systems in commercial and residential buildings commonly employ globe valves for temperature control applications. These valves regulate hot and cold water flow through heating and cooling coils, maintaining comfortable indoor environments while optimizing energy efficiency. Their precise control characteristics enable sophisticated building automation systems to maintain tight temperature tolerances.
Several key advantages explain why globe valves have become the most common choice for flow control applications. Their excellent throttling characteristics top the list, as the disk design provides smooth, linear flow control throughout the valve's operating range. This predictable behavior makes system design and control much more straightforward compared to valves with non-linear flow characteristics.
The tight shutoff capability of globe valves represents another significant advantage. When properly maintained, these valves can achieve bubble-tight closure, making them suitable for applications where complete flow isolation is required. This dual capability of precise throttling and reliable shutoff eliminates the need for separate control and isolation valves in many applications.
Globe valves also offer superior resistance to erosion and wear compared to other valve types. The flow path design directs fluid forces in ways that minimize damage to critical sealing surfaces. This durability translates to longer service life and reduced maintenance requirements, making globe valves cost-effective over their operational lifetime.
The standardization of globe valve designs has created economies of scale that benefit end users. Manufacturers produce these valves in large quantities, driving down costs and ensuring ready availability of replacement parts. This standardization also simplifies maintenance procedures and reduces the inventory requirements for spare parts.
Despite their many advantages, globe valves do have certain limitations that must be considered in application selection. The primary drawback is their relatively high pressure drop compared to other valve types. The tortuous flow path that enables excellent control characteristics also creates turbulence and energy losses that can impact system efficiency.
The pressure drop across globe valves varies significantly with disk position, being highest at partial openings where the flow area is most restricted. This characteristic requires careful consideration during system design to ensure adequate pressure is available throughout the operating range. In applications where pressure drop is critical, alternative valve types or larger globe valves may be necessary.
Globe valves also typically require more actuator force to operate than some other valve types, particularly in high-pressure applications. The disk design means that line pressure acts on the full disk area, creating significant forces that must be overcome during operation. This can increase the cost and complexity of automated valve systems.
The flow control valve industry continues to evolve, with manufacturers developing new materials, designs, and technologies to enhance performance and expand application ranges. Advanced materials like ceramic composites and specialized alloys are extending the service life of globe valves in severe service applications. Smart valve technologies are also emerging, incorporating sensors and communication capabilities that enable predictive maintenance and remote monitoring.
Despite these innovations, the fundamental design principles that make globe valves effective for flow control remain unchanged. Their combination of precise control, reliable operation, and economic advantages ensures that globe valves will continue to be the most common choice for flow control applications across industries.
Globe valves have earned their position as the most common type of flow control valve through decades of proven performance across diverse applications. Their ability to provide precise throttling control, reliable shutoff, and long-term durability makes them the preferred choice for engineers and system designers worldwide. While other valve types may offer advantages in specific applications, the versatility and reliability of globe valves ensure their continued dominance in the flow control valve market.
Understanding the characteristics and capabilities of globe valves enables better system design decisions and more effective maintenance practices. As industrial processes become increasingly sophisticated and demanding, the proven performance of globe valves provides the foundation for reliable fluid control systems that support modern industrial operations.
