When you need to control fluid flow with surgical precision, a needle valve is your go-to solution. Unlike ball valves or gate valves designed for quick on-off operation, needle valves excel at fine-tuning flow rates in high-pressure systems. Their unique tapered stem design allows you to make microscopic adjustments to flow area, making them essential in instrumentation, chemical injection, and analytical equipment where exact flow control can make or break your process.
What Makes Needle Valve Flow Control Different
The key to understanding needle valve flow control lies in its geometry. A needle valve uses a long, tapered cone (the "needle") that moves axially into a matching seat. The taper angle is typically very small—between 1° and 5°—which means significant stem rotation produces only tiny changes in the annular flow area.
You can turn the handle multiple rotations to go from fully closed to fully open. Each small turn makes predictable, incremental changes to flow rate. This is fundamentally different from a quarter-turn ball valve, which provides almost no flow control precision.
The flow through any valve follows a modified orifice equation:
$$ Q = C_v \sqrt{\frac{\Delta P}{SG}} $$Where $Q$ is volumetric flow rate, $C_v$ is the flow coefficient, $\Delta P$ is pressure drop, and $SG$ is specific gravity. With a needle valve, you're mechanically adjusting that $C_v$ value with extreme resolution.
For a conical needle with taper angle $\theta$ and axial displacement $h$, the change in flow area follows:
$$ A_e = \pi D h \sin(\theta) $$With typical taper angles of 2° to 3°, the sine value is around 0.035 to 0.052, meaning even a full millimeter of stem travel produces only tiny area changes.

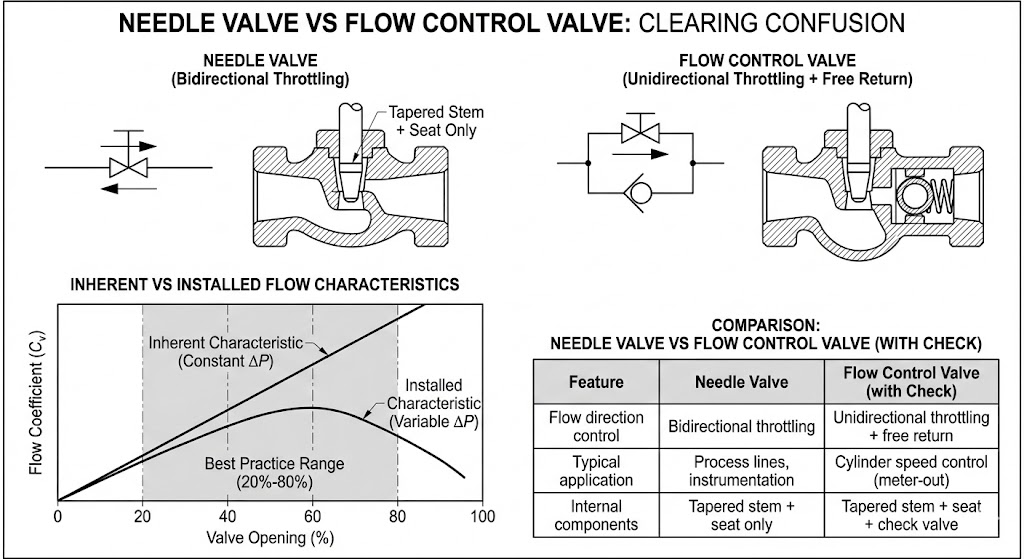

Needle Valve vs Flow Control Valve: Clearing Confusion
This is where many engineers get tripped up. In industrial catalogs, "needle valves" and "flow control valves" are often listed separately. The distinction matters in pneumatic and hydraulic circuits.
A standard needle valve provides bidirectional throttling. But what many suppliers call a "flow control valve" is actually a needle valve combined with a check valve in parallel. This creates unidirectional flow control—throttling in one direction while allowing free flow in reverse.
| Feature | Needle Valve | Flow Control Valve (with Check) |
|---|---|---|
| Flow direction control | Bidirectional throttling | Unidirectional throttling + free return |
| Typical application | Process lines, instrumentation | Cylinder speed control (meter-out) |
| Internal components | Tapered stem + seat only | Tapered stem + seat + check valve |
Inherent vs Installed Flow Characteristics
When manufacturers publish flow curves, they show the inherent characteristic—measured at constant pressure drop. However, your installed characteristic will differ. As you open the valve and flow increases, pipeline resistance increases, reducing the pressure drop available across the valve. This causes the flow curve to "droop," reducing control authority at large openings.
Best Practice: Keep your operating range between 20% and 80% of full stem travel to ensure you stay in the most linear, predictable portion of the curve.
Key Applications Requiring Precision Control
Instrument ProtectionInstalling a needle valve upstream of a pressure gauge creates a snubbing effect that filters out high-frequency pulsations, protecting delicate Bourdon tubes. In differential pressure manifolds, they allow for precise equalizing and venting.
Chemical Injection SystemsOil and gas production requires injecting inhibitors at rates as low as 0.5 ml/min against 10,000 psi. This demands valves with extremely small $C_v$ values (0.001 to 0.01) and specialized alloys like Monel 400 or Hastelloy C-276.
Hydraulic Speed ControlIn mobile hydraulics, needle valves control actuator speed. The meter-out configuration is preferred because it builds backpressure, preventing cylinder runaway under negative loads.
Material Selection for Needle Valve Flow Control
Material compatibility determines reliability. The wrong choice leads to corrosion, erosion, or catastrophic failure.
| Material | Max Pressure (psi) | Primary Applications | Limitations |
|---|---|---|---|
| 316 SS | 60,000 | General instrumentation | Limited chloride resistance |
| Brass | 3,000 | Air, water, inert gas | Dezincification, Ammonia SCC |
| Monel 400 | 20,000 | HF acid, sour gas | High cost |
| Hastelloy C-276 | 15,000 | Wet chlorine, mixed acids | Very high cost |
Failure Modes in Needle Valve Systems
Cavitation DamageIn liquid throttling, if pressure drops below vapor pressure, bubbles form and then implode violently. This creates micro-jets exceeding 100,000 psi, tearing metal from the seat and needle. The solution is anti-cavitation trim that stages the pressure drop.
Wire Drawing ErosionOperating at very small openings (<10%) concentrates flow into a high-velocity jet that cuts grooves into the seat. This "wire drawing" creates permanent leak paths. Correct sizing to 40-60% opening prevents this.
API 624 is the standard for low-emission valves, requiring methane leakage below 100 ppmv over 310 thermal cycles. Meeting this requires live-loaded packing systems, where Belleville springs maintain constant seal compression.
Proper Sizing and Installation
Never size valves by pipe diameter alone. Use the $C_v$ calculation method:
$$ C_v = Q \sqrt{\frac{SG}{\Delta P}} $$Select a valve where your calculated $C_v$ falls between 20% and 80% of the valve's maximum capacity.
Installation Best Practices- Flow Direction: Most are "flow-to-open." Installing backward increases torque and packing leakage risk.
- Filtration: Install upstream filters (40-mesh for air, ISO 4406 for hydraulic) to prevent particulate damage to the needle seat.
- Packing Adjustment: Only adjust gland nuts 1/8 to 1/4 turn at a time. Over-tightening freezes the stem.
The combination of precision mechanical design, proper material selection, and emerging sensor technology ensures needle valve flow control remains essential for demanding industrial applications. Understanding these principles lets you specify components that offer maximum reliability and performance.
