2 Way Hydraulic Flow Control Valve: A Complete Guide

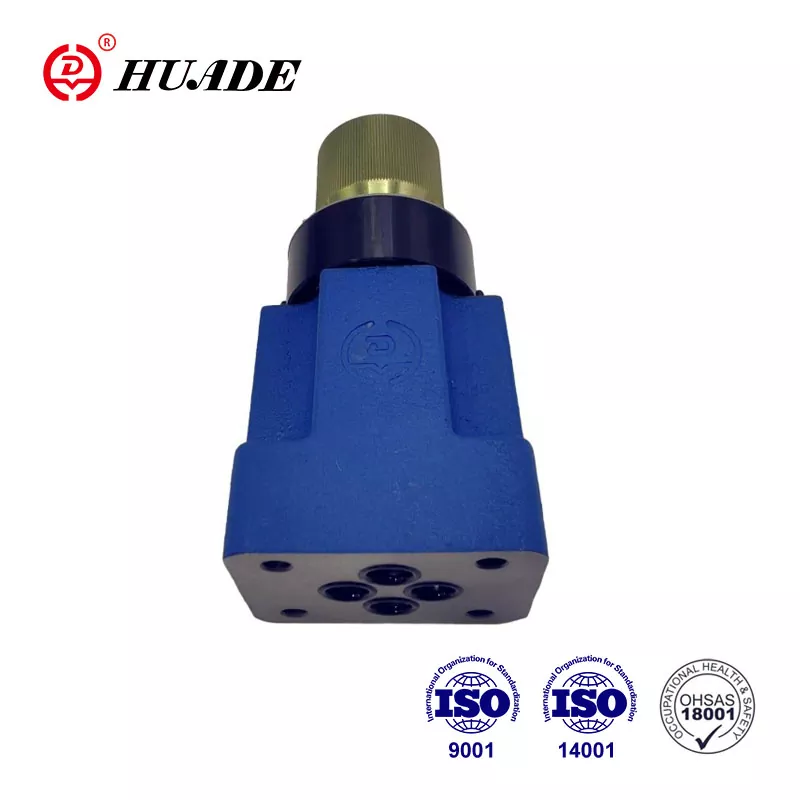

What is a 2 Way Hydraulic Flow Control Valve?

A 2 way hydraulic flow control valve is a crucial component in hydraulic systems that controls how fast fluid moves through a circuit. Think of it like a water faucet - you can turn it to control how much water flows out. In hydraulic systems, these valves control the speed of machines like excavators, injection molding machines, and factory equipment.

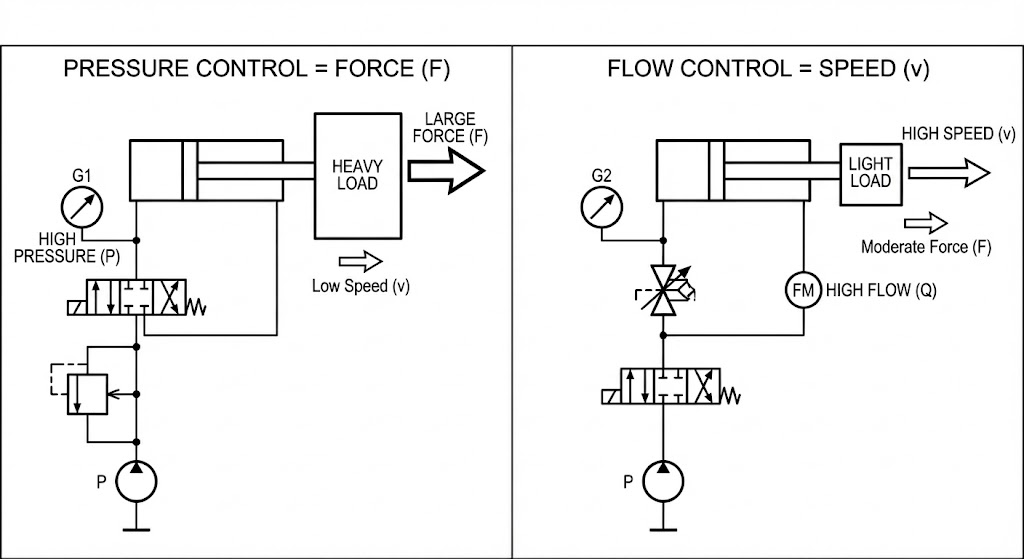

Why Flow Control Matters in Hydraulic Systems

In any hydraulic system, three things are essential:

Pressure - determines how much force or power you get
Direction - controls which way things move
Flow - controls how fast things move

The simple rule is: pressure controls force, flow controls speed. When you need to control how fast a hydraulic cylinder moves or how quickly a hydraulic motor spins, you need a flow control valve.

How Does a 2 Way Hydraulic Flow Control Valve Work?

Basic Parts of the Valve

Every 2 way hydraulic flow control valve has these main parts:

Valve Body - the outer shell that connects to your hydraulic lines
Throttle Opening - a small gap that fluid flows through
Control Element - moves to make the gap bigger or smaller
Adjustment Mechanism - lets you control the valve (manual knob or electric signal)
Spring - helps the valve return to its starting position

The Science Behind Flow Control

When hydraulic fluid flows through a small opening, it creates resistance. This hydraulic speed control principle is what makes these valves work. The basic formula is:

Flow = Opening Size × Square Root of Pressure Difference

This means:

Bigger opening = more flow = faster speed
Smaller opening = less flow = slower speed
Higher pressure = more flow (if opening stays the same)

For hydraulic cylinder valve applications, this relationship directly controls how fast the piston moves. In hydraulic motor control systems, it determines rotational speed.

What are the Types of 2 Way Hydraulic Flow Control Valves?

1. Simple Throttle Valves (Non-Compensated)

These are the most basic type. They work like a manual water faucet:

How they work: You manually adjust a knob to change the opening size Pros:

Simple design
Low cost
Easy to understand

Cons:

Flow changes when pressure changes
Not very accurate
Speed varies with load

Best for: Simple applications where exact speed isn't critical

2. Pressure Compensated Flow Control Valves

These are much smarter. They automatically adjust to keep flow constant even when pressure changes.

How they work: A special mechanism inside keeps the pressure difference across the throttle opening constant Pros:

Very accurate (within 3-5% error)
Flow stays the same regardless of load
Works well with changing conditions

Cons:

More complex
Higher cost
Needs clean oil

Best for: Precision machines, automated production lines

3. Pressure and Temperature Compensated Valves

These are the most advanced type. They adjust for both pressure AND temperature changes.

How they work: Special materials inside respond to temperature changes and automatically adjust the valve Pros:

Extremely accurate (within 2.5% error)
Works in wide temperature ranges
Best precision available

Cons:

Most expensive
Most complex
Requires expert installation

Best for: Aerospace, testing equipment, critical applications

Which Control Method Should You Choose for Your Hydraulic Flow Control Valve?

Manual Control

What it is: Hand wheels, knobs, or screws that you turn by hand When to use: Simple machines that don't need automatic control Examples: Basic shop equipment, manual presses

Electric Control

Solenoid Valves (On/Off)

Function: Simple on/off control like a light switch
Good for: Basic start/stop operations
Limitation: Can't provide smooth speed control

Proportional Valves

Function: Smooth control based on electric signals (0-10V or 4-20mA)
Response time: 50-80 Hz (fast enough for most applications)
Good for: Injection molding, general automation

Servo Valves

Function: Ultra-precise control with position feedback
Response time: 150-200 Hz (very fast)
Good for: Aerospace, high-precision manufacturing

Performance Comparison Table

Control Type	Accuracy	Speed	Cost	Best Use
Manual	Low	Slow	Low	Simple equipment
Solenoid	Low	Fast	Low	On/off control
Proportional	Medium-High	Medium	Medium	General automation
Servo	Very High	Very Fast	High	Precision applications

Installation and System Design

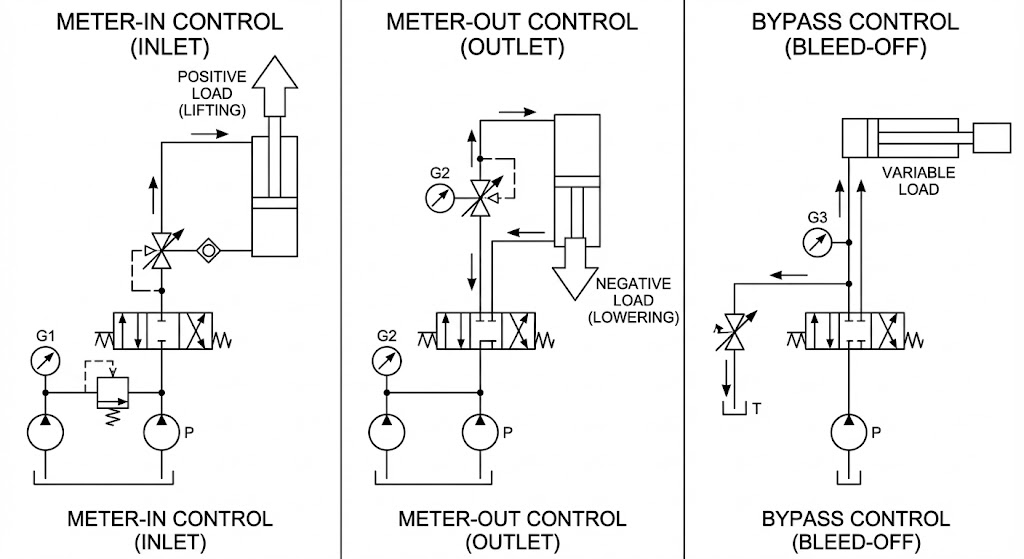

Where Should a 2 Way Flow Control Valve be Installed?

You can install flow control valves in three ways:

Inlet Control (Meter-In)

Controls oil going into the cylinder
Good for positive loads (like lifting)
Risk: Can cause cavitation if not designed properly

Outlet Control (Meter-Out)

Controls oil coming out of the cylinder
Good for negative loads (like lowering heavy objects)
Provides better control but higher pressure

Bypass Control

Sends extra oil back to tank
Less efficient but simpler
Good for applications needing variable speed

Design Tips for Best Performance

Size correctly: Choose valves that work at 20-80% of their maximum opening
Keep oil clean: Use proper filtration (ISO 4406 standard)
Consider temperature: Make sure valves work in your temperature range
Plan for maintenance: Leave space for valve adjustment and replacement

Real-World Applications

Manufacturing Equipment

Injection Molding Machines

Use proportional valves for precise speed control
Multiple speed stages for different parts of the cycle
Saves energy and improves product quality

Machine Tools

Fast approach, slow feed, quick return cycles
Cam-operated valves for automatic speed switching
Improves surface finish and tool life

Mobile Equipment

Excavators and Loaders

Flow sharing between multiple functions
Load-sensing systems for efficiency
Smooth operator control

Cranes and Lifting Equipment

Load-holding valves prevent uncontrolled lowering
Precise speed control for safety
Emergency lowering capability

Aerospace and Defense

Lightweight servo valves
High reliability in extreme conditions
Precise control for flight surfaces

Choosing the Right Valve: A Step-by-Step Guide

Step 1: Define Your Needs

What speeds do you need?
How accurate must the speed be?
Will the load change during operation?
Do you need automatic or manual control?

Step 2: Calculate Flow Requirements

Cylinder area × desired speed = required flow
Add 20% safety margin
Consider multiple cylinders operating together

Step 3: Check Pressure Requirements

System maximum pressure + safety factor
Consider pressure spikes during operation
Check valve pressure rating

Step 4: Select Control Type

Manual for simple, infrequent adjustments
Proportional for automated systems
Servo for high-precision applications

Step 5: Consider Environment

Temperature range
Fluid compatibility
Contamination levels
Space constraints

Top Manufacturers and Products

Leading Brands

Bosch Rexroth

2FRM and 2FRE series valves
Industry standard for precision
Excellent technical support

Parker Hannifin

Colorflow series with color-coded adjustment rings
Wide range of sizes and options
Good availability worldwide

HAWE Hydraulik

DSJ and SF series valves
Modular design for easy integration
High-pressure capabilities

Eaton

Cartridge valves (SiCV series)
Space-saving designs
Multifunctional capabilities

Danfoss

PVG proportional valve groups
Designed for mobile equipment
Customizable solutions

What to Look for When Buying

Technical specifications match your needs
Good technical documentation
Local service and support
Reasonable lead times
Competitive pricing
Proven reliability in your industry

Future Trends in Flow Control Technology

Smart Valves and IoT Integration

Modern valves are getting smarter with:

Built-in sensors for monitoring
Wireless communication capabilities
Predictive maintenance alerts
Remote adjustment and monitoring

Advanced Materials

New materials are making valves:

More resistant to wear
Better in extreme temperatures
Longer lasting
More efficient

Energy Efficiency Focus

New designs focus on:

Reducing energy waste
Better heat management
Improved efficiency ratings
Environmental compliance

Common Problems and Solutions

Problem: Speed Varies with Load

Solution: Upgrade to pressure compensated valve

Problem: Poor Response Time

Solution: Check for air in system, consider servo valve

Problem: Valve Hunting or Oscillation

Solution: Add damping, check system stiffness

Problem: Excessive Heat Generation

Solution: Check valve sizing, consider bypass control

Problem: Inconsistent Performance

Solution: Improve oil filtration, check for worn components

Maintenance and Troubleshooting

Regular Maintenance Tasks

Check oil cleanliness - Change filters regularly
Monitor operating temperature - Keep within manufacturer limits
Inspect for external leaks - Address immediately
Test response times - Compare to baseline measurements
Calibrate control signals - Ensure accuracy over time

Warning Signs to Watch For

Sluggish response
Inconsistent speeds
Unusual noises
External leakage
Excessive heat

Cost Considerations

Initial Costs

Simple throttle valves: $50-$200
Proportional valves: $300-$1,500
Servo valves: $1,000-$5,000+

Long-term Costs

Energy efficiency savings
Reduced maintenance
Improved product quality
Less downtime

ROI Factors

Production speed improvements
Quality consistency
Energy savings
Maintenance reduction

Conclusion

2 way hydraulic flow control valves are essential for controlling speed in hydraulic systems. The key is choosing the right type for your application:

Simple throttle valves for basic, low-cost applications
Pressure compensated valves for consistent performance
Servo valves for the highest precision needs

Remember that the valve is just one part of your hydraulic system. Success depends on proper system design, correct sizing, good maintenance, and choosing quality components from reputable manufacturers.

The Cost of Choosing Wrong: What Happens When You Get It Wrong

Selecting the wrong flow control valve can lead to serious problems and expensive consequences:

Performance Issues:

Inconsistent speeds - your machines won't work reliably
Poor quality products - inconsistent manufacturing processes
Safety risks - unpredictable machine behavior can cause accidents

Financial Impact:

Energy waste - poorly matched valves can increase power consumption by 15-30%
Premature equipment failure - wrong valve sizing causes excessive wear on pumps, cylinders, and motors
Production delays - unreliable hydraulic speed control leads to downtime and missed deadlines
Maintenance costs - incorrect valves require more frequent service and replacement

System-Wide Problems:

Heat buildup - inefficient valves generate excess heat, reducing oil life
Pump damage - wrong flow control can cause pump cavitation or overheating
Hydraulic cylinder valve mismatch - improper sizing damages seals and causes internal leakage

The bottom line: spending a little more on the right valve now saves thousands in repairs, energy costs, and lost production later.

Whether you're building a new machine or upgrading an existing one, understanding these fundamentals will help you make the right choice and get the best performance from your hydraulic system.

Additional Resources

For more detailed technical information, consult:

Manufacturer websites (Bosch Rexroth, Parker, HAWE)
ISO 1219 hydraulic symbols standard
Hydraulic engineering handbooks
Local hydraulic distributors for application support

This guide provides a foundation for understanding 2 way hydraulic flow control valves. For specific applications, always consult with hydraulic engineers and follow manufacturer recommendations.
