Can a Needle Valve Regulate Pressure?

When hydraulic technicians ask "can a needle valve regulate pressure," they're often facing a practical problem in their system design. The short answer is yes, a needle valve can create a pressure drop, but with critical limitations that every engineer must understand before specifying one for pressure control. The longer answer involves understanding what "regulation" actually means in fluid control engineering.

Understanding the Question: What Does "Regulate" Mean?

The confusion around whether a needle valve can regulate pressure stems from different interpretations of the word "regulate." In everyday language, if you turn a needle valve and see the downstream pressure gauge reading change, it feels like regulation. But in control systems engineering, true pressure regulation has a specific technical definition: the ability to maintain a constant outlet pressure despite changes in inlet pressure or downstream flow demand.

A needle valve creates pressure drop through mechanical restriction. When you adjust the tapered stem position, you're changing the flow area and therefore the flow coefficient (Cv value). This restriction converts static pressure into kinetic energy and eventually into heat through turbulent dissipation. The pressure drop across the valve follows the fundamental relationship where ΔP is proportional to the square of flow rate. This means the needle valve functions as a variable resistor in your fluid circuit, similar to a rheostat in an electrical system.

How Needle Valves Actually Work

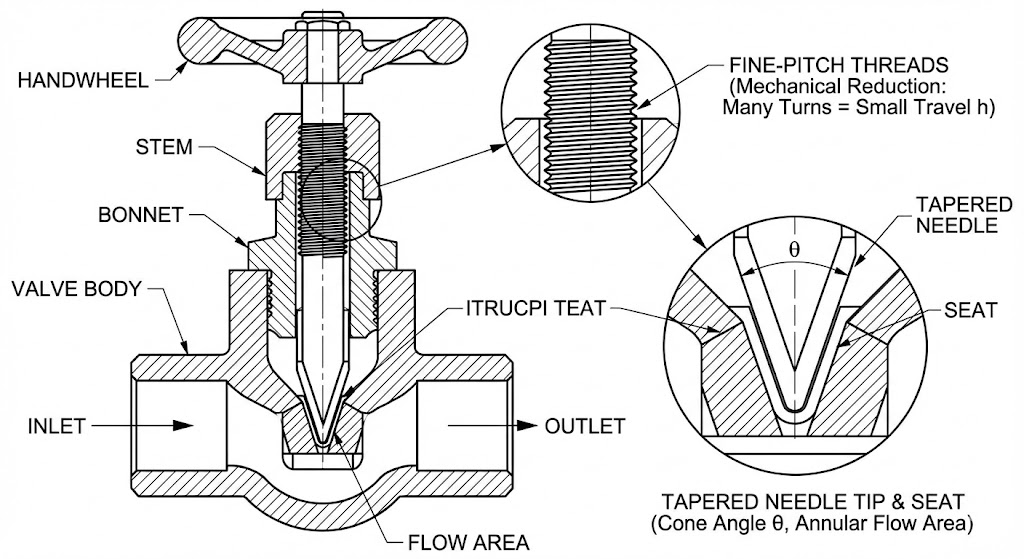

The precision of needle valve control comes from its mechanical geometry. Unlike ball valves that rotate a sphere to expose the flow path rapidly, needle valves use a threaded stem that drives a tapered plunger (the "needle") into or out of a matching seat. This creates an annular orifice whose flow area increases gradually with stem travel.

The relationship between stem position and flow area is not linear but highly controllable. For a needle with cone angle θ and seat diameter d, the flow area increases as the needle lifts distance h from the seat. Fine-pitch threads (40 threads per inch or finer) mean that multiple handle rotations produce only small vertical displacement of the needle tip. This mechanical reduction ratio is why needle valves excel at fine flow adjustment compared to other manual valve types.

Inside the valve body, fluid accelerates through the narrowest cross-section (the vena contracta) where velocity peaks and static pressure drops according to Bernoulli's principle. Some of this pressure recovers downstream as the flow path expands, but much of the kinetic energy converts to heat through turbulent mixing and friction. This irreversible energy loss manifests as the permanent pressure drop that engineers measure across the valve.

The tapered needle geometry matters significantly for control characteristics. A V-shaped stem provides relatively linear flow versus stem position, making pressure adjustment predictable and stable. In contrast, blunt or ball-tipped needles have quick-opening characteristics where small initial movement produces large flow changes. This makes them unsuitable for fine pressure control because tiny adjustments cause dramatic pressure swings.

The Critical Difference: Needle Valves vs. Pressure Regulators

The fundamental distinction between a needle valve and a pressure regulator lies in control theory. A needle valve operates as an open-loop system with no feedback mechanism. You set the stem position (the input), and the system produces an output pressure based on current flow conditions, but there's no sensor monitoring that output to make automatic corrections.

A pressure regulator implements closed-loop control through mechanical feedback. Inside the regulator body, a diaphragm or piston senses downstream pressure and compares it against spring force representing your setpoint. When downstream pressure drops below setpoint, the spring pushes the valve element open to increase flow. When pressure rises above setpoint, the process fluid pushes back against the spring to close the valve. This negative feedback loop continuously adjusts valve position to maintain constant outlet pressure regardless of disturbances.

This table reveals why needle valves cannot substitute for pressure regulators in critical applications. The lack of feedback means a needle valve has no mechanism to "fight back" against upstream pressure surges or compensate for downstream load changes. The valve simply maintains whatever flow restriction you manually set, and the resulting pressure becomes whatever the system physics dictates.

When Needle Valves Can Control Pressure (Effectively)

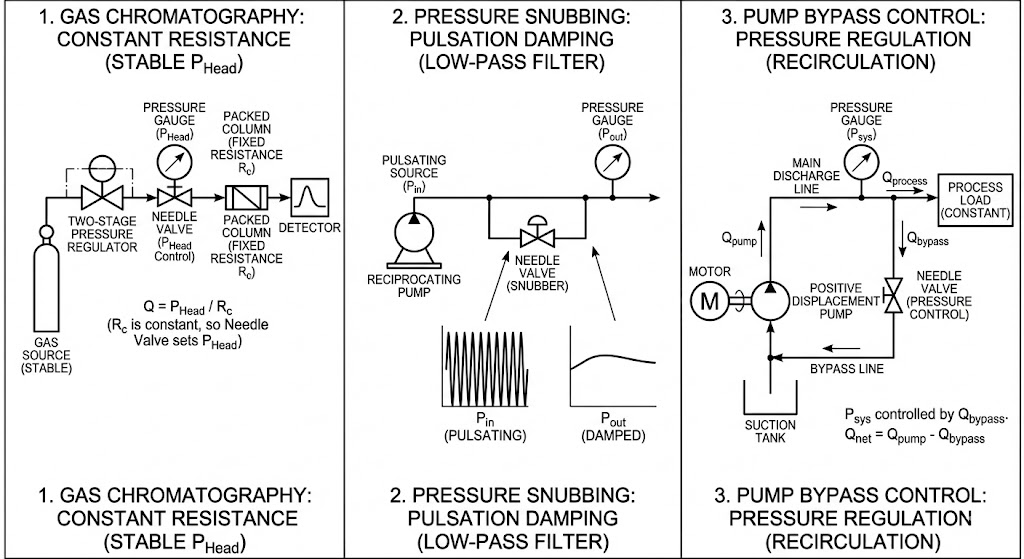

Despite their limitations, needle valves successfully control pressure in specific system architectures where their passive nature becomes an advantage. These applications share a common characteristic: either the flow is extremely constant, or the pressure variation is intentional and controlled by the operator.

In laboratory gas chromatography systems, carrier gas flows through a packed column with fixed flow resistance. When you adjust the needle valve upstream of the column, you're directly setting the column head pressure because the downstream restriction is constant. As long as the gas source remains stable (typically from a two-stage regulator on the cylinder), the needle valve provides precise and repeatable pressure control. The system effectively operates at a single, stable operating point on the pressure-flow curve.

Pressure snubbing represents another legitimate pressure control application. Reciprocating pumps produce high-frequency pressure pulsations that cause gauge needles to oscillate violently. Installing a needle valve before the pressure gauge creates a low-pass filter. By restricting flow to only the tiny volume needed for the Bourdon tube's deflection, the needle valve damps out rapid pressure spikes while allowing the average pressure to transmit slowly to the gauge. Operators can adjust the damping level on-site to balance response speed against reading stability.

For pump bypass control in constant-speed positive displacement systems, the needle valve plays a different role. Rather than throttling the main discharge line (which would overload the pump), engineers install a parallel bypass line with a needle valve returning flow from high-pressure discharge to low-pressure suction. Opening the bypass valve effectively reduces net flow to the process. In systems where load is relatively constant, this method allows fine-tuning of working pressure through controlled internal recirculation. The high resolution of needle valves makes micro-adjustments possible that would be impossible with coarser valve types.

The Dead-Head Risk: Why Needle Valves Fail as True Regulators

This failure mode is not a defect but fundamental physics. The needle valve has no mechanism to detect downstream pressure and close itself. It maintains whatever flow area you set regardless of consequences. In contrast, a pressure reducing regulator sensing 50 bar downstream would progressively close as pressure approaches setpoint, achieving lockup (complete closure) at the rated pressure even with zero flow. The regulator's integral feedback mechanism provides fail-safe protection.

The dead-head scenario becomes particularly dangerous in compressed gas systems. A technician might partially open a needle valve on a high-pressure nitrogen cylinder (2200 psig) to feed a reaction vessel designed for 150 psig. If the vessel's inlet valve closes for any reason while the needle valve remains open, the vessel faces immediate over-pressurization. Without a pressure relief device in the downstream system, catastrophic failure follows.

This is why industrial standards like ASME B31.3 and safety codes require proper pressure reducing regulators (not needle valves) for primary pressure reduction in systems where over-pressurization poses significant hazard. Needle valves may supplement regulators for fine adjustment but cannot replace them for safety-critical pressure control.

Proper Applications for Needle Valves in Pressure Control

When system architecture accounts for needle valve limitations, these devices become valuable precision tools. The key is structuring the system so that flow remains relatively constant or manually adjusting the valve is acceptable and safe.

Controlled venting and bleed-down operations represent ideal needle valve applications. When depressurizing a high-pressure system before maintenance, opening a ball valve creates dangerous high-velocity discharge with potential for noise, erosion, and whipping hoses. A needle valve allows controlled pressure release at safe rates. Operators gradually open the valve, monitoring pressure gauges to prevent thermal shock from rapid gas expansion (Joule-Thomson cooling). This application accepts manual control because the process is temporary and operator-supervised.

In block-and-bleed manifolds for pressure instruments, the bleed valve (typically a needle valve) provides controlled pressure equalization and venting. Before removing a pressure transmitter, technicians close the block valves isolating it from the process, then slowly open the needle valve to safely bleed trapped pressure to atmosphere or a containment system. The needle valve's fine control prevents sudden pressure surges that could damage delicate instruments.

Pressure dampers benefit from needle valve adjustability. While fixed-orifice snubbers work adequately in many applications, needle valves let operators tune damping for specific fluid viscosities and pulsation frequencies. Hydraulic systems using variable-viscosity fluids (where temperature changes are significant) particularly benefit because operators can re-optimize damping as operating conditions change throughout the day.

Some flow control applications indirectly achieve pressure control through needle valves. In lubrication systems where each bearing requires specific oil flow at a common supply pressure, individual needle valves at each bearing feed point meter the flow precisely. Because the bearing restrictors are relatively constant, setting flow effectively sets the upstream pressure in each feed line. This distributed metering approach provides flexibility that would be expensive to achieve with individual pressure regulators at each point.

Sizing and Selection Considerations

Proper needle valve selection requires calculating the required Cv value rather than simply matching pipe size. The Cv coefficient represents flow capacity: one Cv passes one gallon per minute of 60°F water with one psi pressure drop. For liquid service, the relationship is Q = Cv √(ΔP/SG), where Q is flow in GPM, ΔP is pressure drop in psi, and SG is specific gravity.

Rearranging for the critical design case: Cv = Q / √(ΔP/SG). Calculate Cv at your normal operating flow and desired pressure drop, then select a valve where this calculated Cv corresponds to 20-80% of the valve's fully-open Cv. Operating below 20% opening risks wire drawing erosion from high-velocity jetting. Operating above 80% opening loses control resolution because the needle is nearly withdrawn from the seat.

Material selection impacts pressure control performance and longevity. For high-pressure drops in liquid service, cavitation becomes a concern when pressure at the vena contracta drops below vapor pressure. Bubbles form and then violently collapse downstream, eroding the precision needle and seat surfaces. Hard materials like Stellite (cobalt-chromium alloy) overlay on seating surfaces resist cavitation damage far better than stainless steel alone.

In gas service with large pressure drops, the Joule-Thomson effect causes temperature drops that can freeze moisture or make elastomer seals brittle. PEEK or PCTFE soft seats offer better low-temperature performance than PTFE while maintaining higher pressure ratings than standard elastomers. For extreme conditions, all-metal construction with hard-faced seats becomes necessary despite reduced sealing performance at low pressures.

Thread selection matters for control stability. Fine threads (32 threads per inch or finer) provide superior resolution for pressure adjustment but require more handle rotations to make significant changes. Coarse threads allow faster adjustment but sacrifice fine control. For pressure control applications requiring stable setpoints, fine threads with locking handles or calibrated indicators help operators return to precise positions repeatedly.

Understanding the Physics: Why Flow and Pressure Are Coupled

The reason needle valves cannot truly regulate pressure independent of flow comes from fundamental fluid mechanics. The pressure drop across any restriction follows from energy conservation. When fluid accelerates through the narrow needle valve orifice, static pressure energy converts to kinetic energy (velocity). In ideal frictionless flow, this pressure would recover downstream as velocity decreases. However, real fluids experience turbulent mixing and viscous friction that irreversibly convert kinetic energy to heat.

The magnitude of this energy loss depends on flow velocity squared, which is why the pressure drop equation contains Q². Double the flow rate, and pressure drop increases four times. This quadratic relationship makes needle valve pressure drop extremely sensitive to flow changes. Even small variations in downstream consumption or upstream supply pressure that change flow rate cause significant pressure variations.

Viscosity effects add another complication. Hydraulic oil viscosity drops dramatically as temperature rises during operation. Cold startup conditions might establish a 50 bar pressure drop through the needle valve, but after an hour of running, the heated oil flows more easily through the same restriction, reducing pressure drop to 35 bar. Maintaining constant pressure would require continuous manual adjustment as the operator monitors both pressure and temperature.

Compressible flow (gas service) introduces additional complexity. When pressure drop exceeds roughly 50% of absolute inlet pressure, flow becomes choked at the vena contracta. Further reducing downstream pressure no longer increases flow because the restriction already reaches sonic velocity. This critical flow condition means the pressure-flow relationship changes character depending on pressure ratio, making needle valve behavior even less predictable across varying conditions.

Making the Right Choice: Decision Framework

For engineers facing the question "can a needle valve regulate pressure" in their specific application, the answer depends on carefully analyzing system requirements against needle valve characteristics. Start by defining what pressure control really means for your application.

If you need to maintain downstream pressure within ±2% despite varying upstream supply pressure or changing downstream consumption, you need a pressure regulator with closed-loop control. The additional cost of a diaphragm or piston-sensed regulator provides essential automatic compensation that no manual device can match. Safety-critical applications where over-pressure could damage equipment or endanger personnel absolutely require true pressure regulation with dead-head lockup capability.

If your application involves steady-state conditions where flow remains essentially constant and you can accept manual adjustment when conditions change, a needle valve may be entirely adequate and more economical. Laboratory test stands, pilot plants, and supervised processes often fit this category. The needle valve's mechanical simplicity means fewer failure modes and easier maintenance than spring-loaded regulators.

For applications requiring both pressure regulation and flow metering, combining a pressure regulator upstream of a needle valve provides optimal control. The regulator maintains stable inlet pressure to the needle valve regardless of supply variations, while the needle valve provides precise flow adjustment. This series arrangement gives you independent control of pressure and flow, which is valuable in applications like gas mixing or chromatography.
