In the world of fluid control systems, valves play a crucial role in managing the flow of liquids and gases through pipelines and equipment. Among the various types of valves available, 2-way and 3-way valves are fundamental components that serve different purposes in industrial applications, HVAC systems, and process control. Understanding the differences between these two valve types is essential for engineers, technicians, and anyone involved in system design or maintenance.

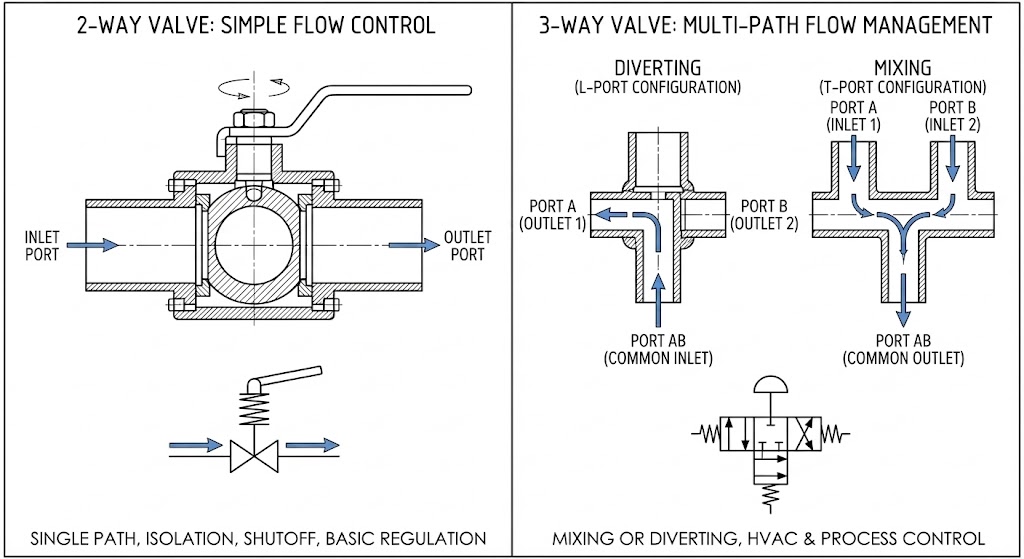

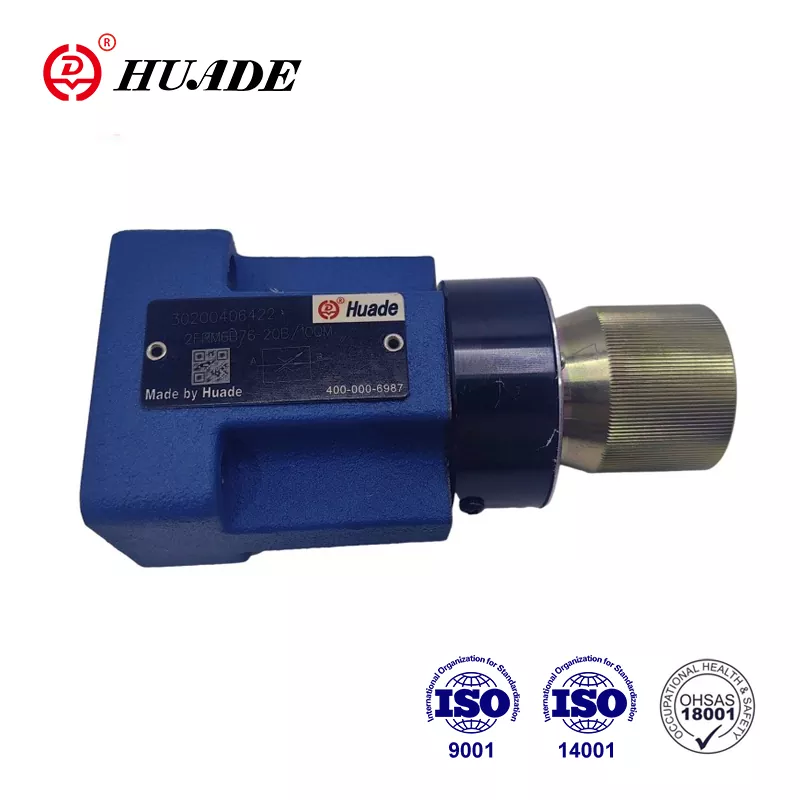

A 2-way valve, as the name suggests, has two ports: an inlet and an outlet. This valve operates on a simple principle of either allowing or preventing flow through a single flow path. When the valve is open, fluid can flow from the inlet to the outlet, and when closed, the flow is completely stopped.
The primary function of a 2-way valve is flow control along a single pathway. These valves are designed to either permit or block the passage of fluid, making them ideal for on/off applications. The internal mechanism typically consists of a movable element such as a ball, gate, globe, or butterfly disc that either obstructs or clears the flow path.
2-way valves are commonly found in applications where simple flow control is required. They excel in situations where you need to start or stop the flow of a medium without redirecting it to alternative pathways. The simplicity of their design makes them cost-effective and reliable for basic control functions.
In HVAC systems, 2-way valves are frequently used to control the flow of chilled water or hot water to heating and cooling coils. They help maintain temperature control by regulating the amount of conditioned water flowing through the system. In industrial processes, these valves serve as isolation valves, allowing maintenance personnel to shut off flow to specific equipment or sections of a pipeline for servicing.
Water treatment facilities utilize 2-way valves for controlling the flow of chemicals and treated water through various stages of the purification process. Similarly, in fire protection systems, these valves act as control points for sprinkler systems and emergency water supplies.
A 3-way valve features three ports and offers more complex flow control capabilities than its 2-way counterpart. These valves can perform two primary functions: mixing flows from two different sources into one output, or diverting a single input flow into two separate output paths.
The versatility of 3-way valves lies in their ability to handle multiple flow paths simultaneously. Depending on the valve's position, it can either combine two incoming flows into one outgoing stream or split one incoming flow into two separate directions. This functionality makes them invaluable in applications requiring flow distribution or mixing.
The internal mechanism of a 3-way valve typically involves a rotating element or a movable plug that can create different flow paths between the three ports. The valve's position determines which ports are connected and which are isolated, allowing for precise control over flow direction and distribution.
In HVAC systems, 3-way valves are essential for temperature control in heating and cooling applications. They can mix hot and cold water to achieve the desired temperature for climate control systems. For instance, in a heating system, a 3-way valve might mix hot water from a boiler with cooler return water to maintain optimal temperature levels.
Industrial processes benefit from 3-way valves in applications requiring flow diversion or mixing. In chemical processing, these valves can redirect process streams to different treatment stages or blend different chemicals in precise proportions. They're also common in hydraulic systems where flow needs to be directed to different actuators or components.

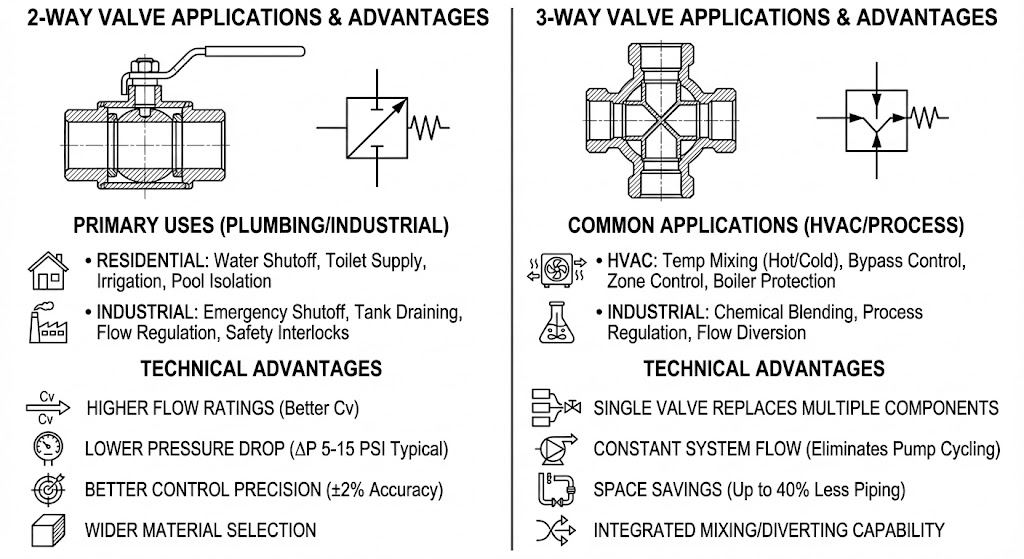

The fundamental operational difference between 2-way and 3-way valves lies in their flow control capabilities. A 2-way valve operates in a binary fashion – it's either open or closed, allowing or preventing flow through a single path. This makes them suitable for simple on/off control applications.
In contrast, 3-way valves offer proportional control capabilities. They can gradually adjust the flow distribution between different paths, making them ideal for applications requiring precise flow mixing or diverting. The ability to maintain constant total flow while varying the distribution between outlets is a key advantage of 3-way valves.
From a construction standpoint, 2-way valves are generally simpler and more compact than 3-way valves. The additional port and more complex internal mechanisms required for 3-way valves result in larger, more intricate designs. This complexity often translates to higher manufacturing costs and potentially more maintenance requirements.
The actuator requirements also differ between the two valve types. While 2-way valves typically require simple linear or rotary motion for operation, 3-way valves may need more sophisticated actuation systems to achieve precise positioning for flow control.

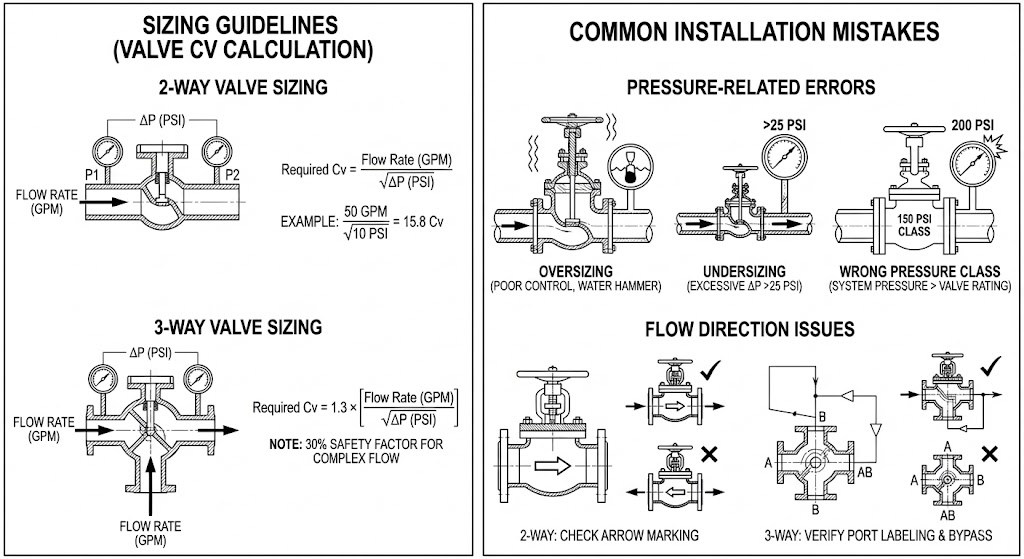

When selecting between 2-way and 3-way valves, several performance factors must be considered. Flow characteristics, pressure drop, and response time all play important roles in system performance.
2-way valves generally offer better flow characteristics with lower pressure drops when fully open, as the flow path is typically more direct. However, they may cause flow instability in systems where sudden flow interruption is problematic.
3-way valves, while potentially introducing higher pressure drops due to their more complex internal geometry, offer superior system stability by maintaining continuous flow even when redirecting or mixing streams.
Economic and Maintenance Considerations
The initial cost difference between 2-way and 3-way valves can be significant, with 3-way valves typically commanding higher prices due to their increased complexity. However, the total cost of ownership should consider factors beyond initial purchase price.
In some applications, a single 3-way valve can replace multiple 2-way valves, potentially reducing overall system costs, installation complexity, and maintenance requirements. The ability to perform mixing or diverting functions with one valve instead of multiple components can justify the higher initial investment.
-
