The throttle valve sits at the heart of your engine's air intake system. Think of it as a gatekeeper that controls how much air flows into the engine. When you press the accelerator pedal, the throttle valve opens wider to let in more air. This increase in airflow allows the engine to burn more fuel and produce more power.
Modern vehicles use two main types of throttle systems. Older cars relied on a mechanical cable that physically connected the gas pedal to the throttle valve. Today, most vehicles use an Electronic Throttle Control (ETC) system, sometimes called "drive-by-wire." Instead of a cable, sensors read your pedal position and send electronic signals to a small motor that opens and closes the throttle valve. This electronic system offers better fuel economy and integrates with safety features like traction control, but it also introduces new ways things can go wrong.
When a throttle valve starts failing, your engine cannot properly regulate the air-fuel mixture. The symptoms that follow can range from minor annoyances to serious drivability problems. Understanding these symptoms helps you identify issues early, before they cause expensive damage to other engine components like the catalytic converter or transmission.

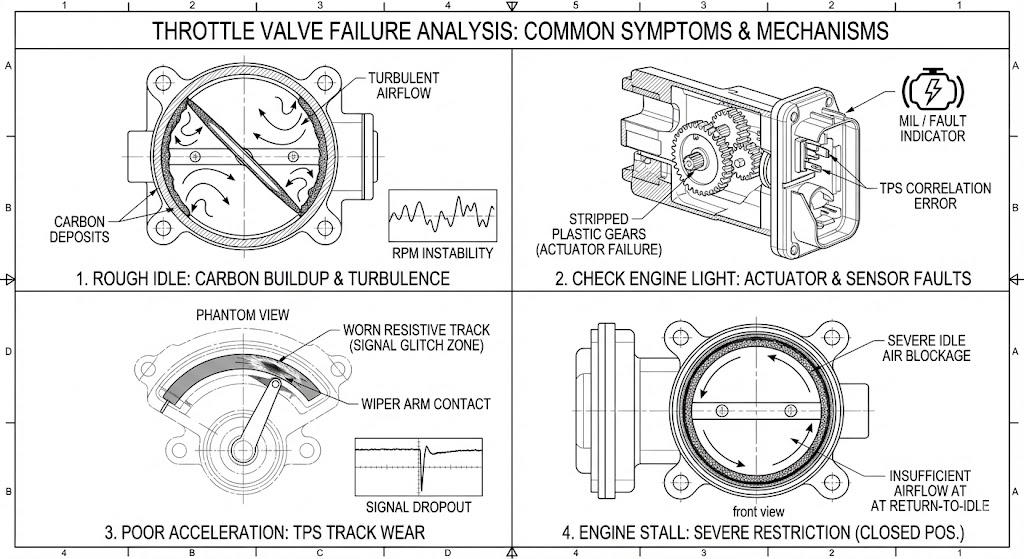

Primary Symptoms of Throttle Valve Failure
Rough or Unstable Idle Speed
One of the earliest and most common symptoms is an inconsistent idle. You might notice the engine RPM fluctuating between 600 and 900 RPM while sitting at a stoplight. The tachometer needle bounces up and down rhythmically, and you can feel vibrations through the steering wheel and floor.
This happens because carbon deposits build up around the throttle valve edges over time. These deposits come from oil vapor in the crankcase ventilation system and soot from the exhaust gas recirculation (EGR) system. When the throttle valve is barely open at idle, even a small amount of buildup blocks a significant portion of the airflow passage. The engine control unit (ECU) tries to compensate by adjusting the valve position, but the rough surface creates turbulent airflow. This causes the ECU's corrections to overshoot, creating an unstable feedback loop.
In electronic throttle systems, the motor constantly struggles to maintain the correct position against these flow disruptions. The result is a hunting behavior where the engine speed cycles up and down as the system overcorrects in both directions.
Check Engine Light Illumination
When throttle valve problems reach a certain severity, the ECU detects the malfunction and stores a diagnostic trouble code (DTC). This triggers the check engine light on your dashboard. Some manufacturers use additional warning lights. Ford vehicles often display a wrench symbol, while Chrysler, Jeep, and Dodge models show a lightning bolt inside parentheses.
The illuminated warning light indicates that the ECU has detected sensor voltage discrepancies, throttle position correlation errors, or actuator control problems. In vehicles with Electronic Throttle Control, two independent position sensors monitor the throttle valve angle. These sensors typically produce opposite voltage signals for safety redundancy. When their readings diverge beyond acceptable limits, the system cannot trust either sensor and activates the warning light.
| DTC Code | Description | Primary Cause | Severity Level |
|---|---|---|---|
| P0121 | Throttle Position Sensor A Circuit Range/Performance | Worn potentiometer track, signal noise | Medium |
| P0122 | Throttle Position Sensor A Circuit Low Input | Broken wire, connector corrosion, short to ground | High |
| P0123 | Throttle Position Sensor A Circuit High Input | Short to power supply, internal sensor failure | High |
| P2135 | Throttle Position Sensor A/B Voltage Correlation | Uneven sensor wear, calibration drift | Critical - Triggers Limp Mode |
| P2101 | Throttle Actuator Control Motor Circuit Range/Performance | Carbon buildup, stripped plastic gears, frozen valve | Critical |
| P0507 | Idle Control System RPM Higher Than Expected | Vacuum leak, incorrect relearn after cleaning | Low |
Poor Acceleration Response and Hesitation
A failing throttle valve creates noticeable delays when you try to accelerate. You press the gas pedal, but instead of immediate response, the engine seems to think about it for a moment. Some drivers describe this as a "dead spot" or "flat spot" in the pedal travel. The engine might even briefly drop in RPM before finally responding to your input.
This hesitation occurs when the Throttle Position Sensor (TPS) has worn spots on its resistive track. These sensors use a contact wiper that slides across a carbon film. After millions of movements, the track develops physical wear at commonly used positions, especially around the closed throttle position and typical cruising angles. When the wiper crosses these worn areas, it creates momentary signal dropouts or voltage spikes.
The ECU interprets these signal glitches as conflicting data. For safety reasons, it may briefly reduce engine power or delay throttle opening until it can verify the sensor reading. In severe cases with correlation faults between sensor A and sensor B, the ECU stops responding to pedal inputs entirely, creating what drivers call a "dead pedal" condition.
Engine Stalling During Deceleration
Unexpected stalling represents a more serious symptom. This typically happens when you take your foot off the accelerator, such as when approaching a red light or coming to a stop. The engine dies without warning, often requiring you to shift to neutral and restart while rolling.
The root cause involves insufficient airflow at idle. When carbon deposits severely restrict the throttle valve opening, or when the idle air control mechanism fails, the engine cannot maintain the minimum RPM needed to keep running. During deceleration, the throttle valve snaps closed quickly. If the motor response is sluggish or the bypass air passage is blocked, the engine immediately starves for oxygen and stalls.
Safety Warning
This condition creates safety hazards. Modern power steering and brake systems use engine vacuum or electrically driven pumps that depend on the engine running. When the engine stalls unexpectedly in traffic, steering becomes heavy and brake pedal effort increases dramatically.
Secondary Symptoms and Related Issues
Increased Fuel Consumption
A malfunctioning throttle valve forces the engine to work harder to achieve normal performance. The ECU attempts to compensate for rough idle and poor throttle response by enriching the fuel mixture and adjusting ignition timing. These adaptations sacrifice fuel efficiency to maintain drivability.
Additionally, carbon buildup creates turbulent airflow through the throttle body. This turbulence disrupts the Mass Air Flow (MAF) sensor readings downstream, causing the ECU to miscalculate the actual air entering the engine. The result is an incorrect air-fuel ratio that wastes fuel. Drivers typically notice a 10-15% decrease in miles per gallon before other symptoms become obvious.
Surging or Hunting During Steady Throttle
While cruising at constant speed on the highway, you might feel the car surge forward and back rhythmically. The engine RPM rises and falls by a few hundred RPM without any change in pedal position. This hunting behavior indicates that the throttle control system cannot maintain a stable position.
In Electronic Throttle Control systems, this symptom often points to a vacuum leak around the throttle valve shaft. The shaft rotates on bushings, and over time these bushings wear down. This wear creates a gap that allows unmeasured air to bypass the throttle plate. The ECU detects this extra air through the oxygen sensors and tries to close the throttle further, but the leak persists. The resulting overcorrection causes the surging sensation.
Limp Mode Activation and Severe Power Limitation
When the ECU detects critical throttle system faults, it activates a protective measure called "limp mode" or "limp home mode." This is the most dramatic symptom of throttle valve failure. The vehicle becomes extremely limited in performance, typically restricting engine speed to 2,000-3,000 RPM maximum and vehicle speed to 30-50 km/h.
The ECU takes this action when it cannot trust the throttle position data due to sensor correlation faults (P2135). Rather than risk an unintended acceleration scenario, the system ignores the accelerator pedal input and locks the throttle at a fixed, safe position. The automatic transmission may also lock into second or third gear to prevent excessive speed.
Limp mode often disables comfort features like air conditioning to reduce engine load. The traction control and electronic stability control systems also shut down because they rely on precise throttle control to manage wheel slip. This explains why the TCS or ESP warning lights often illuminate alongside throttle system faults.
High Idle Speed After Cleaning or Replacement
An unusually high idle speed often appears after throttle valve cleaning or replacement. The engine might idle at 1,500-2,000 RPM instead of the normal 600-800 RPM. This happens because the ECU has learned to compensate for years of carbon buildup by opening the throttle valve wider at idle.
When you suddenly remove all that carbon or install a new throttle body, the ECU still commands the larger opening it had adapted to. Since there is no longer any restriction, excessive air enters the engine, raising the idle speed. This condition requires a relearn procedure to reset the ECU's adaptive values. Different manufacturers use different relearn methods, ranging from simple battery disconnection to complex pedal dance sequences.

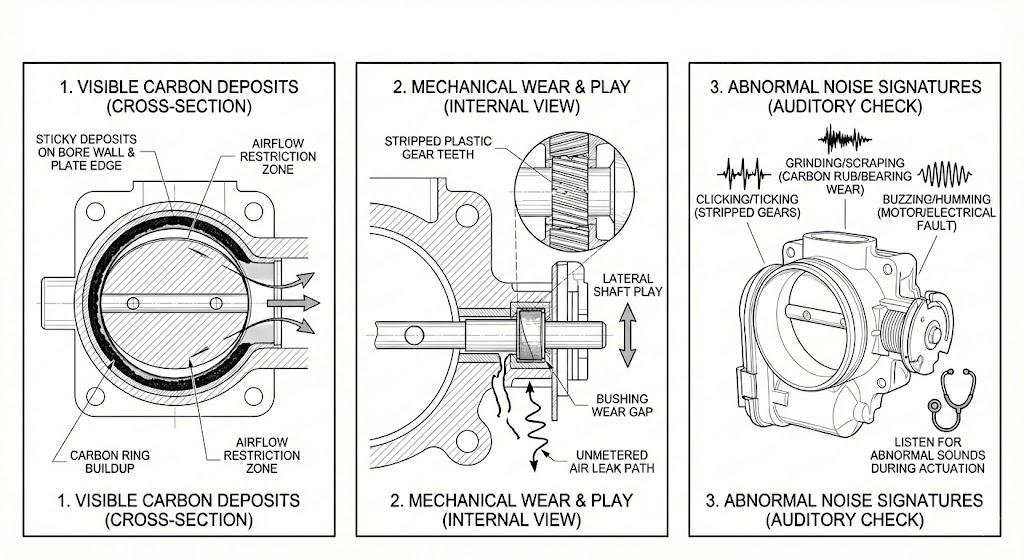

Mechanical Symptoms and Physical Inspection Signs
Visible Carbon Deposits on the Throttle Plate
When you remove the intake air duct and look into the throttle body, you can directly see carbon accumulation. Healthy throttle valves have clean, metallic surfaces. Failed units show a thick ring of black, tar-like deposits around the throttle plate edge and on the bore walls. This "carbon ring" sits exactly where the plate seals against the housing at idle.
The deposits feel rough and sticky to the touch. In severe cases, the buildup becomes so thick that it physically prevents the plate from fully closing. You might also notice oil film or wet sludge if the positive crankcase ventilation (PCV) system allows excessive oil vapor to enter the intake.
Unusual Noises from the Throttle Body
Electronic throttle systems make subtle sounds during normal operation. You might hear a quiet whirring when you turn the key to the "on" position as the actuator motor performs a self-test. However, failing throttle bodies produce abnormal noises that indicate mechanical problems.
A clicking or ticking sound when the throttle opens or closes suggests stripped teeth on the internal plastic reduction gears. The motor spins but cannot smoothly transmit torque to the throttle plate. A grinding or scraping noise indicates that the throttle plate edges are rubbing against carbon deposits or that the shaft bushings have worn excessively.
Some drivers report a loud buzzing or humming that seems to come from the throttle body area. This often points to a failing DC motor or corroded electrical connections in the H-bridge driver circuit.
Throttle Plate Shaft Play and Vacuum Leaks
Physical wear in the throttle shaft bearings creates lateral movement or "play" in the throttle plate. To check this, remove the intake duct and try to wiggle the throttle plate perpendicular to its axis of rotation. Any noticeable movement indicates bushing wear.
This wear creates a gap between the shaft and housing that allows unmetered air to leak into the intake manifold. Unlike other vacuum leaks that you can hear as hissing sounds, throttle shaft leaks are silent because the gap is very small. However, their effect on air-fuel mixture is significant, causing lean fuel trim codes (P0171/P0174) and rough idle.
| Symptom Category | Carbon Buildup (Mechanical) | TPS Sensor Failure (Electronic) |
|---|---|---|
| Primary Symptom | Rough idle, gradually worsening over months | Sudden limp mode activation, check engine light |
| Acceleration Response | Sluggish throughout RPM range | Dead spots at specific pedal positions |
| Fuel Trim Values | Normal or slightly negative | May show erratic swings |
| Cleaning Effect | Symptoms improve after cleaning | Cleaning has no effect on electronic faults |
| Diagnostic Codes | Often no codes, or P0507 (high idle) | P2135, P0121, P0122, P0123 |
| Visual Inspection | Black carbon ring visible on throttle plate | Throttle body looks physically clean |
Diagnostic Techniques to Confirm Throttle Valve Problems
Fuel Trim Analysis for Distinguishing Root Causes
Professional diagnostics use fuel trim data to separate throttle valve issues from other intake system problems. The ECU constantly monitors oxygen sensor feedback and adjusts fuel delivery accordingly. These adjustments appear as Short Term Fuel Trim (STFT) and Long Term Fuel Trim (LTFT) values that you can read with a scan tool.
Vacuum leaks, including those from worn throttle shaft bushings, pull unmeasured air into the engine. The ECU must add more fuel to compensate, creating positive fuel trim values (for example, STFT +15% or higher at idle). The key diagnostic test involves raising engine speed to 2,500 RPM and holding it steady. Vacuum leak fuel trims decrease significantly at higher RPM because the leak represents a smaller percentage of total airflow. If your fuel trims drop from +15% at idle to near 0% at 2,500 RPM, you likely have a vacuum leak rather than pure carbon buildup.
Carbon deposits that restrict airflow do not usually cause high positive fuel trims because the MAF sensor still measures the reduced airflow correctly. Instead, you will see unusually high calculated engine load values at idle because the ECU must open the throttle wider to achieve target RPM.
Mass Air Flow Sensor Elimination Test
Throttle valve symptoms often overlap with MAF sensor failures. Both can cause rough idle, hesitation, and poor fuel economy. A simple diagnostic test helps separate these issues.
Disconnect the MAF sensor electrical connector while the engine idles. This forces the ECU into a backup operating mode called "speed-density" where it ignores actual airflow measurements and estimates fuel needs based only on throttle position and engine speed. If the engine runs smoother with the MAF disconnected, the MAF sensor itself is likely faulty. If symptoms persist or worsen with the MAF disconnected, the problem likely lies in the throttle body mechanical condition or vacuum leaks.
Throttle Position Sensor Voltage Sweep Test
For P0121 (range/performance) codes and intermittent hesitation issues, monitoring TPS voltage during slow throttle movement reveals sensor track wear. Using an advanced scan tool or oscilloscope, watch the TPS voltage while slowly opening the throttle from fully closed to fully open.
A healthy potentiometer produces a smooth, linear voltage increase with no interruptions. Worn sensors show sudden voltage drops or spikes at specific angles where the wiper crosses damaged areas of the resistive track. These glitches might last only milliseconds, but they are enough to trigger correlation faults in dual-sensor ETC systems.
When Professional Diagnosis Becomes Necessary
Symptoms That Require Immediate Attention
Some throttle valve symptoms indicate urgent problems that should not be driven on. Limp mode activation represents the highest priority because it indicates the ECU has detected faults severe enough to limit vehicle performance for safety reasons. Continuing to drive in limp mode risks overheating the transmission due to locked gears and high engine load.
Repeated stalling in traffic creates dangerous situations where you lose power steering and brake assist at critical moments. If your vehicle stalls more than once during normal driving, stop using it until a professional can diagnose the cause.
Complete loss of throttle response ("dead pedal") where the engine will not rev above idle regardless of accelerator input indicates either critical sensor correlation faults or severe mechanical restriction. This condition makes the vehicle unable to maintain highway speeds or climb grades.
The Limitations of DIY Cleaning
While carbon buildup causes many throttle valve symptoms, attempting to clean electronic throttle bodies carries significant risks without proper knowledge. The throttle plate in ETC systems should never be forced open by hand while the system is powered. The servo motor generates high torque, and unexpected plate movement can cause serious finger injuries when the motor fights back.
Forcing the plate also back-drives the motor, turning it into a generator that produces reverse voltage. This voltage spike can damage the motor driver circuits in the ECU. Additionally, many modern throttle bodies use special coatings on the bore and plate edges. Aggressive chemical cleaners and hard brushes remove these coatings, causing problems worse than the original carbon buildup.
Professional shops have the knowledge to safely clean throttle bodies without damaging electronic components and can perform the necessary relearn procedures afterward.
Understanding Relearn Requirements
After cleaning or replacing a throttle valve, the ECU requires a relearn procedure to reset its adaptive values. Without this step, the engine will idle excessively high because the ECU still commands the large throttle opening it had learned to use with carbon buildup present.
Relearn procedures vary dramatically by manufacturer. Some vehicles simply need the battery disconnected for a few minutes. Others require complex sequences of key cycles and accelerator pedal movements with precise timing. Nissan vehicles are notorious for requiring a multi-step "pedal dance" that must be executed exactly or the system will not relearn properly.
Professional scan tools can often force the relearn electronically, saving time and ensuring the procedure completes successfully. Incorrect or incomplete relearn procedures leave you with persistent high idle or rough running despite having a clean or new throttle body.
Prevention and Long-Term Maintenance
Regular maintenance can prevent most carbon-related throttle valve problems. The quality of engine oil affects how much vapor enters the intake through the PCV system. Using high-quality synthetic oil reduces oil consumption and vapor production. Replacing the PCV valve according to the maintenance schedule prevents it from sticking and allowing excessive crankcase pressure into the intake.
Fuel system cleaners that contain polyether amine (PEA) detergents help prevent carbon accumulation throughout the intake tract. Adding these cleaners every 5,000-10,000 miles can extend the time between needed throttle body cleanings.
For vehicles experiencing early carbon buildup, consider having the throttle body professionally cleaned every 30,000-50,000 miles as preventive maintenance. This service typically costs $90-$225, which is far less than the expense of replacing damaged catalytic converters or repairing transmission problems caused by long-term drivability issues.
Understanding these symptoms helps you identify throttle valve problems before they cascade into more expensive repairs. Early diagnosis and proper maintenance keep your vehicle running smoothly and prevent the frustration of unexpected breakdowns.
