A Complete Analysis of the Operating Status of the Pressure Relief Valve

Pressure Relief Valve Guide

Pressure relief valves (PRVs) are essential safety devices in industrial systems. They automatically release excess pressure to prevent equipment damage, system failure, or dangerous explosions. Understanding how these valves work and their operating status is crucial for maintaining safe and efficient industrial operations.

This comprehensive analysis covers everything you need to know about pressure relief valves, from basic principles to advanced monitoring techniques. We'll explore different types of valves, common problems, maintenance strategies, and industry standards that keep these critical safety devices working properly.

Pressure Relief Valve DBW 20


What is a Pressure Relief Valve?

Basic Definition and How It Works

A pressure relief valve is like a safety guard for pressurized systems. Think of it as an automatic release button that opens when pressure gets too high. When the pressure inside a system reaches a dangerous level, the valve opens to let some of the pressurized fluid (gas or liquid) escape. Once the pressure drops back to a safe level, the valve closes again.

The valve works through a simple but effective mechanism. A spring or pilot system constantly monitors the pressure. When the pressure becomes strong enough to overcome the spring force, the valve opens. This happens automatically without any human control, making it a reliable last line of defense against pressure-related accidents.

Why Pressure Relief Valves Are So Important

Industrial accidents involving overpressure can be catastrophic. The famous Three Mile Island nuclear accident highlighted how critical these valves are for safety. Without proper pressure relief, equipment can explode, causing:

  • Serious injuries or death to workers
  • Massive property damage
  • Environmental contamination
  • Production shutdowns costing millions of dollars

PRVs serve as the final safety barrier, protecting both people and equipment when other control systems fail.

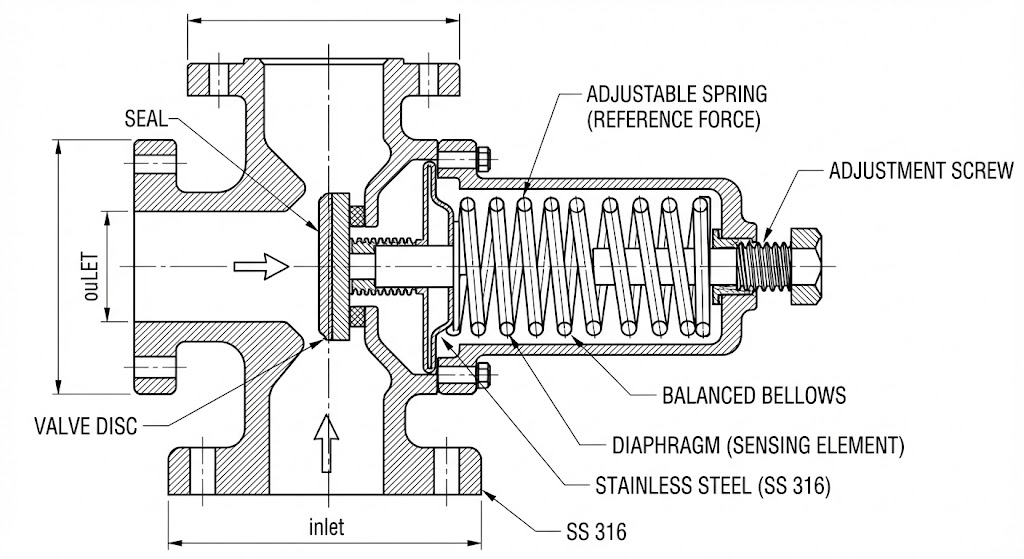

Main Parts of a Pressure Relief Valve

Understanding the key components helps explain how these valves operate:

Valve Elements: The main moving parts including the disc (the part that opens and closes) and seals that prevent leakage when closed.

Sensing Elements: These detect pressure changes. They can be either diaphragms (for low-pressure, high-accuracy applications) or pistons (for high-pressure, heavy-duty use).

Reference Force Elements: Usually adjustable springs that set the pressure level at which the valve opens. Additional parts like nozzles and pressure chambers fine-tune the valve's response.

Materials: Common materials include brass for general use and stainless steel (grades 303, 304, or 316) for corrosive environments. The choice depends on what type of fluid the valve handles and the operating conditions.

Modern valves like Emerson's J-Series use balanced bellows designs that reduce the effect of downstream pressure, making them more accurate and reliable.

Where Pressure Relief Valves Are Used

Industrial Applications

PRVs are found throughout many industries:

Oil and Gas: Protecting pipelines and processing equipment from dangerous pressure spikes.

Chemical Processing: Preventing reactor explosions and protecting against runaway reactions.

Steam Systems: Safeguarding boilers and steam distribution networks in power plants and manufacturing facilities.

Water Treatment: Maintaining safe pressures in water processing and distribution systems.

Pharmaceutical Manufacturing: Protecting sterile containers and processing equipment.

HVAC Systems: Ensuring safe operation of heating and cooling systems in buildings.

Common Overpressure Situations

Several conditions can cause dangerous pressure buildup:

  • Equipment malfunctions or control system failures
  • Blocked outlets or closed valves downstream
  • Temperature increases that expand fluids
  • Chemical reactions that produce gas
  • Power failures that stop cooling systems
  • Human error in operating procedures

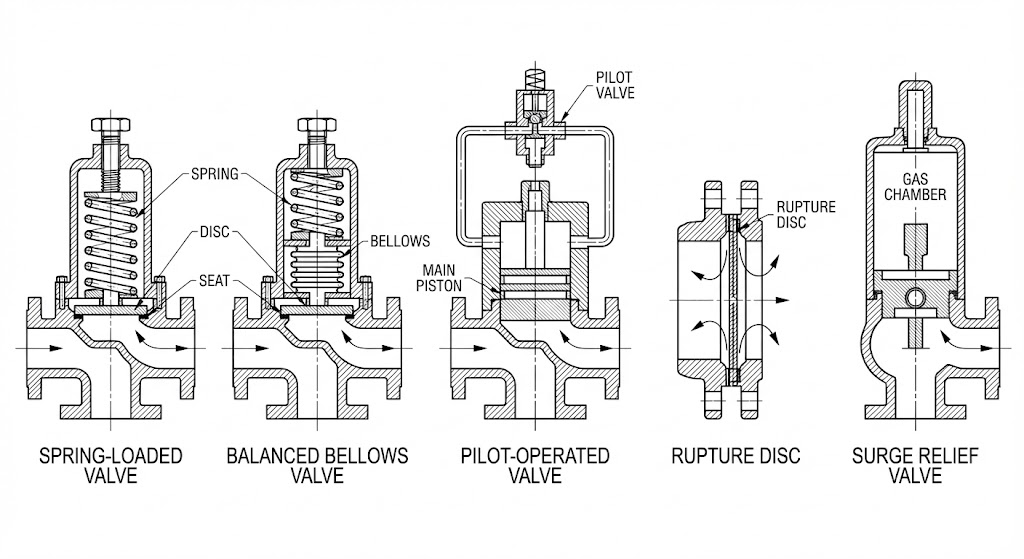

Types of Pressure Relief Valves

Pressure Relief Valves vs. Safety Relief Valves

While both types protect against overpressure, they work differently:

Pressure Relief Valves (PRVs): Open gradually and are typically used with liquids. They start opening at about 3-5% above the set pressure and fully close when pressure drops 2-4% below the set point.

Safety Relief Valves (SRVs): Open quickly with a "pop" action and are used with gases or steam. They can handle pressure increases of 10-20% above the set pressure.

Combination Valves: Can handle both liquids and gases, switching between gradual and pop action depending on the fluid type.

Main Types and Their Characteristics

Spring-Loaded Valves

These are the most common type, using a spring to hold the valve closed.

Advantages:
  • Simple and reliable design
  • Works in most applications
  • Easy to maintain
Disadvantages:
  • Sensitive to back pressure
  • Can chatter or vibrate under certain conditions

Best Used For: Steam boilers, general process applications

Balanced Bellows/Piston Valves

These valves compensate for back pressure effects using a bellows or piston system.

Advantages:
  • Not affected by changing back pressure
  • More accurate pressure control
  • Better for corrosive applications
Disadvantages:
  • More complex design
  • Bellows can wear out over time
  • Need venting systems

Best Used For: Systems with variable back pressure, dirty or corrosive services

Pilot-Operated Valves

These use a small pilot valve to control a larger main valve.

Advantages:
  • Very accurate (can operate at 98% of set pressure)
  • Don't chatter or vibrate
  • Good for large flow applications
Disadvantages:
  • More complex and expensive
  • Sensitive to contamination
  • Require more maintenance

Best Used For: Large capacity systems, high-pressure applications

Rupture Discs

These are thin metal discs that burst when pressure gets too high.

Advantages:
  • Very low cost
  • No leakage before activation
  • Can protect PRVs from corrosion
Disadvantages:
  • Single-use only
  • Create metal fragments when they burst
  • Require system shutdown to replace

Best Used For: Rare overpressure events, corrosive environments

Surge Relief Valves

These special valves open within milliseconds to protect against sudden pressure spikes.

Advantages:
  • Extremely fast response
  • Excellent for water hammer protection
  • Precise opening characteristics
Disadvantages:
  • Specialized application
  • Higher cost

Best Used For: Protecting against rapid pressure changes in pipelines

Key Operating Parameters

Set Pressure

This is the pressure at which the valve begins to open. It must be calibrated carefully, usually tested three times to ensure accuracy within ±3% or 0.1 bar. The normal operating pressure should be at least 20% below the set pressure (minimum 10%) to prevent leakage.

Relief Pressure and Overpressure

Relief pressure equals set pressure plus overpressure allowance. Different applications allow different overpressure levels:

  • General applications: 10%
  • Boiler applications: 3-5%
  • Fire emergency: up to 20%

ASME standards limit overpressure to 10% of Maximum Allowable Working Pressure (MAWP) for most vessels, or 21% during fire emergencies.

Reseat Pressure and Blowdown

Reseat pressure is when the valve fully closes again. Blowdown is the difference between set pressure and reseat pressure, typically 4-20%. A margin of 3-5% prevents chattering.

Maximum Allowable Working Pressure (MAWP)

This is the highest pressure the protected equipment can safely handle. The valve set pressure must not exceed MAWP, and the relief pressure must not exceed the Maximum Allowable Accumulated Pressure (MAAP).

Common Problems and Their Causes

Understanding typical failure modes helps with troubleshooting and prevention:

Valve Doesn't Open at Set Pressure

Causes:

  • Broken or weakened springs
  • Contamination blocking valve movement
  • Corrosion preventing operation
  • Incorrect calibration

Consequences: System overpressure, potential equipment damage or explosion

System Overpressure (Valve Fails to Open)

Causes:

  • Valve stuck due to contamination
  • Wrong valve selection or sizing
  • Severe corrosion damage

Consequences: Catastrophic failure, safety incidents (like the Three Mile Island case)

Valve Leakage

Causes:

  • Valve not closing properly
  • Wrong valve size for the application
  • Worn or damaged sealing surfaces
  • Thermal stress from temperature changes

Consequences: Energy loss, environmental release, system inefficiency

Chattering and Vibration

Causes:

  • Excessive inlet pressure drop (over 3%)
  • High back pressure
  • Oversized valve for the application

Consequences: Rapid wear of valve components, pipe damage, noise

Sticking, Wear, and Corrosion

Causes:

  • Contaminated fluids
  • Incompatible materials
  • Harsh operating conditions

Consequences: Valve failure, unexpected leakage, safety system compromise

Most problems stem from system issues rather than valve defects, emphasizing the importance of proper selection, installation, and maintenance.

Maintenance and Reliability Improvement

Maintenance Strategies

Preventive Maintenance: Regular inspection, cleaning, lubrication, and testing. High-risk applications may require annual maintenance.

Major Overhauls: Complete disassembly, non-destructive testing, component replacement, and full testing before returning to service.

Diagnostic Techniques

Basic Inspection: Visual checks and leak testing can identify obvious problems.

Advanced Non-Destructive Testing (NDT):

  • Acoustic emission monitoring
  • Ultrasonic testing
  • Magnetic particle inspection
  • Dye penetrant testing
  • Radiographic testing
  • Vibration analysis

These advanced techniques can detect problems early, reducing costs and preventing failures.

Smart Monitoring and Predictive Maintenance

Modern technology offers sophisticated monitoring systems:

Wireless Acoustic Monitoring: Systems like Rosemount 708 can detect valve operation without physical contact.

Position Transmitters: Devices like Fisher 4400 monitor valve position continuously.

Artificial Intelligence: AI and machine learning analyze monitoring data to predict failures before they occur.

Companies using these technologies report up to 50% reduction in unplanned shutdowns. Success stories from Shell, General Motors, and Frito-Lay show savings of millions of dollars through predictive maintenance programs.

Risk-Based Inspection (RBI) and Reliability-Centered Maintenance (RCM)

RBI: Quantifies the probability of failure and consequences, allowing maintenance resources to focus on the highest-risk equipment.

RCM: Takes a function-focused approach, determining the most effective maintenance tasks for each component.

These approaches work together to optimize maintenance schedules and improve overall system reliability.

Industry Standards and Regulations

Compliance with industry standards is essential for safety and legal operation:

ASME Boiler and Pressure Vessel Code

Section I (Boilers) and Section VIII (Pressure Vessels): Limit overpressure to 10-21% of MAWP depending on conditions. Require independent pressure protection for each vessel.

API Standards

  • API 520: Sizing calculations and flow requirements
  • API 521: Installation guidelines and system design
  • API 526: Valve procurement specifications
  • API 527: Seat tightness requirements

ISO 4126 Series

International standards covering safety valve requirements, including pilot-operated valves and rupture discs.

Pressure Equipment Directive (PED) 2014/68/EU

European regulations requiring CE marking and conformity assessment for pressure equipment.

OSHA Requirements

US workplace safety regulations prohibiting valve isolation and requiring independent pressure relief systems.

Technology Trends and Future Developments

Digital Integration

Modern PRVs increasingly incorporate digital monitoring and control systems. Smart valves can communicate their status, predict maintenance needs, and optimize performance automatically.

Advanced Materials

New materials resist corrosion better and last longer in harsh environments. These materials reduce maintenance requirements and improve reliability.

Simulation and Modeling

Computer simulations help engineers design better valve systems and predict performance under various conditions. This reduces the need for expensive physical testing.

Environmental Considerations

Newer valves minimize emissions and environmental impact while maintaining safety performance. This is particularly important in chemical processing and oil refining applications.

Conclusion and Recommendations

Key Findings

Pressure relief valve operating status involves both steady-state parameters (like set pressure and flow capacity) and transient response characteristics (like opening time and surge protection). Reliability depends on proper standards compliance, regular maintenance, and increasingly, smart monitoring systems.

Important discoveries from recent research:

  • Surge relief valves significantly outperform conventional valves for rapid pressure changes
  • Combination with rupture discs prevents leakage while allowing online testing
  • Most valve failures result from system problems rather than valve defects
  • Predictive maintenance using AI can dramatically reduce costs and improve safety

Action Recommendations

For Design and Selection:

  • Use API 520 calculations for proper sizing
  • Consider transient pressure simulations for critical applications
  • Reference manufacturer specifications from proven suppliers like Emerson and Crosby
  • Include surge protection for systems prone to water hammer

For Operation and Maintenance:

  • Maintain at least 20% pressure margin below set pressure
  • Implement advanced monitoring using NDT and AI systems
  • Use RBI and RCM approaches to optimize maintenance schedules
  • Train operators on proper valve operation and emergency procedures

For Regulatory Compliance:

  • Ensure strict documentation review and approval processes
  • Conduct regular Process Hazard Analysis (PHA) evaluations
  • Stay current with evolving standards and regulations
  • Maintain proper certification and testing records

For Business Support:

  • Utilize online selection tools and calculators
  • Access manufacturer datasheets and technical resources
  • Consider total cost of ownership, not just initial purchase price
  • Build relationships with qualified service providers

By following these recommendations and maintaining a comprehensive approach to pressure relief valve management, organizations can ensure safe, reliable, and cost-effective operations while meeting all regulatory requirements.

The future of pressure relief valve technology looks promising, with smart monitoring, predictive maintenance, and advanced materials continuing to improve safety and reliability. Staying informed about these developments and implementing best practices will be essential for maintaining competitive advantage while ensuring the highest levels of safety.
