When you notice water dripping from your pressure relief valve, your first reaction might be concern about equipment failure or safety risks. This dripping is actually your system's way of telling you something specific about its internal conditions. A pressure relief valve is designed to open automatically when pressure or temperature exceeds safe limits, protecting your equipment from catastrophic failure.
However, not all dripping indicates the same problem. Understanding the difference between normal operation and actual malfunction can save you significant repair costs while preventing dangerous situations.
Understanding How Pressure Relief Valves Work
Before diagnosing why water is dripping, you need to understand the basic mechanics of these safety devices. A pressure relief valve contains a spring-loaded disc that sits tightly against a valve seat. When system pressure pushes against this disc with enough force to overcome the spring tension, the valve opens and releases fluid.
Primary Causes of Relief Valve Dripping
The most common reason in modern homes. When water heats up, it expands. In closed systems (due to backflow preventers), this expanded water has nowhere to go, causing pressure to spike to 150 psi.
Key Indicator: Intermittent dripping that happens only during heating cycles (e.g., at night).
2. System Over-Pressurization
If your main water pressure exceeds 80 psi, a failed pressure reducing valve (PRV) can transfer high pressure directly to the heater.
Key Indicator: Constant or frequent activation, unrelated to heating.
3. Sediment Fouling
Mineral deposits (scale) can lodge between the disc and seat, preventing a seal. This often happens after testing the valve ("Monday morning syndrome").
Key Indicator: Slow, steady drip that started after maintenance.
4. Thermal Runaway (DANGER)
A dangerous situation where the burner doesn't stop firing. The valve opens because the temperature exceeds 210°F.
Warning Signs: Discharged water is extremely hot (steaming), and faucet water creates scalding risks.
Action: Shut down energy source immediately.
Diagnostic Matrix
Use this table to quickly identify your issue:
| Symptom Pattern | Probable Cause | Correction Approach |
|---|---|---|
| Intermittent dripping during heating recovery | Thermal expansion | Install properly sized thermal expansion tank |
| Continuous dripping regardless of heating | System over-pressurization | Install/replace main line pressure reducing valve |
| Dripping started after manual testing | Sediment contamination | Attempt flush procedure; replace valve if unsuccessful |
| Large discharge with steam | Thermal runaway | Immediate shutdown; replace thermostat |
| Visible corrosion | Mechanical failure | Valve replacement required |

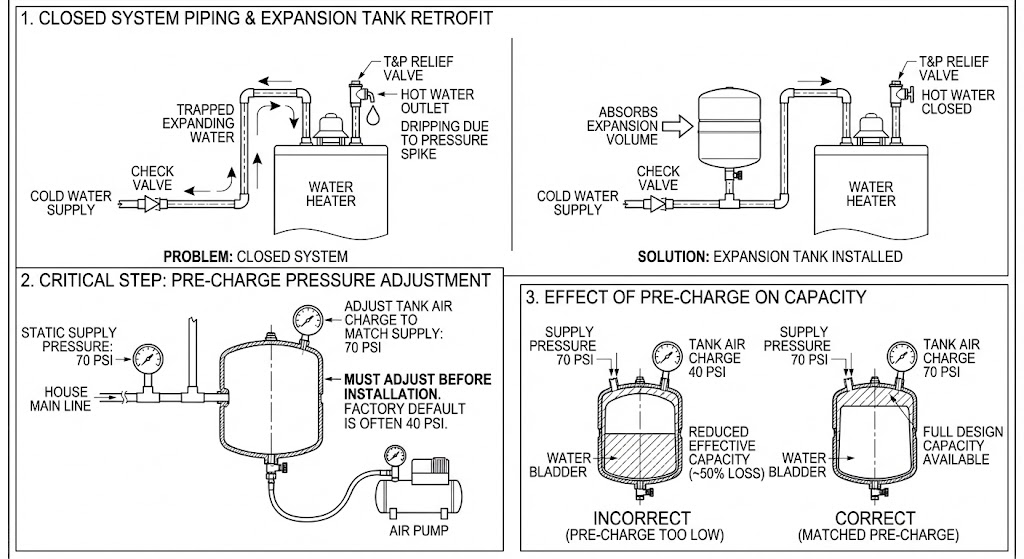

Engineering Solutions: Thermal Expansion Tanks
If thermal expansion is the cause, replacing the valve won't fix it. You need an expansion tank to absorb the extra volume.
Expansion Tank Sizing Reference| Water Heater Capacity | Recommended Tank Size | Typical Model |
|---|---|---|
| 30-50 gallons | 2.0-2.5 gallons | ST-5 or equivalent |
| 60-80 gallons | 3.2-4.5 gallons | ST-12 or equivalent |
Most tanks come with 40 psi pre-charge. You must adjust this to match your home's static water pressure (e.g., 60-70 psi) before installation. If you skip this, the tank's effective capacity is reduced by up to 50%.
Industrial Hydraulic System Considerations
For industrial hydraulics, the context changes slightly:
- Contamination: Unlike mineral scale, hydraulic valves suffer from particulate contamination (ISO 4406 standards). If cleanliness exceeds 19/17/14, particles can prevent closure.
- Thermal Stability: Operating above 160°F can cause fluid degradation and varnish deposits, interfering with valve mechanics.
Safety Protocols and Code Compliance
- Material: Must be rated for high heat (Copper, CPVC, PEX). No standard PVC (it melts).
- Slope: Continuous downward slope; no traps.
- Termination: Within 6 inches of the floor or a safe outdoor location (visible air gap required).
Systematic Diagnostic Procedure
Is it continuous or intermittent? Does it happen at night?
Use a gauge with a peak indicator for 24 hours. If peak hits 150 psi but resting is 60 psi = Thermal Expansion. If always >80 psi = High Supply Pressure.
Measure hot water. >140°F indicates thermostat issues. Boiling indicates runaway.
If the valve is older than 5 years and shows corrosion, replace it as preventive maintenance.
Conclusion: Replace vs. Repair
Relief valves are not repairable. If mechanical failure is confirmed, replace the valve. However, if the dripping is caused by thermal expansion (which is very common), replacing the valve won't help—the new valve will drip too because it's doing its job. In that case, the correct fix is installing or servicing the expansion tank.
