What does a pressure relief valve do?

2024-09-30

Pressure Relief Valve Guide

pressure relief valve

Have you ever wondered what keeps pipes, tanks, and boilers from exploding when pressure gets too high? The answer is a small but mighty device called a pressure relief valve. These safety heroes work 24/7 to protect us from dangerous pressure buildup that could cause serious accidents.

What Is a Pressure Relief Valve?

A pressure relief valve (also called a safety valve or relief valve) is like a safety guard for any system that uses pressurized fluids or gases. Think of it as an automatic door that opens when things get too "crowded" inside a pressure system.

Here's how it works in simple terms:

When pressure inside a system gets too high, the valve automatically opens

It releases the extra pressure safely

Once pressure drops back to normal levels, the valve closes again

This prevents dangerous explosions or equipment damage

Why Do We Need Pressure Relief Valves?

Imagine blowing up a balloon. If you keep blowing without stopping, what happens? It pops! The same thing can happen with pipes, boilers, and tanks if pressure gets too high. But instead of just a loud pop, this could cause:

Explosions that hurt people

Equipment damage costing thousands of dollars

Toxic spills that harm the environment

Work shutdowns that lose money

Pressure relief valves prevent these disasters by acting as the "last line of defense" when other safety systems fail.

How Does a Pressure Relief Valve Work?

The Basic Process

Think of a pressure relief valve like a weighted door. Here's what happens step by step:

Normal Operation: A spring or weight keeps the valve closed tightly

Pressure Builds: As pressure increases, it pushes against the valve

Opening Point: When pressure gets too high, it overcomes the spring force

Relief: The valve opens and releases excess pressure

Closing: Once pressure drops to safe levels, the spring closes the valve again

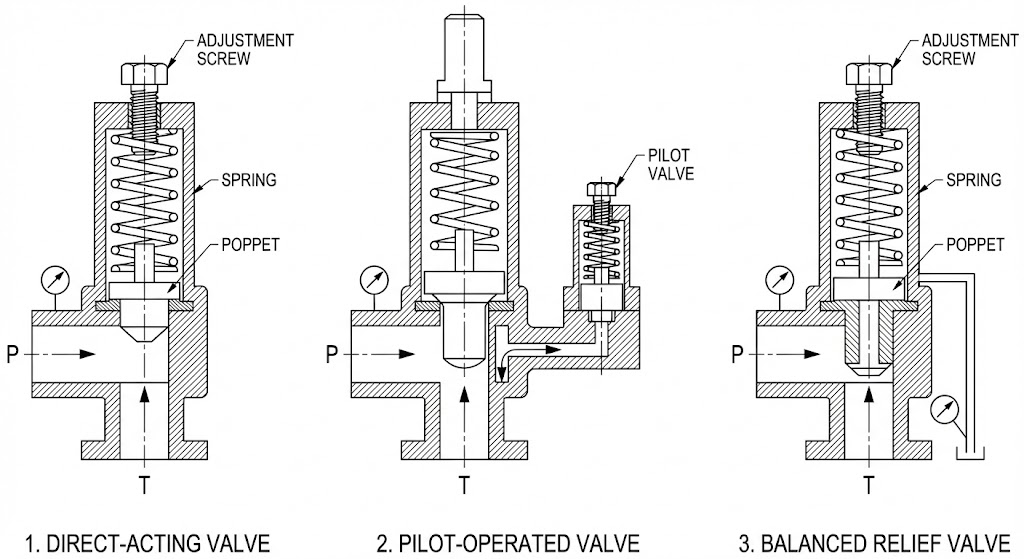

Types of Pressure Relief Valves

There are three main types, each working a bit differently:

1Direct-Acting (Spring-Loaded) Valves

Use a spring to keep the valve closed

Simple and reliable design

Open with a quick "pop" action

Best for systems that don't need pressure very often

2Pilot-Operated Relief Valves

Use a small pilot valve to control a larger main valve

Can handle much higher pressures

More precise control

Good for systems that need steady pressure control

3Balanced Relief Valves

Designed to work well even when there's backpressure

More expensive but very reliable

Used in complex systems where precision matters

Where Are Pressure Relief Valves Used?

Pressure relief valves are everywhere! You might find them in:

Industrial Applications

Oil and gas refineries - protecting pipelines and processing equipment

Power plants - keeping boilers and steam systems safe

Chemical factories - preventing dangerous chemical releases

Water treatment plants - protecting pumps and filtration systems

Everyday Applications

Home water heaters - preventing explosions from overheating

Car engines - protecting cooling systems

Air compressors - in garages and workshops

HVAC systems - in office buildings and schools

What Happens When Pressure Relief Valves Fail?

When pressure relief valves don't work properly, bad things can happen:

Common Problems

Won't open when needed - could lead to explosions

Won't close after opening - wastes fluid and reduces system pressure

Opens too early - causes unnecessary fluid loss

Leaks constantly - reduces system efficiency

Real-World Consequences

Equipment explosions costing millions of dollars

Worker injuries or deaths

Environmental damage from toxic spills

Factory shutdowns that affect entire communities

This is why regular testing and maintenance is so important!

How to Keep Pressure Relief Valves Working Properly

Installation Tips

Install valves vertically (straight up and down)

Keep inlet pipes short and straight

Support outlet pipes to prevent stress

Never paint over the valve body

Regular Maintenance

Test every 6-12 months to make sure they open at the right pressure

Clean regularly to remove dirt and debris

Replace worn parts like springs and seals

Keep records of all tests and repairs

Warning Signs to Watch For

Visible leaks around the valve

Corrosion or rust on valve parts

Valve doesn't return to closed position after testing

Pressure readings don't match valve settings

Choosing the Right Pressure Relief Valve

When selecting a pressure relief valve, consider these factors:

System Requirements

Maximum pressure the system can handle safely

Flow capacity needed during relief

Type of fluid (gas, liquid, or steam)

Operating temperature range

Environmental Factors

Corrosive chemicals that might damage valve parts

Extreme temperatures that affect valve performance

Vibration from nearby equipment

Space limitations for valve installation

Compliance Standards

Most pressure relief valves must meet ASME (American Society of Mechanical Engineers) standards to ensure safety and reliability.

The Bottom Line: Why Pressure Relief Valves Matter

Pressure relief valves are small devices that do a big job. They're like silent guardians, always ready to protect us from dangerous pressure buildup. While we might not think about them every day, they're working around the clock to keep our workplaces, homes, and communities safe.

Whether it's the water heater in your basement or the massive boilers at a power plant, pressure relief valves are there to prevent disasters. By understanding how they work and keeping them properly maintained, we can all help ensure these important safety devices continue protecting us.

Remember: when it comes to pressure safety, it's always better to prevent problems than to deal with the consequences. That's exactly what pressure relief valves do - they prevent small problems from becoming big disasters.

Frequently Asked Questions

Q: How often should pressure relief valves be tested?

A: Most experts recommend testing every 6-12 months, but check your local regulations and manufacturer recommendations.

Q: Can I repair a pressure relief valve myself?

A: Only qualified technicians should repair pressure relief valves. Improper repairs can be extremely dangerous.

Q: What's the difference between a pressure relief valve and a pressure reducing valve?

A: Relief valves release excess pressure to prevent damage. Reducing valves lower incoming pressure to a desired level for normal operation.

Q: Do all pressurized systems need relief valves?

A: Most pressurized systems require relief valves by law, especially those in commercial and industrial applications.

Understanding pressure relief valves is key to industrial safety and equipment protection. For specific applications or technical questions, always consult with qualified valve specialists and follow applicable safety codes and regulations.
