What Is a One-Way Valve in a Hydraulic System? Full Guide with Functions and Types

https://www.huadeonline.com/check-valve

Have you ever wondered how big machines like excavators or giant cranes get their power? They use something called a hydraulic system, which is like the machine's muscles, but instead of blood, it uses special oil (called hydraulic fluid) to move things around.

For these powerful systems to work just right, the fluid needs to flow in only one direction. Think of it like a one-way street for liquid! And that's where our super important heroes come in: one-way valves.

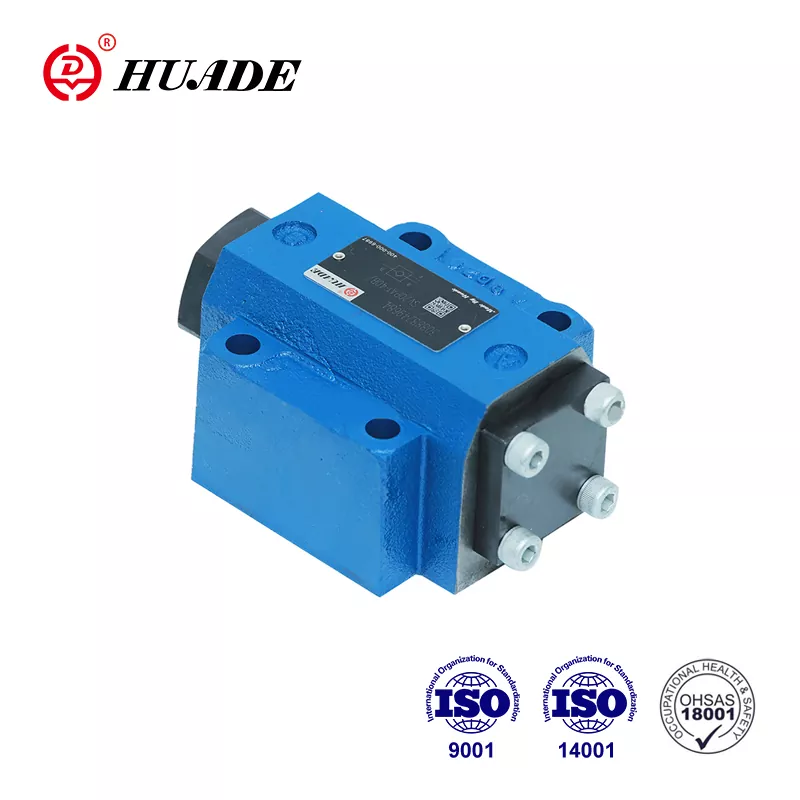

What Exactly is a One-Way Valve?

Imagine a door that only opens one way. You can push through it to go forward, but if you try to push it from the other side, it stays shut. That's pretty much what a one-way valve does!

In a hydraulic system, a one-way valve (also known as a check valve or non-return valve) is a simple mechanical part that lets hydraulic fluid flow in one direction only. It automatically stops the fluid from flowing backward. This is super important because if the fluid flows the wrong way, it can mess up the whole system, damage expensive parts like the pump, or even make the machine unsafe.

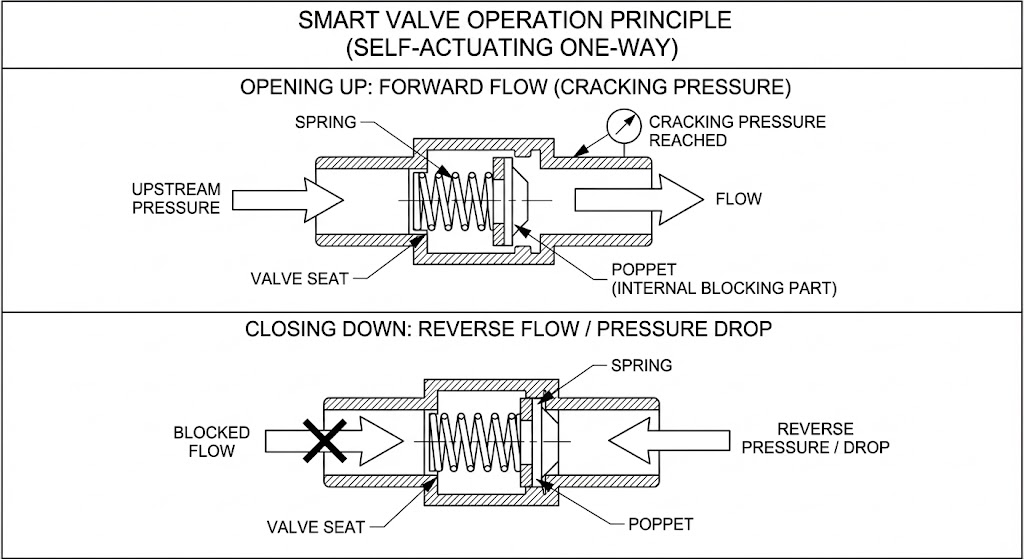

How Do These Smart Valves Work?

One-way valves are pretty clever because they don't need any electricity or complicated controls. They just use the pressure of the fluid itself!

1. Opening Up (Cracking Pressure): When the fluid pushes from the correct direction with enough force, it opens the valve. This "enough force" is called cracking pressure. It's the minimum amount of upstream pressure required to push open the valve's internal blocking part (like a spring-loaded poppet or ball) and allow fluid to start flowing. Think of it as the initial "push" needed to get the door open.
2. Closing Down: If the fluid tries to flow backward, or if the forward pressure drops, the valve quickly slams shut. This happens because of a spring inside, or sometimes just gravity, pushing a small part (like a poppet, ball, or disc) against a valve seat. The valve seat is the special surface inside the valve that the movable part seals against to block the flow. This action prevents the fluid from going the wrong way.

Because they work all by themselves, just reacting to pressure changes, they are super reliable and act like a safety guard in important machines.

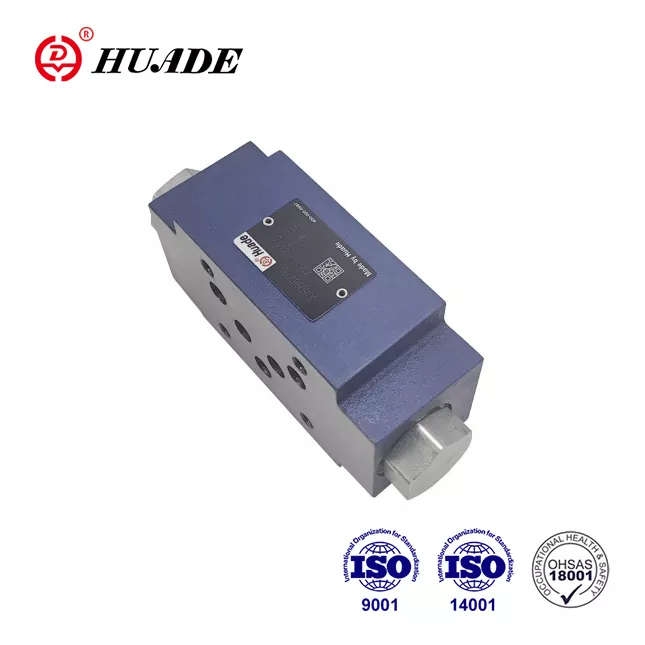

Different Kinds of One-Way Valves

Just like there are different kinds of doors, there are different kinds of one-way valves, each designed for a specific job. Here are a few common ones:

• Spring-Loaded Valves: These are very common. They have a little spring that pushes a poppet (a movable part, often cone-shaped or disc-shaped, that blocks the flow) or a disc against a seat. When the fluid pushes hard enough, it squishes the spring and opens the valve. When the pressure drops, the spring pushes it closed. They're great because they can be installed in any direction.
• Lift Check Valves: These often have a disc that just lifts up when fluid flows in the right direction. Gravity helps it fall back down to close when the flow stops or tries to go backward. They usually need to be installed pointing straight up.
• Swing Check Valves: Imagine a small door (a disc) inside the pipe that swings open when fluid flows through. If the fluid tries to go backward, it pushes the door shut. These are good for large pipes because they don't block the flow much.
• Ball Check Valves: These use a ball that gets pushed away from a seat by the fluid. If the fluid tries to reverse, the ball rolls back and seals the opening. They're great for making sure things seal really well.

What Important Jobs Do One-Way Valves Do?

These little valves have some really big responsibilities in a hydraulic system:

• Stopping Backward Flow: This is their main job! They make sure fluid only travels in the correct direction, protecting the pump (the heart of the system) from damage if fluid tries to rush back into it.
• Keeping Pressure Where It Belongs: Imagine you lift something heavy with a hydraulic cylinder. A one-way valve can "lock" the fluid in the cylinder, so the heavy thing stays up even if the pump stops.
• Protecting the Pump from Air Bubbles: When a system starts up, one-way valves help keep the pump full of fluid and prevent air bubbles from forming, which can damage the pump.
• Making Things Move in Order: In complex machines, different parts need to move in a specific sequence. One-way valves can help make sure one action happens completely before the next one starts.
• Holding Things Still (Actuator Locking): If a hydraulic cylinder or motor is holding a heavy load, a one-way valve can act like a brake, preventing it from moving unless it's supposed to.

Working Together with Other Parts

One-way valves are team players! They work hand-in-hand with other parts of the hydraulic system to ensure everything runs smoothly:

• Protecting Pumps: They're often placed right after the pump to prevent fluid from flowing backward and damaging it.
• Controlling Actuators: They can lock hydraulic cylinders or motors in position, ensuring precise movement and holding loads securely.
• Enhancing Valve Functions: They can work with other control valves to create backpressure or allow fluid to bypass certain paths, improving overall system control.
• Securing Accumulators: They prevent stored pressure in accumulators from flowing back into the pump, keeping the system safe.

Why Are They So Important for Safety and Efficiency?

You might think a small valve isn't a big deal, but it is!

• Safety First! By preventing fluid from going the wrong way, one-way valves stop dangerous pressure spikes and keep the system from getting contaminated. This means fewer accidents and less chance of a machine breaking down unexpectedly.
• Saving Energy: When fluid flows smoothly and only in the right direction, the system works more efficiently. This means less wasted energy and lower operating costs.
• Super Reliable: Since they work automatically without any extra controls, they are very dependable and help machines last longer.

Think of it this way: a tiny one-way valve might only cost around $150, but if it fails, it could lead to huge problems. Replacing a damaged pump could cost $15,000, and if the machine stops working, it could cost $50,000 in lost time! So, that little valve is like a super important insurance policy for the whole system.

When Things Go Wrong (And How to Fix Them)

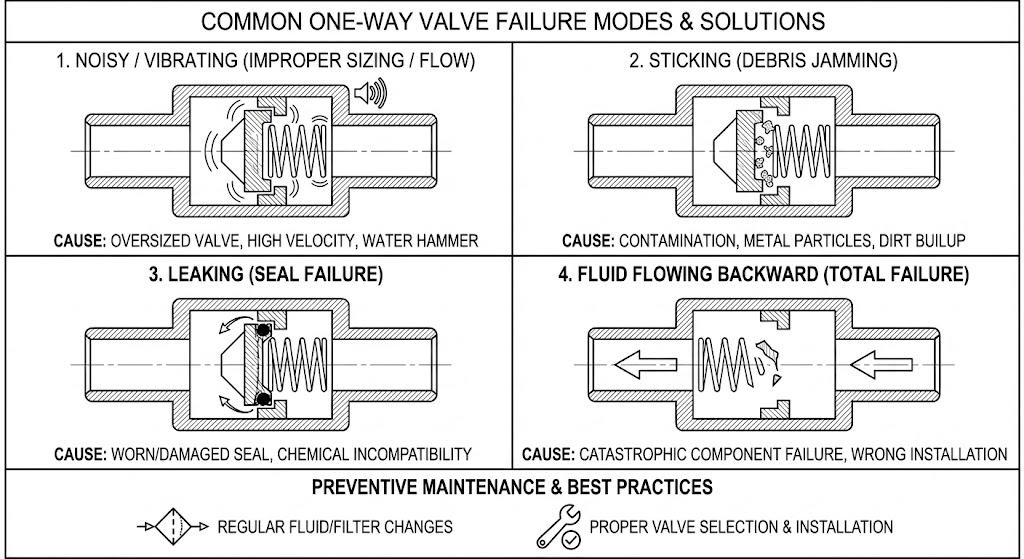

Even heroes can have bad days. Here are some common problems with one-way valves:

• Noisy or Vibrating: This might mean the valve is too big or too small, or that the fluid is hitting it too hard when it closes.
• Sticking: Sometimes, dirt or tiny pieces of metal in the fluid can get stuck in the valve, making it stay open or closed when it shouldn't.
• Leaking: If the seal inside the valve gets damaged, fluid can slowly leak backward.
• Fluid Flowing Backward: This is the biggest sign that the valve has completely failed and isn't doing its job anymore.

To keep these valves working well, it's important to keep the hydraulic fluid clean by changing filters regularly. Also, making sure the right valve is installed in the right way is key!

Where Do We See One-Way Valves?

These valves are everywhere!

• Construction Machines: Like the excavators we talked about, they help hold up heavy loads.
• Cars: They're in your car's braking system (like ABS brakes) and power steering.
• Airplanes: They help control landing gear and other important parts.
• Farm Equipment: Tractors use them for their lifting systems.
• Wind Turbines: They help control how the blades turn.

Picking the Right Valve

Choosing the right one-way valve is important. Engineers look at things like:

• How much pressure is needed to open it (cracking pressure)?
• What material should it be made of? (Stainless steel for harsh liquids, for example).
• How should it be installed? (Some need to be vertical, others can be any way).

The Unsung Heroes

So, the next time you see a powerful machine at work, remember the tiny but mighty one-way valves hidden inside. They are the unsung heroes of hydraulic systems, quietly working to make sure everything flows smoothly, safely, and efficiently. Without them, our modern world would be a much less powerful place!
