A Guide to Flow Control Valve Types and Use Cases


What Are Flow Control Valves?

Think of flow control valves like the faucet in your kitchen sink. Just as you turn the handle to control how much water comes out, flow control valves do the same thing in big industrial systems. They control how much liquid or gas flows through pipes in factories, power plants, and water treatment facilities.

These valves are super important because they help:

  • Control the speed of machines
  • Mix chemicals in the right amounts
  • Save energy by not wasting fluids
  • Keep systems safe by preventing too much pressure

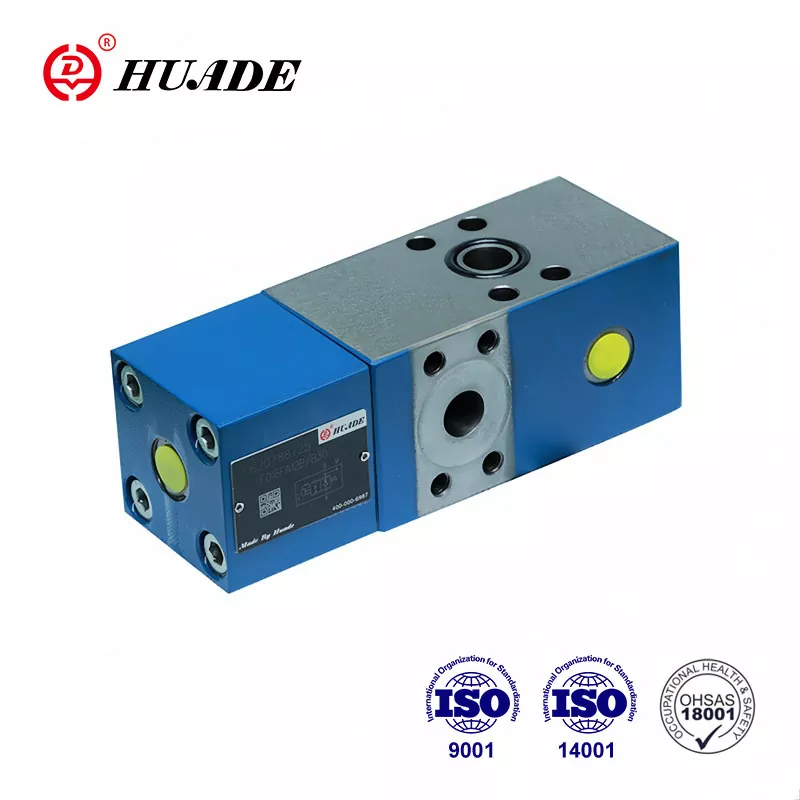

How Do Flow Control Valves Work?

The basic idea is simple: make the opening smaller, and less fluid flows through. Make it bigger, and more fluid flows through. It's like putting your thumb over a garden hose - the tighter you press, the less water comes out.

Most flow control valves work by moving a part (like a disc, ball, or needle) that changes the size of the opening that fluid flows through.

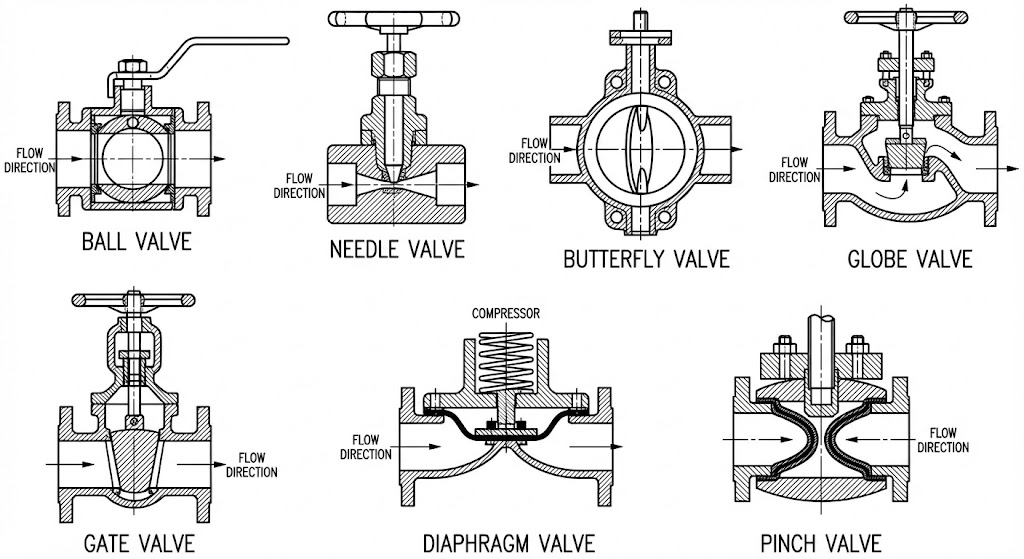

Types of Flow Control Valves

Let's look at the most common types of flow control valves and when to use each one:

1. Ball Valves

What they are: A ball with a hole through it sits inside the valve. When you turn the handle, the ball rotates to open or close the flow.

Ball valves shine in applications where you need reliable on/off control - think water systems, oil and gas pipelines, and anywhere tight shut-off is critical. These valves are cost-effective workhorses known for their durability and excellent sealing capabilities. However, if you're looking for fine-tuned flow adjustments, they might not be the best fit since their quarter-turn operation makes precise throttling challenging.

2. Needle Valves

What they are: A pointed stem (like a needle) fits into a small seat. You can adjust it very precisely to control tiny amounts of flow.

Needle valves offer linear flow characteristics, making them ideal for fine metering applications under low flow and high-pressure conditions. When precision matters most - like in scientific equipment, calibration systems, or small pneumatic circuits - these valves deliver exceptional accuracy within ±1-2%. Their main limitation? They're designed for smaller flow rates, so don't expect them to handle large volumes efficiently.

3. Butterfly Valves

What they are: A flat disc rotates inside the pipe. When it's sideways, flow is blocked. When it's lined up with the pipe, flow is open.

These space-saving champions are perfect for large water systems, power plants, and food processing facilities. Butterfly valves combine affordability with versatility, offering both on/off and throttling capabilities in a lightweight package. The trade-off comes with their non-linear flow characteristics - while great for most applications, they won't give you the precision needed for critical process control where exact flow rates matter.

4. Globe Valves

What they are: A disc moves up and down to control flow. The design looks like a globe, which is where the name comes from.

Globe valves excel in applications requiring excellent throttling control and precise flow regulation. Their linear motion design provides consistent flow characteristics across the operating range, making them indispensable in high-pressure systems, chemical mixing processes, and anywhere you need reliable flow modulation. The main consideration is their higher pressure drop and cost compared to simpler valve designs, but this investment often pays off through superior performance and longevity.

5. Gate Valves

What they are: A flat gate moves up and down across the pipe, like a sliding door.

Gate valves serve as reliable isolation devices in large pipelines and water systems where full bore flow is essential. When fully open, they create minimal pressure drop, making them energy-efficient choices for main line applications. However, these aren't throttling valves - using them for flow control will cause seat damage and vibration. Stick to their strength: complete isolation when you need it.

6. Diaphragm Valves

What they are: A flexible rubber sheet presses against the pipe to control flow.

Diaphragm valves are the clean-room champions of the valve world. Their unique design isolates the flow media from all moving parts, making them essential for pharmaceutical manufacturing, food processing, and high-purity applications. They deliver leak-proof operation and easy sterilization, though they're limited to moderate operating conditions due to diaphragm material constraints.

7. Pinch Valves

What they are: A rubber sleeve gets squeezed to control flow, like pinching a straw.

Pinch valves handle what other valves can't - abrasive slurries, solids-laden fluids, and corrosive media that would destroy conventional internals. The rubber sleeve is the only component in contact with the flow, making these valves incredibly cost-effective for tough applications in wastewater treatment and mining operations. Their operating range is limited by the sleeve material properties, but within those parameters, they're nearly indestructible.

How to Choose the Right Valve

Picking the right flow control valve depends on several things:

1. What's Flowing Through It?

  • Clean water: Ball or butterfly valves work great
  • Dirty water with particles: Use pinch or diaphragm valves
  • Chemicals: Globe or diaphragm valves are safer
  • High-pressure steam: Globe valves handle this best

2. How Precise Do You Need to Be?

  • Just on/off: Gate or ball valves are perfect
  • Some control: Butterfly or globe valves work well
  • Super precise: Needle valves are your best choice

3. What Size Pipe?

  • Small pipes: Needle or ball valves
  • Medium pipes: Globe or ball valves
  • Large pipes: Butterfly or gate valves

4. Budget and Maintenance

  • Cheap and simple: Ball or butterfly valves
  • Low maintenance: Diaphragm valves
  • Long-lasting: Globe or gate valves





Where Are Flow Control Valves Used?

Water Treatment Plants

These facilities use butterfly and gate valves to control huge amounts of water. They need valves that can handle big flows and don't cost too much.

Chemical Plants

Safety is super important here. They use globe and diaphragm valves because these can handle dangerous chemicals and give precise control.

Food and Medicine Factories

Cleanliness matters most. Diaphragm and pinch valves keep the product pure and are easy to clean.

Oil and Gas Industry

These systems have high pressure and need tight shut-off. Ball and gate valves are common because they're strong and reliable.

Power Plants

These need valves that can handle super hot steam and high pressure. Special butterfly valves and globe valves do this job.

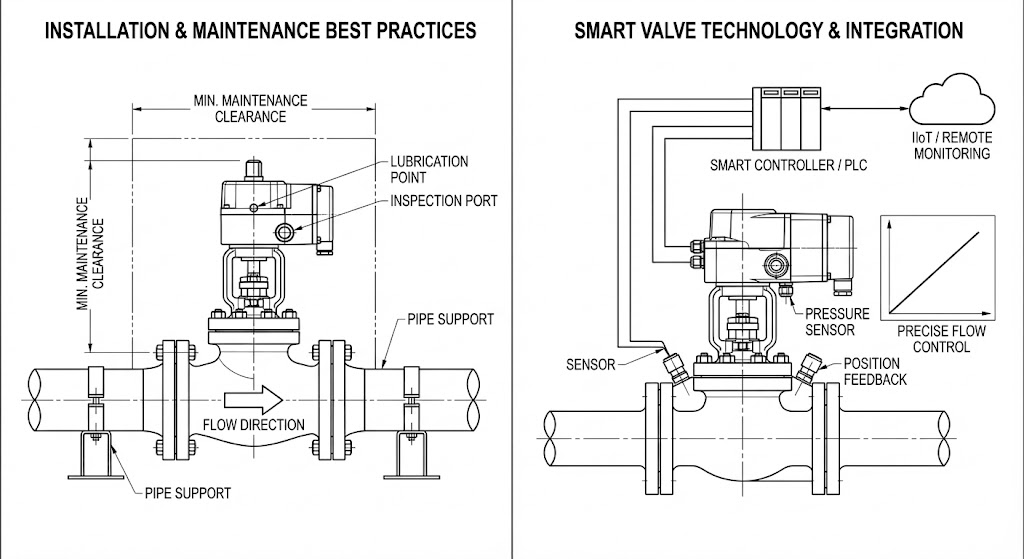

Installation and Maintenance Tips

Installing Your Valve

  1. Check the flow direction - Most valves have arrows showing which way fluid should flow
  2. Support the pipes - Don't let the valve hold up heavy pipes
  3. Leave space for maintenance - You'll need room to work on it later
  4. Use the right tools - Tighten connections properly but don't over-do it

Taking Care of Your Valve

  1. Regular checks - Look for leaks, weird noises, or hard operation
  2. Keep it clean - Remove dirt and debris that might cause problems
  3. Lubricate moving parts - Follow the manufacturer's instructions
  4. Test operation - Make sure it opens and closes smoothly
  5. Replace worn parts - Don't wait until something breaks completely

New Technology in Flow Control Valves

The valve industry is getting smarter! Here are some cool new features:

Smart Valves

These valves can "talk" to computers and smartphones. They can:

  • Tell you if they're working properly
  • Adjust themselves automatically
  • Send alerts before they break
  • Save energy by optimizing flow

Better Materials

New materials last longer and resist chemicals better. This means:

  • Less maintenance
  • Longer valve life
  • Better performance in tough conditions

Precise Control

Computer-controlled valves can adjust flow incredibly precisely. This helps:

  • Save money on materials
  • Reduce waste
  • Improve product quality
  • Meet strict environmental rules

Common Problems and Solutions

Problem: Valve Won't Close Completely

Possible causes: Dirt in the seat, worn parts, wrong installation Solutions: Clean the valve, replace worn parts, check installation

Problem: Hard to Operate

Possible causes: No lubrication, corrosion, wrong actuator size
Solutions: Add proper lubricant, clean corrosion, check if actuator is big enough

Problem: Leaking Around the Stem

Possible causes: Worn packing, loose bolts, chemical damage Solutions: Replace packing material, tighten properly, check chemical compatibility

Problem: Flow Control Not Precise

Possible causes: Wrong valve type, worn internal parts, improper sizing Solutions: Consider different valve type, replace internal parts, check if valve is right size

Safety Considerations

Flow control valves can be dangerous if not handled properly:

Pressure Safety

  • Never work on pressurized systems
  • Use proper lockout/tagout procedures
  • Wear safety equipment
  • Know emergency shutdown procedures

Chemical Safety

  • Check material compatibility before installation
  • Use proper protective equipment
  • Follow all chemical handling procedures
  • Have emergency response plans ready

Temperature Safety

  • Let hot systems cool down before maintenance
  • Use heat-resistant gloves and clothing
  • Be aware of thermal expansion effects
  • Install temperature monitoring if needed

Cost Considerations

Initial Cost

  • Cheapest: Ball, butterfly, pinch valves
  • Medium cost: Globe, gate valves
  • Most expensive: Precision needle valves, smart valves

Operating Costs

  • Energy use: Butterfly valves use less energy than globe valves
  • Maintenance: Diaphragm valves need less maintenance than complex valves
  • Replacement parts: Common valves have cheaper parts

Total Cost of Ownership

Sometimes spending more upfront saves money over time:

  • Better valves last longer
  • Precise control reduces waste
  • Smart features prevent expensive breakdowns
  • Good maintenance programs extend valve life

Environmental Impact

Modern flow control valves help protect the environment by:

  • Reducing waste through precise control
  • Saving energy with efficient designs
  • Preventing spills with better sealing
  • Using sustainable materials in construction
  • Enabling recycling of process fluids

Future Trends

The flow control valve industry is moving toward:

  • More automation - Less human intervention needed
  • Better sensors - Valves that know more about what's happening
  • Wireless communication - No more complex wiring
  • Predictive maintenance - Fix problems before they happen
  • Energy efficiency - Valves that use less power to operate

Conclusion

Flow control valves are essential parts of modern industrial systems. They control how fluids move through pipes, helping save energy, maintain safety, and ensure quality.

The key to success is choosing the right valve for your specific job. Consider what's flowing through it, how precisely you need to control it, your budget, and maintenance requirements.

Whether you need a simple ball valve for on/off control or a precise needle valve for exact flow rates, understanding these basics will help you make the right choice.

Remember that proper installation and maintenance are just as important as choosing the right valve. Take care of your valves, and they'll take care of your system for years to come.

As technology advances, flow control valves are becoming smarter and more efficient. While the basic principles stay the same, new features like smart controls and better materials are making these essential components even more valuable in industrial applications.

The most important thing is to match the valve to your specific needs. When in doubt, consult with valve experts who can help you choose the best solution for your particular application.
