Huafilter is a China supplier providing high-quality and low-cost Huade® pressure relief valve for our partners. Huade® brand has a good reputation in China. Pressure Relief Valves DB.K are more advanced in technology in this field. They have always come up to the international standards. Our pressure valves have superior performance and lower prices, attracting many domestic and foreign customers. We can provide technical support cause we have professional sales engineers. Our vision is to create a new chapter of cooperation with global partners.
Through introducing Rexroth's advanced technology, Huade Hydraulic has made significant progress in the design, manufacturing of hydraulic components and integrated equipment. Huade® pressure relief valves DB.K are more durable compared with other similar products. They can replace the products offered by Rexroth in the same series. In order to provide affordable products, the factory pays more attention to practicality while introducing more than 750 advanced production equipment from all over the world to ensure the quality. The factory has passed ISO9001, ISO14001 and OH SAS18001. Huade® hydraulic pressure valves have won wide market recognition. Due to reliable quality and stable performance, they are widely used in various industrial environment such as the construction machinery and marine hydraulic system.
Product parameter of Pressure Relief Valves DB.K
Nominal size
6
10
20
Pressure fluid
Mineral oil (for NBR seal),or phosphate ester (for FPM seal)
Pressure fluid -temperature range(℃)
-30~+80
Viscosity range (mm ²/s)
10 to 800
Degree of fluid contamination
Maximum permissible degree of contamination
of the fluid is to NAS 1638. class 9
Operating pressure, max. (MPa)
up to 31.5
Pressure adjustable, max (MPa)
up to 5、up to 10、up to 20、up to 31.5
Flow, max (L/min)
up to 60
up to 100
up to 300
Weight (Kg)
approx.0.15
approx.0.2
approx.0.35
Product Feature And Application of Pressure Relief Valves DB.K
Features:

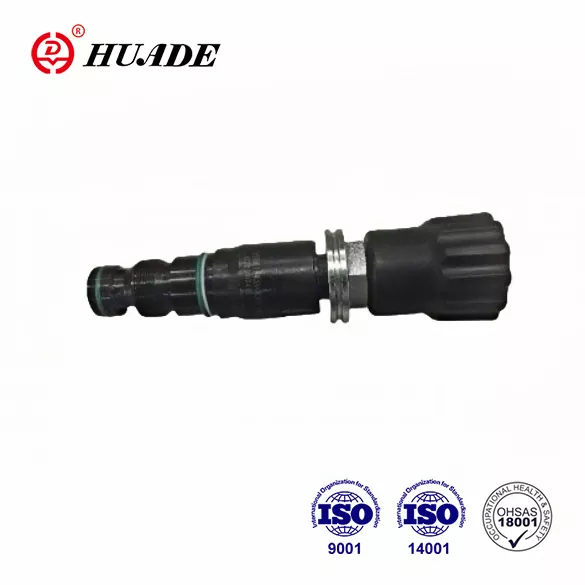

▶ Cartridge valve
▶ 4 pressure ranges
▶ 4 adjustment elements
. Rotary knob
. Sleeve with hexagon and protective cap
. Lockable rotary knob with scale
. Rotary knob with scale
Application:
Pressure relief valves type DB..K.. are pilot operated pressure relief valves for installation in cartridge. They are used to limit the pressure in a hydraulic system.
Function, Section And Symbols of Pressure Relief Valves DB.K
Setting of the system pressure is via adjustment element (4). At rest, the valves are closed. Pressure in port A acts on the spool (1). At the same time, pressure is passed through orifice (2) on to the spring loaded side of the spool(1) and through orifice (3) to the pilot poppet(6). If the pressure
in port Arises above the value set at spring (5), the pilot poppet (6) opens. Fluid can now flow from the spring loaded side of spool (1), orifice (3), and channel (8) into port Y. The resulting pressure drop moves spool(1) causing this to open the connection from A to B, while the pressure set at spring (5) is maintained.
Pilot oil return from the two spring chambers is taken externally via port Y.
structure of DB 10 K2-40B
Symbol
Notice
1.The fluid must be filtered. Minimum filter fineness is 20 ㎛.
2.The tank must be sealing up and an air filter must be installed on air entrance.
3.Products without subplate when leaving factory, if need them, please ordering specially.
4.Valve fixing screws must be high intensity level (class 10.9). Please select and use,them according to the parameter listed in the sample book.
5. Roughness of surface linked with the valve is required surface roughness is 0.8.
6. Surface finish of mating piece is required to 0.01/100mm.
For inquiries about hydraulic valves, soleniod directional valves, proportional valves or price list, please leave your email to us and we will be in touch within 24 hours.
