In the world of internal combustion engines (ICE), the Throttle Valve is far more than just a flap that opens when you press the gas pedal. It is the primary interface between the driver’s intent and the engine’s physical output.
As a senior engineer with two decades in powertrain development, I can tell you that while the throttle looks like a simple butterfly valve, its role has evolved from a basic mechanical air-blocker into a sophisticated mechatronic sub-system critical for emissions, safety, and efficiency.
Fluid Dynamics: The Physics of Airflow
At its core, a throttle body is a Butterfly Valve designed to regulate the Mass Air Flow \(\dot{m}\) into the intake manifold. However, the airflow isn't linear.
Choked Flow and Sonic VelocityWhen the engine is idling, the pressure difference between the atmosphere and the intake manifold is immense. This leads to a phenomenon called Choked Flow. When the pressure ratio \(P_{down}/P_{up}\) drops below 0.528, the air reaching the valve's edge hits Mach 1 (the speed of sound).
At this point, even if the manifold vacuum increases, the airflow rate stays constant. This physical "limit" is what allows your engine to maintain a rock-steady idle speed regardless of small pressure fluctuations.
Pumping Losses (The Efficiency Killer)In gasoline engines, the throttle valve is the main cause of Pumping Loss. When you are cruising at partial load, the engine has to work hard just to "suck" air past the partially closed valve. This creates a vacuum that the pistons must fight against, wasting energy. This is why technologies like BMW’s Valvetronic were invented—to eliminate the throttle valve’s restriction and let the engine breathe freely.
Technical Comparison: Gasoline vs. Diesel Throttles
It’s a common misconception that all throttles do the same thing. In reality, a gasoline throttle and a diesel throttle (Intake Throttle Valve) have completely different "personalities."
| Feature | Gasoline (SI) Engine | Diesel (CI) Engine |
|---|---|---|
| Primary Goal | Torque Control: Directly regulates power output. | Thermal Management: Manages EGR and DPF temps. |
| Default State | Nearly closed at idle. | Wide open (WOT) most of the time. |
| Critical Function | Air-Fuel Ratio (Lambda 1.0) maintenance. | Driving EGR flow by creating pressure differential. |
| Shutdown Role | Prevents "Run-on." | Anti-Shudder: Prevents violent shaking during shut-off. |
Electronic Throttle Control (ETC) Architecture
Modern cars use Drive-by-Wire or Electronic Throttle Control (ETC). There is no cable connecting your foot to the engine. Instead, a DC motor drives the valve based on PWM signals from the ECU.
Safety is paramount. Every electronic throttle body features a Dual-Spring Mechanism. If the motor loses power, the springs don't pull the valve fully shut. Instead, they pull it to a Default Position (roughly 16-20% open). This allows the engine to stay running at a high idle, providing just enough power to "limp home" safely.
The ECU monitors two Throttle Position Sensors (TPS). To prevent unintended acceleration, the signals are inverses:
- TPS 1: 0.5V to 4.5V
- TPS 2: 4.5V to 0.5V
If the sum of these two voltages doesn't equal 5.0V, the ECU detects a correlation fault (Code P2135) and instantly cuts power to the throttle motor.
Maintenance Myths & Engineering Realities

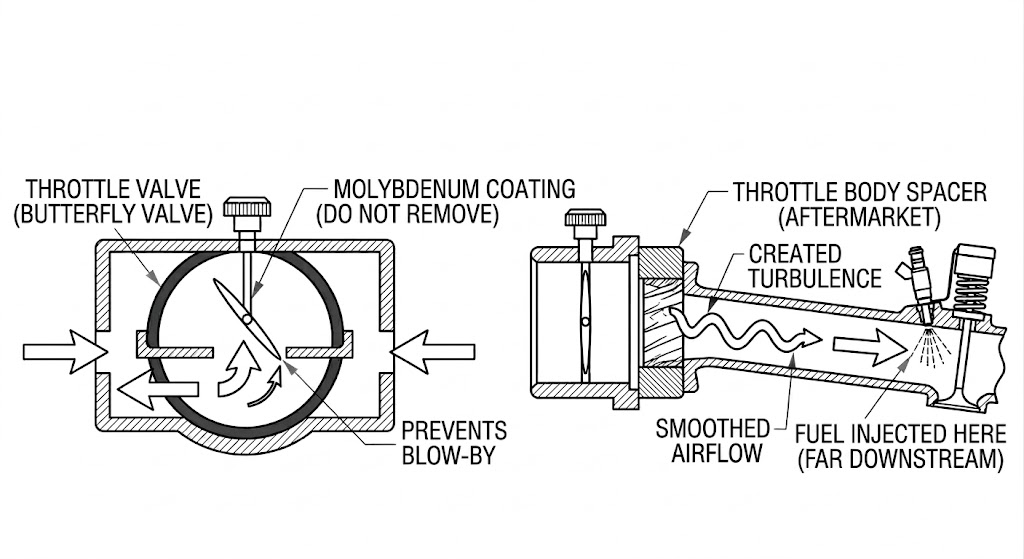

Inside the throttle bore, you might see a dark, greasy-looking ring around the blade. Do not scrub this off. This is a Molybdenum Disulfide coating applied by the OEM. It acts as a dry lubricant and a seal to prevent "blow-by" at idle. Removing this with harsh cleaners causes permanent high-idle faults.
You may see "Throttle Body Spacers" marketed to increase swirl and horsepower. From a fluid dynamics perspective, these are useless on modern fuel-injected engines. Since fuel is injected at the intake valves (far downstream), any turbulence created by a spacer is long gone by the time air reaches the combustion chamber.
Summary and Troubleshooting
If your vehicle is experiencing a rough idle, stalling, or a "Limp Mode" warning, the throttle valve is the prime suspect.
- Carbon Buildup: The most common issue. Oil vapors bake onto the valve, physically blocking the air path.
- Gear Failure: Plastic internal gears become brittle over time due to high under-hood temperatures, leading to stripped teeth and a stuck valve.
