Check Valve Rexroth Interchangeable

Check Valve S30P

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock

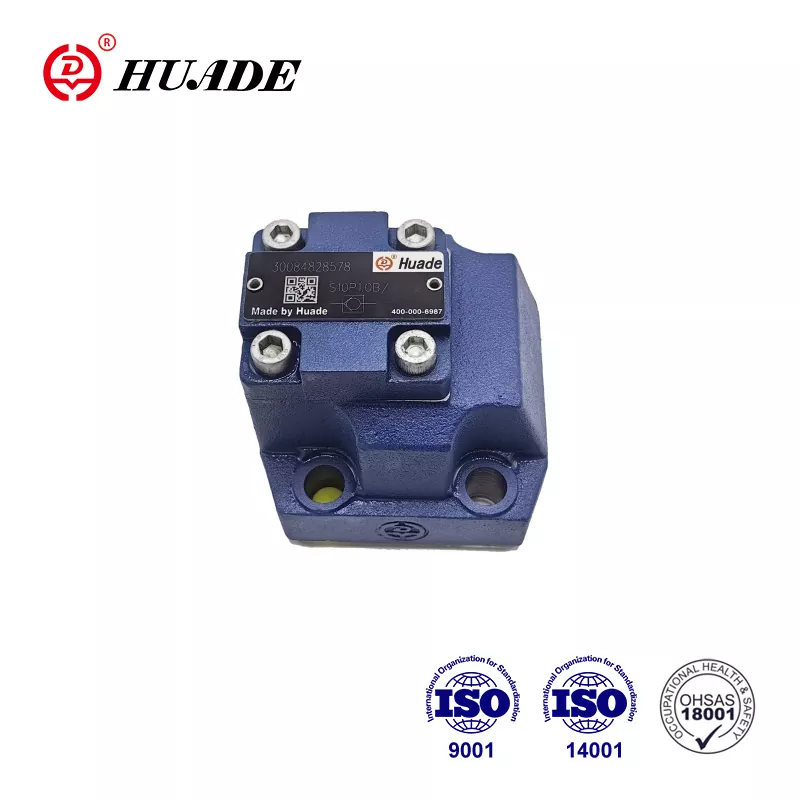

Check Valve S30P

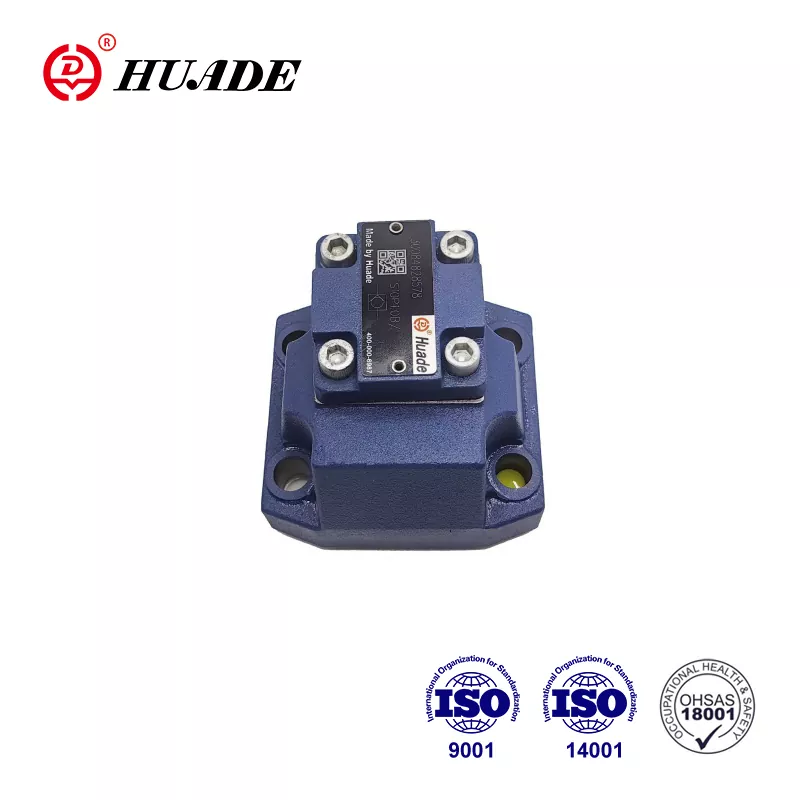

Check Valve S30P - Image 2

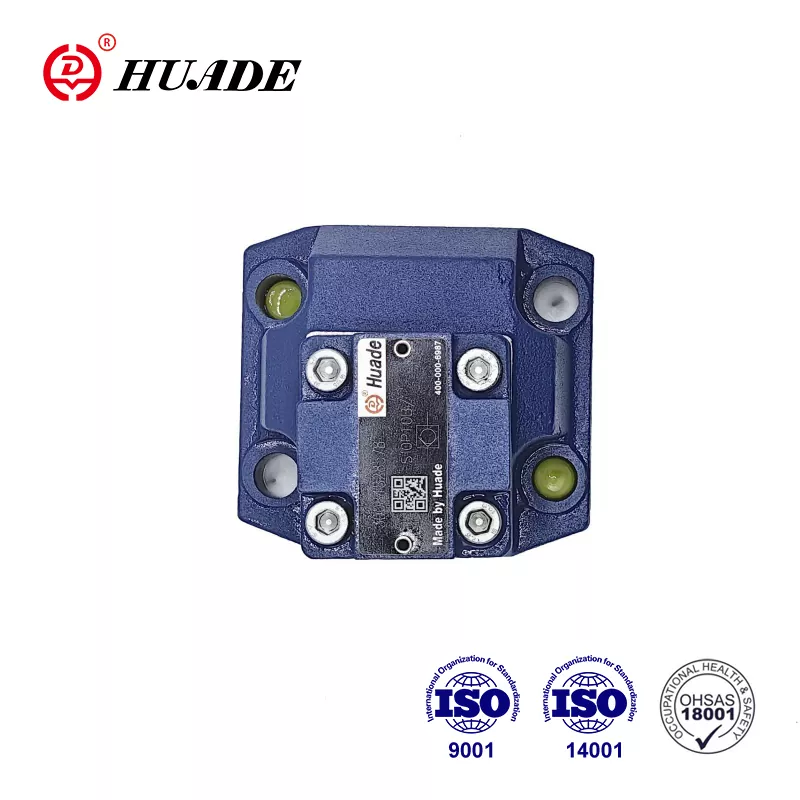

Check Valve S30P - Image 3
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth CHECK-VALVE-S30P equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Subplate mounting, leakage-free closure, Rexroth-compatible design
• Specifications: Max pressure 31.5MPa, flow up to 450L/min, temperature -30~+80℃
• Applications: Pump outlet back pressure valve, bypass valve in hydraulic systems

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Huade® top quality check valve S30P can completely replace the same series offered by Rexroth due to twice cooperation with Rexroth. The price of this check valve is more affordable. The factory has passed ISO9001,ISO14001, and ISO45001. Products of check valve S30P are packaged in standard cartons to prevent collision. Huade® check valve S30P has always come up to the international standards. Huade® directional valves are widely used in engineering and construction machinery, metallurgy, machine tools, environmental protection, shipbuilding, aerospace, rail transit, petroleum and petrochemical, military industry and other fields. It is a well-know national brand in China.

Pressure fluid temperature range（℃）

Viscosity range                          (mm2/s)

Max.operating pressure              (Mpa)

Cracking pressure                      (Mpa)

Maximum flow                          (L/min)

Key Features

  • For subplate mounting connection
  • Leakage-free closure in one direction
  • Various cracking pressure, optional

Industrial Applications

  • The check valve S30P is mainly used at the outlet of the pump as a back pressure valve and bypass valve.
  • This check valve S30P is mounting subplate connection, which can be used in various industrial environment. It has the task of, preferably closing a flow leak free in one direction and to permit free flow in the opposite direction. The stroke of the poppet, which is guided on its outside diameter, is limited by a mechanical stop. The built-in compression spring supports the closing movement. Furthermore the compression spring holds the poppet in the closed position even when there is no flow through the valve.
  • Symbol
  • Structure diagram
  • Subplate mounting

Technical Parameters

Mechanical ratings and operating limits for the Check Valve S30P:

Parameter / Dimension Name Value / Rating Specification
Pressure fluid mineral oils or phosphate ester
Pressure fluid temperature range（℃） -30～+80
Viscosity range                          (mm2/s) 2.8~500
Max.operating pressure              (Mpa) 31.5
Cracking pressure                      (Mpa) See characteristic curves
Maximum flow                          (L/min) up to 450L/min
