Check Valve Rexroth Interchangeable

Check Valve S20P

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock

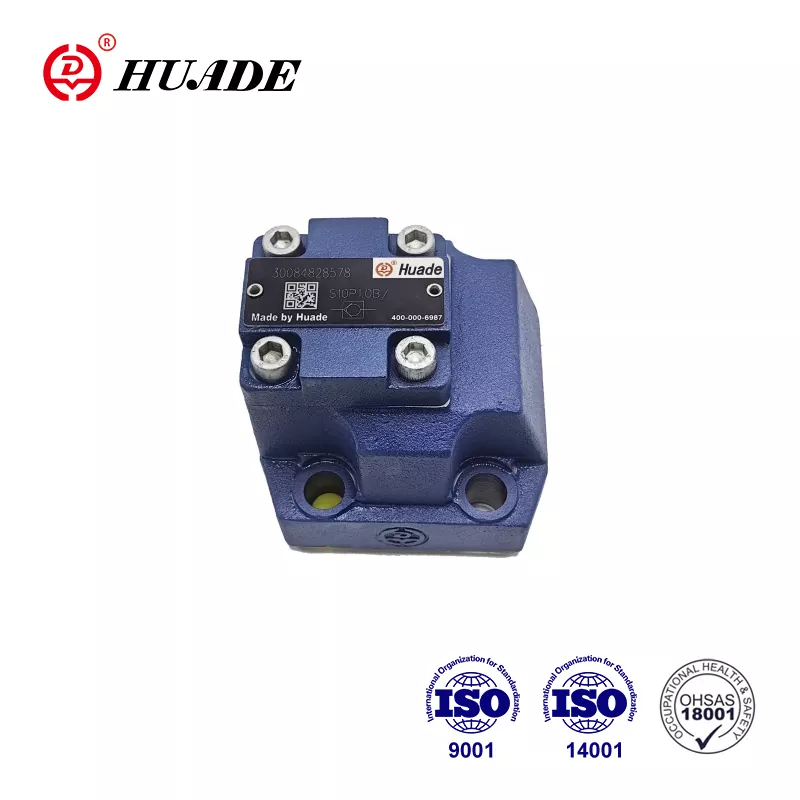

Check Valve S20P

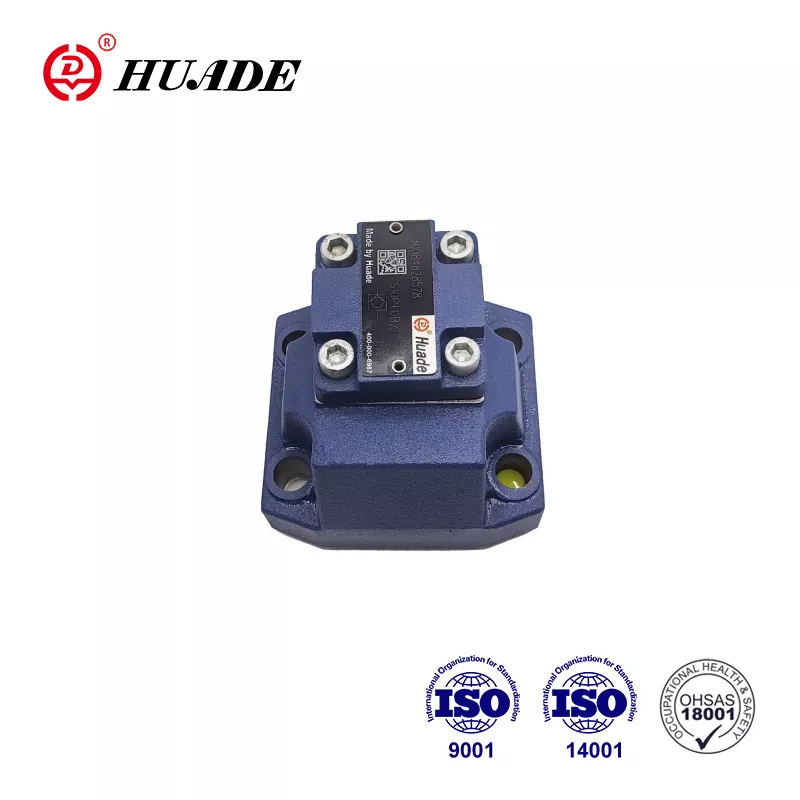

Check Valve S20P - Image 2

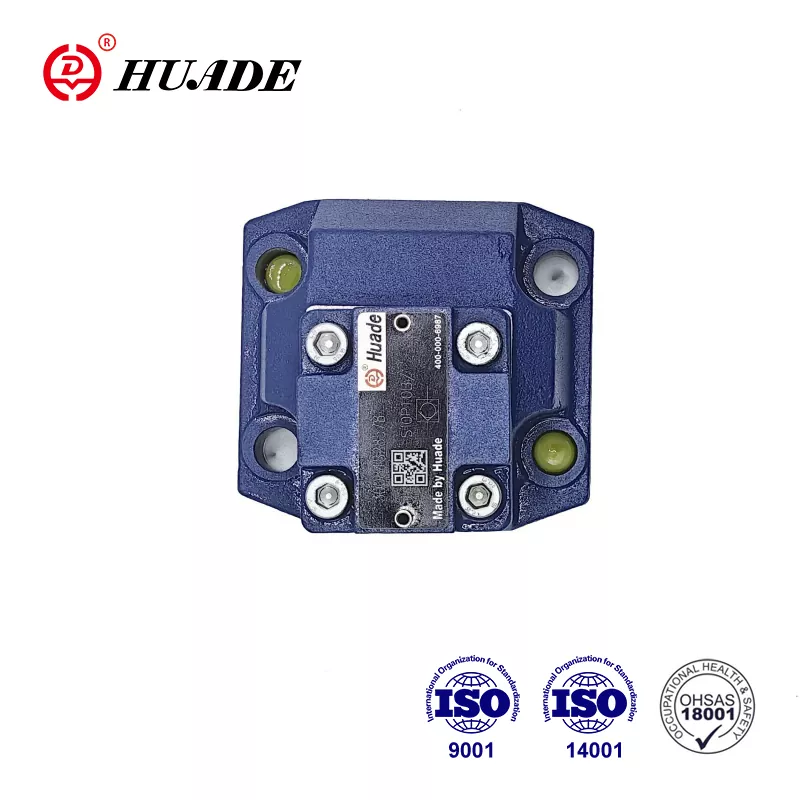

Check Valve S20P - Image 3
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth CHECK-VALVE-S20P equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Leakage-free closure, subplate mounting, various cracking pressures available
• Specifications: Max pressure 31.5MPa, flow up to 450L/min, temperature -30~+80℃
• Applications: Pump outlet back pressure valve, bypass valve, industrial hydraulic systemsRetryClaude can make mistakes. Please double-check responses.

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Huade® high performance check valve S20P with a relative lower price, which can completely replace hydraulic products offered by Rexroth. All hydraulic check valve have a one-year warranty. The factory has passed ISO9001,ISO14001, and ISO45001. Each check valve S20P are packaged in vacuum plastic packaging and standard cartons to prevent water intrusion and collision. Huade® hydraulic check valves are competitive with well-know products with good quality and lower price. It is more advanced in technology and more durable than the similar products in China.

Pressure fluid temperature range（℃）

Viscosity range                          (mm2/s)

Max.operating pressure              (Mpa)

Cracking pressure                      (Mpa)

Maximum flow                          (L/min)

Key Features

  • For subplate mounting connection
  • Leakage-free closure in one direction
  • Various cracking pressure, optional

Industrial Applications

  • The check valve S20P is mainly used at the outlet of the pump as a back pressure valve and bypass valve.
  • This check valve S20P is one mounting subplate type of check valve S, which can be used in various high pressure industrial environment. It has the task of, preferably closing a flow leak free in one direction and to permit free flow in the opposite direction. The stroke of the poppet, which is guided on its outside diameter, is limited by a mechanical stop. The built-in compression spring supports the closing movement. Furthermore the compression spring holds the poppet in the closed position even when there is no flow through the valve.
  • Symbol
  • Structure diagram
  • Subplate mounting

Technical Parameters

Mechanical ratings and operating limits for the Check Valve S20P:

Parameter / Dimension Name Value / Rating Specification
Pressure fluid mineral oils or phosphate ester
Pressure fluid temperature range（℃） -30～+80
Viscosity range                          (mm2/s) 2.8~500
Max.operating pressure              (Mpa) 31.5
Cracking pressure                      (Mpa) See characteristic curves
Maximum flow                          (L/min) up to 450L/min
