Imagine you are driving down the highway, and suddenly traffic stops. You slam on the brakes. Instead of stopping straight, your car's rear end swings out violently, trying to pass the front end. That terrifying spin is exactly what a Brake Proportioning Valve is designed to prevent.
If you are restoring a classic muscle car, converting drum brakes to discs, or just trying to figure out why your brake warning light is on, you need to understand this small but critical valve. As a brake system engineer, let me walk you through what it does, how it fails, and whether you need an adjustable one.
What Does a Proportioning Valve Actually Do?
Think of your car's braking system like water pipes in a house.
- The Master Cylinder is the main water pump.
- The Proportioning Valve is a flow restrictor (a bottleneck) installed specifically for the rear brakes.
The Physics: Why We Limit the Rear Brakes
When you hit the brakes, the nose of your car dives down, and the rear lifts up. This is called Weight Transfer.
- Front Wheels: Get heavy and gain grip (Traction).
- Rear Wheels: Get light and lose grip.
If you send the same hydraulic pressure to the light rear wheels as you do to the heavy front wheels, the rear tires will lock up instantly. A locked rear wheel has zero lateral grip, meaning your car will spin out of control.
The Solution: The proportioning valve sits in the fluid line to the rear brakes. It allows full pressure during gentle stops but reduces (limits) the pressure rise to the rear brakes during a panic stop.
5 Symptoms of a Bad Proportioning Valve
How do you know if yours is failing? Here are the classic signs:
- Rear Wheel Lockup (The #1 Sign): If your rear tires screech and slide even during moderate braking (especially on wet roads), the valve is stuck "Open".
- Nose Dives Excessively: If the valve is stuck "Closed," rear brakes do no work, forcing the front suspension to compress violently.
- Rust/Leaking: Internal rust on older iron/brass valves can cause fluid bypass.
- "Mushy" Brake Pedal: Air trapped inside the valve (common after master cylinder changes).
- Dashboard Warning Light: On pre-ABS cars, uneven pressure trips the red BRAKE light switch.
The "Combination Valve": A Common Confusion Point
On most American cars from the 70s to the 90s (GM, Ford, Jeep), you won't see a standalone proportioning valve. Instead, you see a brass block with multiple lines. This is a Combination Valve. It combines three jobs:
- Metering Valve: Delays front disc engagement slightly.
- Pressure Differential Switch: Triggers the warning light if a line bursts.
- Proportioning Valve: Limits rear pressure.
You cannot "adjust" a standard factory combination valve. If it fails, you must replace the whole unit.
Upgrade Guide: Do You Need an Adjustable Valve?
This is a huge topic for the Car Modification community.
Verdict: Stick to the OEM valve. It is calibrated specifically for your car's weight and wheelbase.
Verdict: You MUST change the valve. Drum brakes require low pressure; discs require high pressure. Keeping the old valve will cause rear brakes to drag or fail.

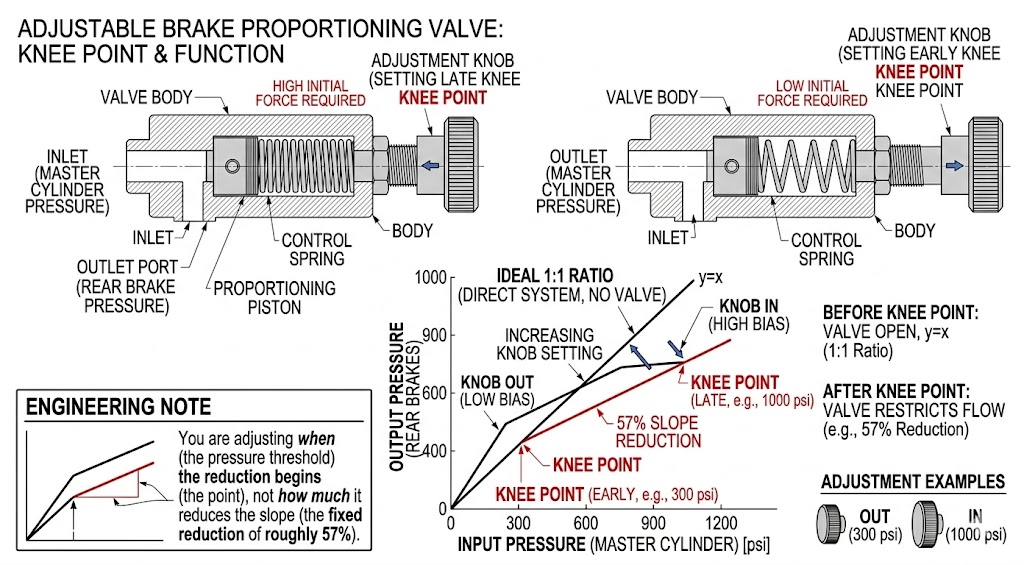

Verdict: Get an Adjustable Proportioning Valve (e.g., Wilwood). Use the knob to fine-tune the "Knee Point" until front wheels lock up just before rears.
Summary Table: Troubleshooting at a Glance
| Symptom | Probable Valve Issue | Fix |
|---|---|---|
| Rear wheels lock up easily | Valve Stuck OPEN | Replace Valve |
| Car takes too long to stop | Valve Stuck CLOSED | Replace Valve |
| Brake Light ON (Fluid OK) | Pressure Switch Tripped | Reset Combination Valve |
| Recent Disc Conversion | Wrong Valve Type | Install Adjustable Valve |
Never bypass a proportioning valve unless you are building a dedicated drift car where rear lockup is desired. For street use, it is a critical safety component.
