Directional Control Valve Rexroth Interchangeable

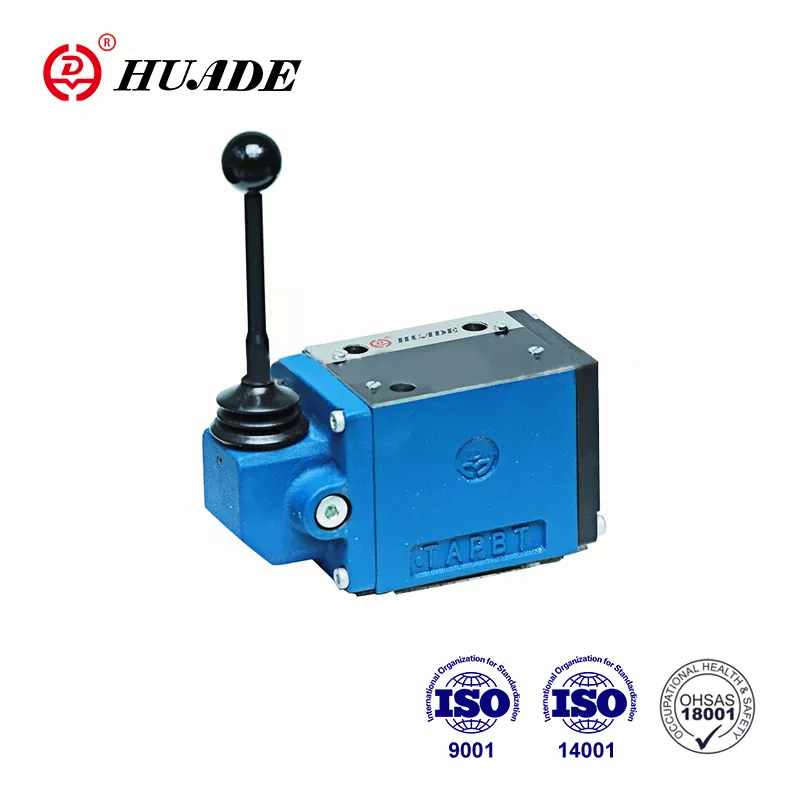

Directional Control Valve WMM 10

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock
Directional Control Valve WMM 10
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth DIRECTIONAL-CONTROL-VALVE-WMM-10 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Hand lever actuated, spring return/detent optional, Rexroth-compatible design with superior reliability
• Specifications: Size 10, max pressure 31.5MPa (A,B,P ports), max flow 120L/min, subplate mounting
• Applications: Construction machinery, chemical equipment, light industrial machinery, locomotives

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Huade is a Chinese well-known state-owned enterprise specializing in hydraulic control technology. Huade® WMM 10 valves can completely replace the same series offered by Rexroth due to two long-term cooperation experiences with Rexroth. It is competitive with good quality and lower price.This directional valve enjoys free maintenance service within the one-year warranty period. The factory has passed ISO9001, ISO14001, and OH SAS18001. Huade's hydraulic valves are widely used in the military industry and other fields due to the superior performance.

Technical data(For applications outside these parameters. please consult us!)

for symbol Q, 6% of nominal cross section

for symbol W, 3% of nominal cross section

Mineral oils(for NBR seal) or  phosphate ester(for FPM seal)

Pressure fluid temperature range（℃）

Key Features

  • Direct actuated directional spool valve with hand lever
  • With spring return or detent, optional
  • For subplate mounting
  • Porting pattern to Din 24 340 form A, ISO 4401 and CETOP - RP 121H

Industrial Applications

  • Directional valve type WMM 10 adopts plate connection, which has the advantages of small size, large flow capacity and good reliability compared with other domestic series valves. It is widely used in construction machinery, chemical machinery, light industrial machinery, locomotives and other industries.
  • The type WMM 10 valves are hand lever actuated directional spool valves. They control the start, stop and direction of a flow.
  • The directional valves basically comprise of a housing①, hand lever②, control pool ③, as well as one or two return springs④. In the unoperated condition the control spool③ is held in the neutral or its initial position by the return springs ④. The control spool③ is actuated via the hand lever ②, this acts via a joint and the pin directly onto the control spool ③. The spool is thereby moved out of its rest position into its required switched position. After the hand lever ② has been returned to the switched position zero, the spool ③ is returned to the neutral position via the return springs ④.
  • Type 4WMM../F.. (with detent)
  • These valves are either 2 or 3 position directional control valves which are fitted with a detent, which operates in all of the switched positions
  • Cutaway view of type WMM10...30B
  • Cartridge throttle

Technical Parameters

Mechanical ratings and operating limits for the Directional Control Valve WMM 10:

Parameter / Dimension Name Value / Rating Specification
Technical data(For applications outside these parameters. please consult us!) Technical data(For applications outside these parameters. please consult us!)
Size 10
Maximum working pressure - port A. B. P (㎫) to 31.5
Maximum working pressure - port T (㎫) to 15
Maximum flow (L/min) to 120
Flow cross section (control position 0) for symbol W, 3% of nominal cross section
Pressure fluid Mineral oils(for NBR seal) or  phosphate ester(for FPM seal)
Pressure fluid temperature range（℃） -30～+80
Viscosity range   (mm2/s) 2.8 to 500
Weight (kg) approx.3.3
Control power on handle (N) without detent approx.20~27
