Axial piston fixed motor A2F is axial piston unit of bent axis design with fixed displacement, for use as either pump of motor in hydrostatic drivers, in open or closed circuit. If A2F operated as a pump, the flow is proportional to the drive speed and displacement. If A2F operated as a motor, the output speed is proportional to the swept volume and inversely proportional to displacement. The output torque of A2F increases with the pressure drop between the high and low pressure sides.
| Inlet Operating Pressure | |
| Pump | |
| Minimum pressure at ports A or B | Pabs=0.08MPa |
| Motor | |
| Pressure at port A or B | |
| Nominal pressure | PN=35MPa |
| Peak pressure | Pmax=40MPa |
| Outlet Operating Pressure | |
| Pump | |
| Nominal pressure | PN=35MPa |
| Peak pressure | Pmax=40MPa |
| Maximum permissible case pressure(at port T) | Pabs=0.2MPa |
| Oil Temperature Range | |
| tmin | -25℃ |
| tmax | +80℃ |
| Viscosity Range | |
| Vmin | 10mm2/s |
| Vmax | 1000mm2/s |
Product Feature And Application of Axial Piston Fixed Motor A2F
Features:
▪High performance rotary group with well-proven spherical control area with the advantages: self-centering low peripheral speed, high efficiency.
▪Robust rolling bearings endure long service life
▪Drive shaft capable of adopting radial loading
▪lSO mounting flange. uniform for fixed displacement
▪Pumps/motors and variable motors from size 55
▪May be used in conjunction with fire--resistant fluids.
▪Low noises generation.
Application:
A2F fixed displacement motor has a relatively low cost and is widely used in forklifts, machine tools, metallurgical equipment, harvesters, anchor winches, etc.

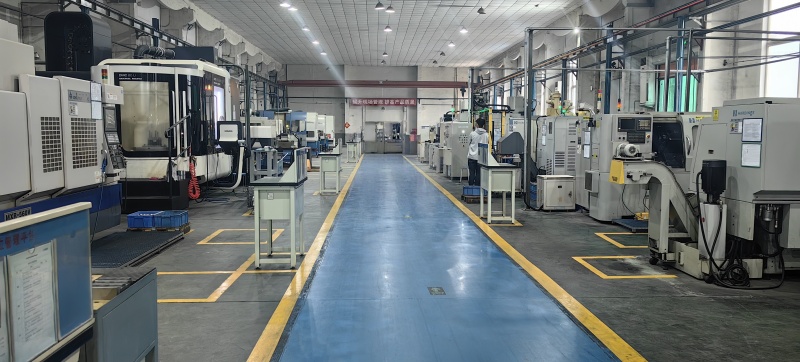

Production workshop
